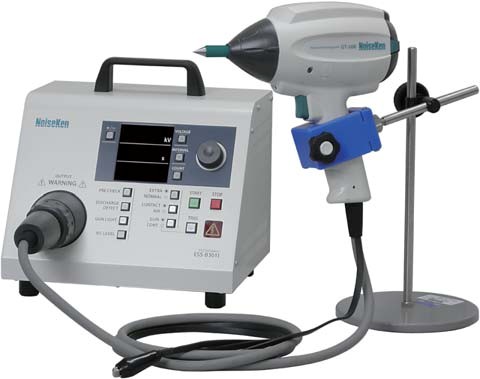

Simulator descarcari electrostatice ESD NoiseKen ESS-B3011/ESS-L1611

• Pulse 5a and Pulse 5b generating unit
• A built-in 60V/30A Coupling Network allows independent operation.
• Capacitive - resistive (inductive) discharge circuitry in strict conformity with the standard and with the actual car environment.
• Equipped with a programmable clip circuit that can produce Pulse 5b clipped waveform in steps of 0.1V without externally attaching a zener diode.
• Pulse 5b clipped waveform is pre-eminent in smoothness.

• "Output voltage 15kV, current 7500A" which can conduct breakdown resistibility test
• "50% reduction of the output interval" which can drastically reduce the test time
• "Touch-panel" adopted for the easy test setting
• "Multi-languages" for the easy operation processing available
• "Indicator" which is linked with the test setting equipped
• PC control available with the optional software
• "Emergency stop" & "Interlock terminal" which secure the test operator equipped



• VDS-1007 : 1kVA Power
• VDS-2007 : 2kVA Power
• Enable to enrich EMC preliminary tests with the remote control as an AC stabilizing power source
• Enable IEC61000-4-11/13/14/28 precompliant tests
• Usable to be power source for IEC61000-3-2-2 precompliant measurement



• Conforming to IEC 61000-4-11
• Fully compliant with all the test generator requirements of IEC standard.
• One unit solution for dip, swell, interruption and variation tests up to 16A 290V single phase AC
• Interruption test up to 16A 125V DC (*)
• Two motor-driven transformers approach enables switching between any voltages (*)
• Preset IEC test levels 0%/40%/70%/80% plus additional 120%



• Lightning Surge Simulator conforming to IEC61000-4-5 ed2 Standard
• Ring wave conforming to ANSI/IEEE C62.45 available
• Max. voltage 6.6kV output focusing on the practical use
• Monitor terminal standard equipped so as for easy waveform pre-checking
• Interlock built-in as the emergency stop function for safety



• Provides an amplitude versus frequency plot for each antenna probe position and field intensity distribution map by a single scan
• Electric and magnetic fields are separately detected
• 3D graphical representation and zoom capability for a given area
• Comparison before and after a modification or improvement
• Scanning by a single antenna probe to minimize error between each measurement point
• 3GHz maximum frequency response (option)
• Standard included three kinds of antenna probes (Probe A, Probe B and Probe C)



• INS-AX2-220/250 : 0.01 ~ 2.00kV±10% at 0.01kV step Pulse output voltage
• INS-AX2-420/450 : 0.01 ~ 4.00kV±10% at 0.01kV step Pulse output voltage
• Floating output
• 8 pulse widths installed: 10ns, 50ns, 100ns, 200ns, 400ns, 500ns, 800ns and 1000ns
• Internal switchable terminators
• Easily changeable and safety-interlocked outlet panel (EUT interface)
• 3 channels EUT fail input



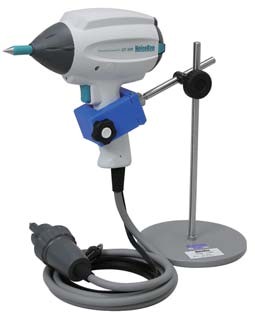

• 0.2 to 30.0kV +/-5% (30.5kV Maximum)
• 0.2 to 10kV: 0.05V step, 10.0 to 30.0kV: 0.1kV step
• EN/IEC 61000-4-2 Ed2 Compliant
• ISO 10605 Ed2 Compliant
• Pre-test
• Ten-key & Rotary knob to ease the setting
• Infra-red Remote Controller to allow remote Generator setting



• Pulse 2b and Pulse 4 generating unit
• +-60V 10A DC - 150kHz built-In bipolar amplifier
• Functions as the DUT power supply for testing with the other pulses
• Upgradeable to 15A or 30A by use of an optional external power supply

• 0.20kV~30.0kV Output voltage range
• Fully programmable menu-driven simulator providing three operation modes: IEC standard, Manual and Sequence
• 5.7-inch color LCD for easy setting and good visibility
• Unique shape for the operator's easy access to the controls and displays even when the unit is put on the floor level (ground plane)
• Communications with PC through the optic serial interface
• wide variety of the dedicated options
