Simulator descarcare electrostatica ESD NoiseKen ESS-2000AX

Cod: NoiseKen ESS-2000AX



Brosura produs PDF, 2.36 Mb


Descriere

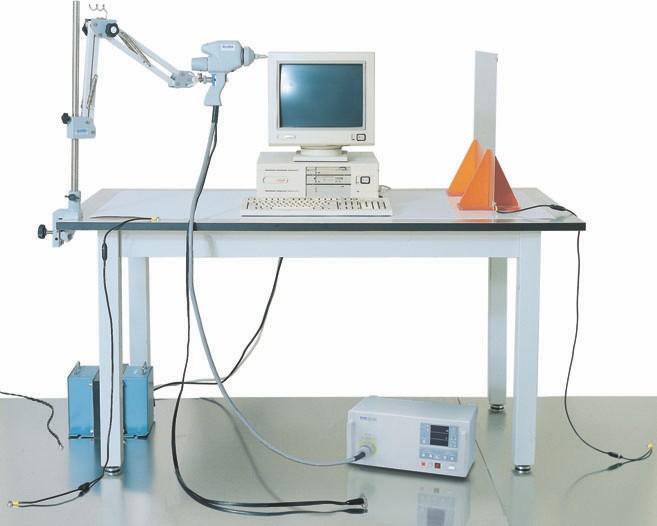

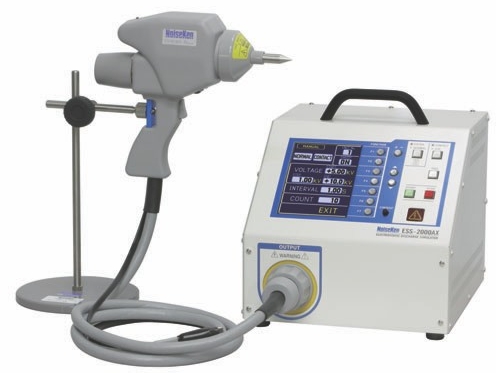

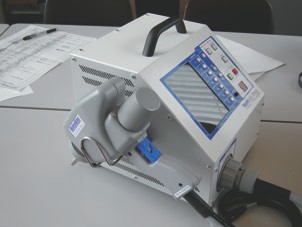

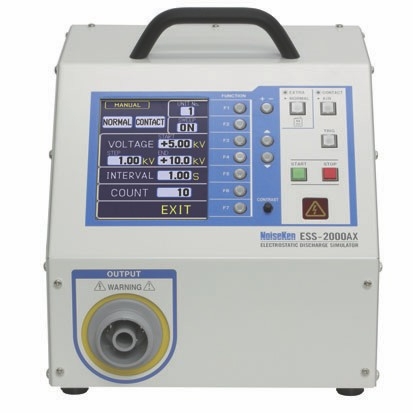

The ESS-2000AX ESD Simulator generates highly consistent, repeatable ESD pulses up to 30kV in both contact and air discharge modes.  Compliant with IEC61000-4-2 standard, the unit features a 5.7-inch display, a lightweight gun and optic serial interface.



A variety of capacitor and resistor units are available and are easily changeable within the gun.  The fully- programmable, menu-driven simulator offers three trigger modes.





  • Fully programmable menu-driven simulator providing three operation modes: IEC standard, Manual and Sequence
  • 5.7-inch color LCD for easy setting and good visibility
  • Unique shape for the operator's easy access to the controls and displays even when the unit is put on the floor level (ground plane)
  • Communications with PC through the optic serial interface
  • wide variety of the dedicated options







Item

ESS-2000AX Specifications

Output polarity

Positive or negative

Output voltage

0.20kV~30.0kV ±5%  (30.5kV max)
0.20kV~10.0kV: 0.01V step, 10.0kV~30.0kV:0.1V step

Discharge interval

Normal mode: 0.05s~600.0s ±10%
Extra mode : 1.00s~600.0s ±10%
0.05s~9.99s: 0.01s step, 10s~600.0s: 0.1s step

No. of times of discharge

1~60,000 times preset on the counter or continuous

Discharge mode

Air/contact discharge

Radiation level

Normal/Extra mode

Trigger mode

Gun trigger/main unit trigger/ external trigger

 mode

IEC standard

Contact discharge: 2.0kV, 4.0kV, 6.0kV, 8.0kV (4 voltages preset)
Air discharge: 2.0kV, 4.0kV, 8.0kV, 15.0kV (4 voltages preset)

Manual

Contact/Air discharge: 0.20kV~30.0kV
Sweep (automatic voltage ramping) available
Up to 99 units (test settings) storable

Sequence

 Seamless run of the selected test sequence (made of any combination of 99 units in Manual mode)
No. of units per one test sequence: up to 30 units
No. of test sequences: up to 20

Warning lamp

Lights up while the HV circuitry is on
Blinks while discharges are in progress

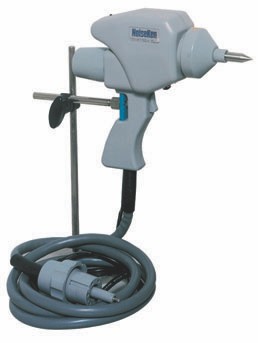

Discharge gun

TC-815R

Charging resistance

10M ohm(53 M ohm for combination with TC-815R discharge gun)

AUX connector

D-SUB15 pin, female connector

Warning lamp (optional) connection
Automatic ESD Eliminator (optional) connection
External interlock input
External trigger input

Optical communication connector

Optic RS-232C for PC communication

Power supply

100~240V AC   50/60 Hz  +/-10%

Power consumption

75VA

Operating temperature and humidity

+15~+35oC,  25~75% (no condensation)

Character display

English, Chinese, Korean,  Japanese

Dimensions and weight

260 (W) X 230 (H) X 285 (D) mm (projection excluded)



Optiuni recomandate



Alte produse NOISEKEN

SISTEM MASURA EMISII RADIATII ELECTROMAGNETICE PLACI PCB NOISEKEN EPS-6000

• Measurable up to 8GHz in the frequency range
• 4 axes (X, Y, Z, ?) measurements with minute step minimum 0.1m realized
• Equivalent distance measurement to parts on PCBs even the heights are different
• Composite figure of photo of the measured PCB and the measurement data realized
• Rich magnetic field probes in the figures, sizes and Vertical/Horizontal directions
• Versatile display for the measurement data as 2 dimensions, 3 dimension, and equiangular line realized


SURSA-SIMULATOR CRESTERI/ CADERI DE TENSIUNE NOISEKEN VDS-1007/ 2007

• VDS-1007 : 1kVA Power
• VDS-2007 : 2kVA Power
• Enable to enrich EMC preliminary tests with the remote control as an AC stabilizing power source
• Enable IEC61000-4-11/13/14/28 precompliant tests
• Usable to be power source for IEC61000-3-2-2 precompliant measurement


SIMULATOR DESCARCARE ELECTROSTATICA CIRCUITE SEMICONDUCTOARE ESD NOISEKEN ESS-6002/ 6008

• ESS-6002 Output voltage: 10V ~2.0kV ±10% (1V step)
• ESS-6008 Output voltage: 100V ~ 8.0 kV±10% (10V step)
• A simple probe stand and test fixture plus a pair of miniature test leads
• Narrow pitch DUT can be tested in semi-automatic manner
• Each probe has a coaxial interface with an external measuring instrument.


SIMULATOR FORME DE UNDA CRESTERI SI CADERI DE TENSIUNE NOISEKEN VDS-2002

• Conforming to IEC 61000-4-11
• Fully compliant with all the test generator requirements of IEC standard.
• One unit solution for dip, swell, interruption and variation tests up to 16A 290V single phase AC
• Interruption test up to 16A 125V DC (*)
• Two motor-driven transformers approach enables switching between any voltages (*)
• Preset IEC test levels 0%/40%/70%/80% plus additional 120%


SIMULATOR IMPULSURI INALTA TENSIUNE ECHIPAMENTE ILUMINAT NOISEKEN LSS-F02

• "Output voltage 15kV, current 7500A" which can conduct breakdown resistibility test
• "50% reduction of the output interval" which can drastically reduce the test time
• "Touch-panel" adopted for the easy test setting
• "Multi-languages" for the easy operation processing available
• "Indicator" which is linked with the test setting equipped
• PC control available with the optional software
• "Emergency stop" & "Interlock terminal" which secure the test operator equipped


GENERATOR IMPULSURI 1, 2A SIMULARE TRANIZITORII TESTARE EMC AUTOMOTIVE NOISEKEN ISS-7610

• Pulse 1 and Pulse 2a generating unit
• A built-in 60V/30A Coupling Network allows independent operation.
• Wide variety of selections of the output resistances Ri and Pulse Widths td and their combinations

SIMULATOR IMPULSURI ZGOMOT TESTARE EMC NOISEKEN INS-AX2

• INS-AX2-220/250 : 0.01 ~ 2.00kV±10% at 0.01kV step Pulse output voltage
• INS-AX2-420/450 : 0.01 ~ 4.00kV±10% at 0.01kV step Pulse output voltage
• Floating output
• 8 pulse widths installed: 10ns, 50ns, 100ns, 200ns, 400ns, 500ns, 800ns and 1000ns
• Internal switchable terminators
• Easily changeable and safety-interlocked outlet panel (EUT interface)
• 3 channels EUT fail input


SIMULATOR DESCARCARI ELECTROSTATICE ESD NOISEKEN ESS-B3011/ESS-L1611

• ESS-B3011 : 0.2 to 30.0kV
• ESS-L1611 : 0.2 to 16.0kV
• EN/IEC 61000-4-2 Ed2 Compliant (B3011/L1611)
• ISO 10605 Ed2 Compliant (B3011/L1611)
• 3 pre-checking function taking the confirmable test into the account (B3011/L1611)
• Discharge detecting function to realize the air-discharge confirmation (B3011/L1611)
• Lightest Discharge Gun in the market to lighten the continuous operation (GT-30R)


GENERATOR IMPULSURI 3A, 3B SIMULARE TRANIZITORII TESTARE EMC AUTOMOTIVE NOISEKEN ISS-7630

• Pulse 3a and Pulse 3b generating unit
• A built-in 60V/30A Coupling Network allows independent operation.
• <3.5ns rise time pulse available
• Runs in pulse repetition frequencies sweep mode from 1 kHz to 100 kHz (ISS-7601 software required)

SIMULATOR DESCARCARE ELECTROSTATICA ESD NOISEKEN ESS-2000AX

• 0.20kV~30.0kV Output voltage range
• Fully programmable menu-driven simulator providing three operation modes: IEC standard, Manual and Sequence
• 5.7-inch color LCD for easy setting and good visibility
• Unique shape for the operator's easy access to the controls and displays even when the unit is put on the floor level (ground plane)
• Communications with PC through the optic serial interface
• wide variety of the dedicated options
