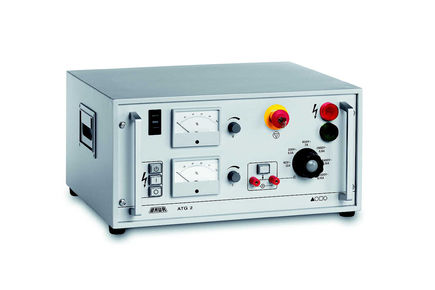

BAUR ATG 2 Burn down transformer

Cod: BAUR ATG 2




Brosura produs PDF, 0.25 Mb

Descriere

The ATG 2 burn down transformer is used for impedance reduction of cable faults in low- and medium-voltage networks. The short-circuit proof 2300 VA stray field transformer delivers a maximum voltage of 10 kV and is housed in a fully enclosed 19½ housing.



Features:

  • Portable device for changing the fault resistance
  • Useful for cables that are difficult to access
  • Proven methods for complicated faults
  • Independent current and voltage control on each burning level
