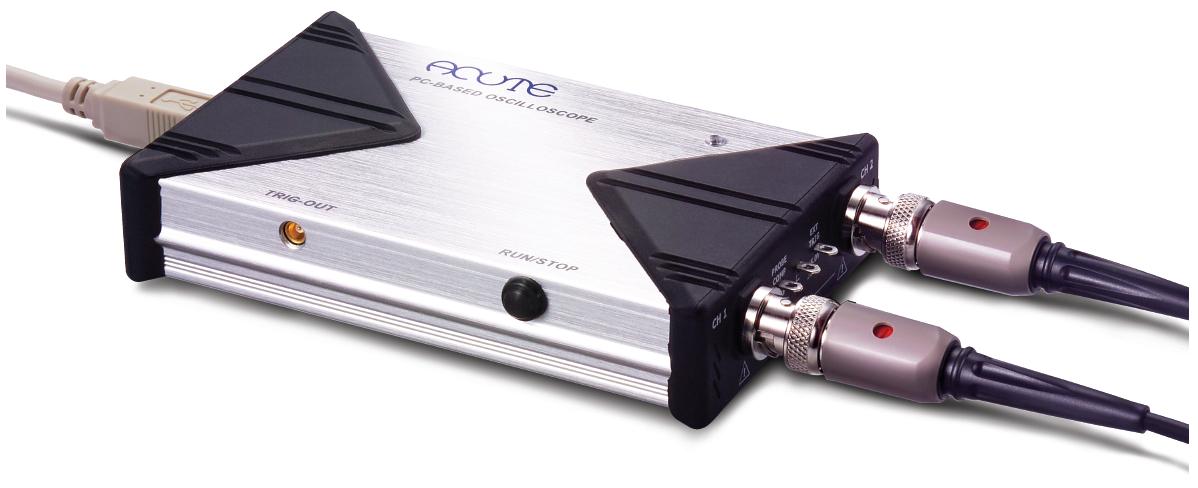

Osciloscop USB virtual 2 x 100 MHz Acute DS-1002

Model

Sample Rate

Bandwidth

Memory Depth

Channel

Trigger

DS-1002

100MS/s

100MHz

64 K

2

-

DS-1102

200MS/s

200MHz

64 K

2

-

DS-1202

200MS/s

200MHz

512 K

2

NTSC, PAL, SECAM

DS-1302

200MS/s

200MHz

2 M

2

NTSC, PAL, SECAM

Specifications

DS-1302 DS-1202  DS-1102 DS-1002

Acquistion

Mode

Real-time sampling, Equivalent sampling, Roll mode, Average, Envelope

Input

Input Coupling

AC, DC, GND

Input Impedance

1Ω�±1% // 21pF�±5%

Max. Input Voltage

42Vpk (DC + AC peak)

Vertical

Channel

DS-1002.DS-1102. DS-1202. DS-1302: allows to stack up to max. 6 channels

Vertical Resolution

9 bits /channel @ 5mV/DIV- 10V/DIV (8 bits @ 2mV/DIV)

Sensitivity

DS-1302.DS-1202.DS-1102: DC to 200MHz DS-1002: DC to 100MHz

Bandwidth

DC to 200MHz/DC to 200MHz/DC to 100MHz

BW Limit

Approx. 20MHz

Range

8 divisions

Offset Level

�±4 divisions

Offset Increments

0.1 division

DC accuracy

�±3%

Time Base

Sampling Rate

DS-1302.DS-1202.DS-1102: Real-time sampling: 200MS/s @ 1Ch, 100MS/s @2Ch
(Single Shot Equivalent sampling: 5GS/s (Repetitive)
DS-1002: Real-time sampling: 100MS/s @ 1Ch, 50MS/
s @2Ch (Single Shot Equivalent sampling: 2.5GS/s (Repetitive)

Time Base Range

2ns/DIV to 10s/DIV (as 2- 5-10 step)

Accuracy

100ppm

Range

10 Divisions

Pre/Post Trigger

+/-64k points

Time Resolution

200ps

Record Length

DS-1102.DS-1002: 2k points/channel to 64k points/channel
DS-1202: 2k points/channel to 512k points/channel
DS-1302: 2k points/channel to 2m points/channel
ROLL mode: 32k points/channel (Log Length = Hard Disk limitation)

Trigger

Type

DS-1302.DS-1202.DS-1102: Rising, Falling, Delay-Trigger, TV-Trigger
DS-1002: no TV Trigger)

Mode

Auto, Normal and Single
(With RUN/STOP hardware button on the DSO device)

Source

CH1, CH2, Ext-Trig

Coupling

DC, HF rejection

Sensitivity

DC to 25MHz = 0.35div or 3.5mv;
25MHz to Max. = 1.5div or 15mv

Trigger Level

�±4 divisions

Trigger Increments

0.1 division

Measurement and Processing

Special function

Autoset, Monitor from Internet (TCP/IP)

Measurement

Vp-p, Vmax, Vmin, Vamp, Vtop, Vbase, Vupper, Vmiddle, Vlower,
Vmean, Vrms, Positive overshoot, Negative overshoot, Period,
Frequency, Pulse width

Cursor

Time difference, Voltage difference

Math

Add, Sub, Multiplication, Division

FFT

Rectangular (Vertical scale: dbV RMS, Linear RMS)

Export Data

WORD, EXCEL, CSV, TEXT, HTML, Clipboard, Hardcopy, Preview

Trigger Input/Output

EXT-TRIG Input Limitation

TTL Level

EXT-TRIG Acknowledge Level

1.6V to 5V, rising/falling edge

EXT-TRIG Acknowledge Freq.

">10ns" and ">0.1 TIME/DIV"

TRIG-OUT

3.3v pulse, 20ns delay after trigger occurring
(only for DS-1202 stack function)

Calibration Output

Level

Approx. 3.3V

Frequency

1kHz �±0.5%

Environment

Operation

0� to +50�

Storage

-10� to +60�

Physical

Interface

USB2.0 (USB1.1 compatible)

Power

USB2.0 (USB1.1 compatible)

Dimension (device only)

135/80/26 mm3

Weight (device only)

230 g

Accessories

Probes

DS-1302.DS-1202.DS-1102: 250MHz probe (1x/10x) x2
DS-1002: 100MHz probe (1x/10x) x2

Others
