Model	Sample Rate	Memory	Bus Trigger	Protocol Analyzer
TL3017E	1GS/s	16Mb	I²C	I²C
TL3134E	1GS/s	1Gb	I	I
TL3134B	2GS/s	1Gb	I, II	I, II
TL3234B+	2GS/s	8Gb	I, II, III	I, II, III

• Bus Trigger I : I²C, SPI, UART, USB PD3.0

• Bus Trigger II : BiSS-C, CAN2.0, DALI, I²S, LIN2.2, LPC, MDIO, Modbus, PWM, SVID, ...

• Bus Trigger III : eMMC 4.5, eSPI, MIPI SPMI 2.0, NAND Flash, SD 3.0, Serial Flash (SPI NAND)

• Protocol Analyzer I : I²C, SPI, UART, USB PD3.0

• Protocol Analyzer II : BiSS-C, CAN2.0, DALI, I²S, LIN2.2, MDIO, PWM, SVID, USB1.1

• Protocol Analyzer III : eSPI, SD3.0 (excluding UHS-I)

• Bus Decode : BiSS-C, CAN, eMMC5.0, eSPI, I²C, I²S, NAND Flash, Profibus, SD3.0, SPI,

SVID, UART, USB1.1, USB PD3.0... (80+)

1-Wire, 3-Wire, 7-Segment, A/D Mux Flash, AccMeter, ADC, APML, BiSS-C, BSD, CAN 2.0, Close Caption,

DALI, DMX512, DP Aux, EDID, eMMC 5.1/MMC, eSPI, FlexRay, HDMI CEC, HD Audio, HDLC, HDQ,

HID over I²C, I²C, I²C EEPROM, I²S, I80, IDE, ITU656, IrDA, JTAG, LCD1602, LIN2.2, Line Encoding,

Line Decoding,Lissajous, LPC, LPT, M-Bus, Math, MDIO, MHL CBUS, Microwire, MII, MIPI DSI, MIPI RFFE,

MIPI SPMI 2.0, Modbus, NAND Flash, NEC IR, PECI, PMBus, Profibus, PS/2, PWM, QI, RGB Interface, RC-5,

RC-6, SD3.0 (SDIO), Serial Flash, Serial IRQ, SGPIO, Smart Card, SMBus, SMI, S/PDIF, SPI, SPI-NAND, SSI,

ST7669, SWD, SWP, SVI2, SVID, UART, UNI/O, USB 1.1, USB PD 3.0, Wiegand, ..

Alte produse ACUTE

OSCILOSCOP USB PENTRU CALCULATOR 2 X 200 MHZ ACUTE DS-1202

• 200 MHz Bandwidth
• 2 Channels (allows to stack up to max. 6 channels)
• 200MS/s Sample Rate
• 9 bit Vertical Resolution
• 512 K Memory Depth

GENERATOR SEMNALE DIGITALE LOGICE 16+4 CANALE ACUTE PKPG2000

• 200M bits data rate
• 200 MHz High Speed Internal Sequential Clock Rate
• 16 channels for editable digital pattern output

ANALIZOR LOGIC SI PROTOCOL ACUTE TRAVELBUS TB1016E TB1016B TB1016B+

• PC-based, USB 3.0 interface/powered
• 200 MHz timing/state analysis
• Digital channels : 16 (Data), 1 (Clock), 2 (I²C)
• Memory : PC RAM
• Data logger
• Real time data display and post-capture waveform display
• Bus Decode : I²C, I²S, LIN2.2, SMBus, PWM, SMBus, SPI, UART, USB PD 2.0, ... (60+ decodes)

OSCILOSCOP USB PENTRU PC 2 X 200 MHZ ACUTE DS-1102

• 200 MHz Bandwidth
• 2 Channels (allows to stack up to max. 6 channels)
• 200MS/s Sample Rate
• 9 bit Vertical Resolution
• 64 K Memory Depth

GENERATOR SEMNALE DIGITALE LOGICE 50+12 CANALE ACUTE PG2050-512K

• 50+12 Channels
• 100 M bits/s Data Rate
• 512K Pattern Memory Depth
• 1.5v~5.0v (adjustable 255 Level) Output Voltage

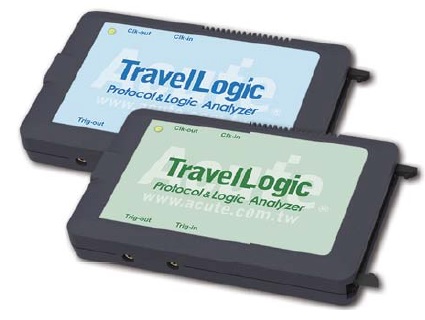

ANALIZOR LOGIC SI PROTOCOL ACUTE TRAVELLOGIC TL3017E TL3134E TL3134B TL3234B+
