Model	Timing Analysis	State Analysis	Channel	Total Sample Memory	Bus Trigger	Bus Decode
TL2136B	4GHz	200MHz	36	18M bits	I	I
TL2236B	4GHz	200MHz	36	72M bits	I	I
TL2236B+	4GHz	200MHz	36	72M bits	I, II	I, II

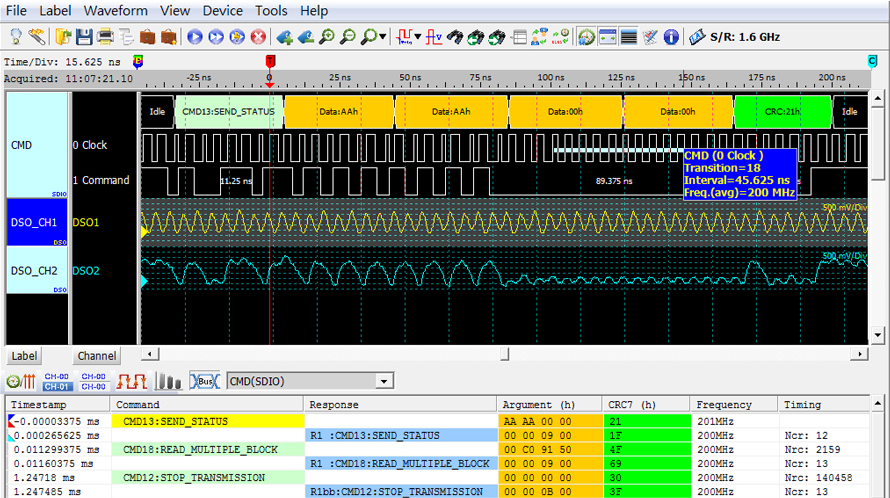

• Bus Trigger I : CAN, I²C, I²S, LPC, SMBus, SPI, SVI2, SVID, UART, USB1.1, ...

• Bus Trigger II : eMMC 4.5, eSPI, MIPI SPMI, NAND Flash, SD 3.0, Serial Flash (SPI NAND), ...

• Bus Decode I : BiSS-C, CAN, eMMC5.0, I²C, I²S, Nand Flash, ProfiBus, SD, SPI,

SVID, UART, USB1.1, ... (80+ decodes)

1-Wire, 3-Wire, 7-Segment, A/D Mux Flash, AccMeter, ADC, APML, BiSS-C, BSD, CAN, Close Caption, CEC, DALI, DMX512, DP AUX, EDID, eSPI, eMMC 5.1/MMC, FlexRay, HDLC, Line Decoding, Line Encoding, HD Audio, HDQ, HID over I²C, I²C, I²C EEPROM, I²S, I80, IDE, ITU656, IrDA, JTAG, LCD1602, LIN, Lissajous, LPC, LPT, M-Bus, Math, MDIO, MHL CBUS, Microwire, MII, MIPI RFFE, MIPI DSI, MIPI SPMI, Modbus, Nand Flash, NEC IR, PECI, PMBus, ProfiBus, PS/2, PWM, QI, RGB Interface, RC-5, RC-6, SD 3.0/SDIO 3.0, Serial Flash, Serial IRQ, SGPIO, Smart Card, SMBus, SMI, S/PDIF, SPI, SPI NAND, SSI, ST7669, SWD, SWP, SVI2, SVID, UART, UNI/O, USB 1.1, USB PD 2.0, Wiegand, ..

• Bus Decode II : MIPI DSI-HS, ...

(Signal source: Other brand DSO or LA, not TravelLogic)

System Requirements

• USB 2.0 port

• XP, Vista, Win 7, Win 8 (32 / 64 bits)

Alte produse ACUTE

GENERATOR SEMNALE DIGITALE LOGICE 16+4 CANALE ACUTE PKPG2000

• 200M bits data rate
• 200 MHz High Speed Internal Sequential Clock Rate
• 16 channels for editable digital pattern output

OSCILOSCOP USB 2 X 200MHZ ACUTE TRAVELSCOPE

• PC-based (USB2.0 interface)
• USB powered (2 USB ports needed for TS2212A)
• 2 channels (stackable up to 6 channels)
• 1 GS/s real-time sampling
• 200 MHz bandwidth
• 10K/64M points per channel

OSCILOSCOP USB PENTRU PC 2 X 200 MHZ ACUTE DS-1102

• 200 MHz Bandwidth
• 2 Channels (allows to stack up to max. 6 channels)
• 200MS/s Sample Rate
• 9 bit Vertical Resolution
• 64 K Memory Depth

ANALIZOR LOGIC SI PROTOCOL ACUTE TRAVELLOGIC TL3017E TL3134E TL3134B TL3234B+

• PC-based
• USB3.0 interface
• 17 / 34 channels
• 2 GHz timing / 200 MHz state analysis
• 8 Gb Memory
• Voltage detect : 2 sets
• Bus Decode : BiSS-C, CAN, eMMC5.0, eSPI, I²C, I²S, NAND Flash, Profibus, SD3.0, SPI, SVID, UART, USB1.1, USB PD3.0... (80+)

GENERATOR SEMNALE DIGITALE LOGICE 50+12 CANALE ACUTE PG2050-512K

• 50+12 Channels
• 100 M bits/s Data Rate
• 512K Pattern Memory Depth
• 1.5v~5.0v (adjustable 255 Level) Output Voltage

OSCILOSCOP USB PENTRU CALCULATOR 2 X 200 MHZ ACUTE DS-1202

• 200 MHz Bandwidth
• 2 Channels (allows to stack up to max. 6 channels)
• 200MS/s Sample Rate
• 9 bit Vertical Resolution
• 512 K Memory Depth

ANALIZOR LOGIC SI PROTOCOL ACUTE BUSFINDER BF6264B

• PC-based, 64 channels
• USB 3.0 interface, 12V power adaptor
• 32Gb total memory
• Protocol Analyzer:eMMC5.1, NAND Flash, SD3.0, SD 4.0 (UHS-II)
• Logic Analyzer:eMMC5.1, NAND Flash, SD3.0, Serial Flash, SPI NAND, SPI

ACUTE TL2118E ANALIZOR LOGIC 18-CANALE

• PC-based
• USB2.0 interface / powered
• 18 channels
• 4 GHz timing
• 200 MHz state analysis

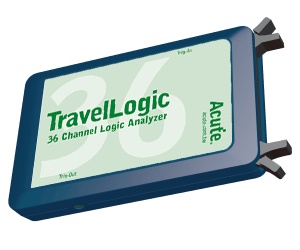

ANALIZOR LOGIC 4GHZ ACUTE TL2136B TL2236B TL2236B+

• PC-based
• USB2.0 interface / powered
• 36 channels
• 4 GHz timing / 200 MHz state analysis
• 4-conditions (4 levels each) trigger
• Data Logger (HD storage)
• Bus Decode I : BiSS-C, CAN, eMMC5.0, I²C, I²S, Nand Flash, ProfiBus, SD, SPI, SVID, UART, USB1.1, ... (80+ decodes)

ANALIZOR LOGIC SI PROTOCOL ACUTE TRAVELBUS TB1016E TB1016B TB1016B+

• PC-based, USB 3.0 interface/powered
• 200 MHz timing/state analysis
• Digital channels : 16 (Data), 1 (Clock), 2 (I²C)
• Memory : PC RAM
• Data logger
• Real time data display and post-capture waveform display
• Bus Decode : I²C, I²S, LIN2.2, SMBus, PWM, SMBus, SPI, UART, USB PD 2.0, ... (60+ decodes)
