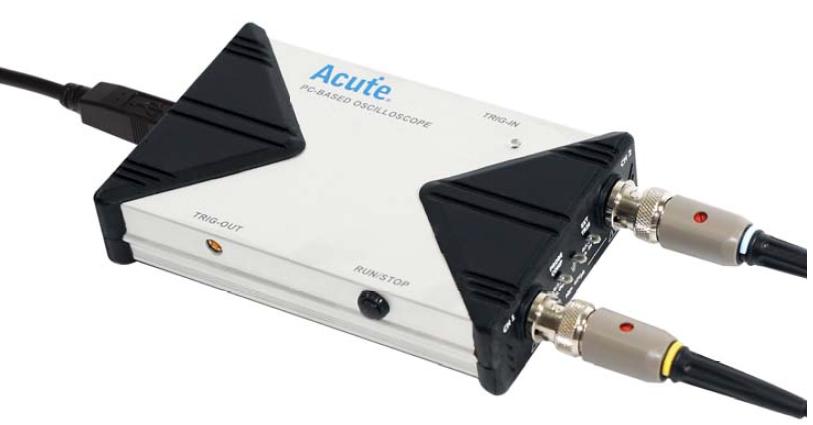

Osciloscop USB 2 x 200MHz Acute TravelScope

Cod: Acute TS2202A, Acute TS2212A



Brosura produs PDF, 0.41 Mb

Descriere

TS2202A : 200 MHz Bandwidth, 10K pts/ch Record Length, 1GS/s Sampling

TS2212A : 200 MHz Bandwidth, 64M pts/ch Record Length, 1GS/s Sampling



  • PC-based (USB2.0 interface)
  • USB powered (2 USB ports needed for TS2212A)
  • 2 channels (stackable up to 6 channels)
  • 1 GS/s real-time sampling
  • 200 MHz bandwidth
  • 10K/64M points per channel
  • Vertical offset adjustable
  • Width, Video/TV, Delay, Runt, Pattern, External Trigger
  • LF reject, HF reject, Noise reject
  • RUN/STOP hardware button
  • Export data to WORD, EXCEL, TEXT, HTML, etc.
  • Data Logger (HD storage)
  • Embedded 2-channels FG with Modulation,
  • Sweep, Burst function


Accesorii standard

TravelScope device

1

Stack cable

1

USB 2.0 cable

1

250MHz Probe & Accessories pack

2

Soft case

1

Installation CD

1



Alte produse ACUTE

OSCILOSCOP USB PENTRU CALCULATOR 2 X 200 MHZ ACUTE DS-1202

• 200 MHz Bandwidth
• 2 Channels (allows to stack up to max. 6 channels)
• 200MS/s Sample Rate
• 9 bit Vertical Resolution
• 512 K Memory Depth


GENERATOR SEMNALE DIGITALE LOGICE 16+4 CANALE ACUTE PKPG2000

• 200M bits data rate
• 200 MHz High Speed Internal Sequential Clock Rate
• 16 channels for editable digital pattern output


OSCILOSCOP USB 2 X 200MHZ ACUTE TRAVELSCOPE

• PC-based, USB2.0 interface / powered
• 2 channels (stackable to 12 channels)
• 1 GS/s sampling, 200 MHz bandwidth
• Data Logger (HD storage)
• Input Sensitivity : 2 mV/div
• Embedded 2-channel FG
• Built-in 5 DVM and 5 digital frequency counter
• Bus Trigger / Decode : ARINC 429, CAN, IĀ²C, LIN, MIL-STD-1553, ProfiBus, SPI (2-Wire), UART, USB1.1, ...


ANALIZOR LOGIC USB ACUTE LA3068E LA3136E LA3068B LA3136B

• PC-based
• 68 / 136 channels
• USB 3.0 interface, 12V power adaptor
• 4GHz Timing Analysis / 250MHz State Analysis
• 32Gb RAM
• Active Probe
• Bus Decode : CAN2.0, eMMC5.1, I²C, Profibus, SD3.0, SPI, SVID, UART, ...(80+ decodes)


ANALIZOR LOGIC SI PROTOCOL ACUTE TRAVELLOGIC TL3017E TL3134E TL3134B TL3234B+

• PC-based
• USB3.0 interface
• 17 / 34 channels
• 2 GHz timing / 200 MHz state analysis
• 8 Gb Memory
• Voltage detect : 2 sets
• Bus Decode : BiSS-C, CAN, eMMC5.0, eSPI, I²C, I²S, NAND Flash, Profibus, SD3.0, SPI, SVID, UART, USB1.1, USB PD3.0... (80+)


OSCILOSCOP USB PENTRU PC 2 X 200 MHZ ACUTE DS-1102

• 200 MHz Bandwidth
• 2 Channels (allows to stack up to max. 6 channels)
• 200MS/s Sample Rate
• 9 bit Vertical Resolution
• 64 K Memory Depth


ANALIZOR LOGIC 4GHZ ACUTE TL2136B TL2236B TL2236B+

• PC-based
• USB2.0 interface / powered
• 36 channels
• 4 GHz timing / 200 MHz state analysis
• 4-conditions (4 levels each) trigger
• Data Logger (HD storage)
• Bus Decode I : BiSS-C, CAN, eMMC5.0, I²C, I²S, Nand Flash, ProfiBus, SD, SPI, SVID, UART, USB1.1, ... (80+ decodes)


ACUTE TL2118E ANALIZOR LOGIC 18-CANALE

• PC-based
• USB2.0 interface / powered
• 18 channels
• 4 GHz timing
• 200 MHz state analysis


OSCILOSCOP USB 2 X 200MHZ ACUTE TRAVELSCOPE

• PC-based (USB2.0 interface)
• USB powered (2 USB ports needed for TS2212A)
• 2 channels (stackable up to 6 channels)
• 1 GS/s real-time sampling
• 200 MHz bandwidth
• 10K/64M points per channel


OSCILOSCOP USB DIGITAL 2 X 200 MHZ ACUTE DS-1302

• 200 MHz Bandwidth
• 2 Channels (allows to stack up to max. 6 channels)
• 200MS/s Sample Rate
• 9 bit Vertical Resolution
• 2M Memory Depth
