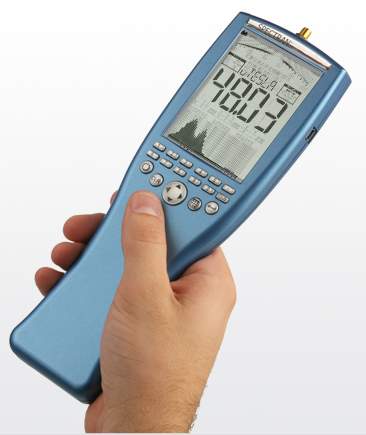

Teslametru EMF camp magnetic 10Hz..400kHz Aaronia Spectran NF3020

Cod: Aaronia Spectran NF3020




Brosura produs PDF, 0.72 Mb

Descriere

  • Frequency range: 10Hz to 400kHz
  • Magnetic field (Tesla): 1pT to 100µT (typ.)
  • Magnetic field (Gauss): 10µG to 1G (typ.)
  • Electric field: 1V/m to 5.000V/m (typ.)
  • Analog Input: 2µV to 200mV (typ.)
  • Resolution (RBW): 1Hz to 100kHz (1-3-10 step)
  • Units: V, V/m, T, G, A/m
  • Detectors: RMS
  • Demodulator: AM
  • Input: High impedance SMA input (f)
  • Audio: Internal speaker with volume control and 2,5mm jack
  • Accuracy: 5% (typ.)
  • Interface: USB 2.0/1.1
  • Dimensions (L/W/D): 250x86x27 mm
  • Weight: 420gr
  • Warranty: 10 years



Highlights:

  • Integrated 3D (isotropic) magnetic sensor
  • Data Logger (64K), expandable to 1MB (Option 001)
  • Exposure limit calculation according to DIN/VDE 0848
  • Jog Dial for easy usage of menu operation and volume control
  • Simultaneously displays frequency and signal strength
  • Internet flash software updates
  • Real-time remote control via USB
  • Fast FFT/DFT spectrum analysis
  • Hold function
  • High-performance DSP (Digital Signal Processor)
  • Large, high resolution multifunctional LCD
  • 1/4" tripod connection





Examples for possible analysis and measurements within frequency range (10Hz - 400kHz):

  • Traction power
  • Power lines and cables
  • Transformer
  • Power supplies and harmonics
  • Energy saving light bulbs
  • Switching power supplies
  • TFT and LCD monitors and TVs
  • 135kHz RFID
  • Various home appliances, industry and office up to 400kHz


Accesorii standard

  • EMI Spectrum Analyzer NF-3020
  • Incl. Option 005 (12Bit Dual DDC Frequency Filter)
  • Integrated electric (E) and magnetic (H) sensor/antenna
  • SPECTRAN 1300mAh rechargeable battery (integrated)
  • Battery charger and power supply incl. international adapter set
  • Aluminum carrying case with foam protection
  • Detailed English manual (on CD)
