AARONIA PowerLOG 70180 Antena horn de putere EMC si microunde 700MHz..18GHz

Cod: AARONIA PowerLOG 70180



Brosura produs PDF, 0.31 Mb


Descriere

Technical data

  • Compatible with any Spectrum Analyzer brand
  • Design: Horn antenna
  • Frequency range: 700MHz to 18GHz
  • Max. input power: 500W (peak)
  • Nominal impedance: 50 Ohm
  • Gain: up to 17dBi
  • Antenna factor: See data sheet graph
  • RF connection: N socket or SMA socket (18GHz) using an adapter
  • Dimensions (L/W/D):
    235x252x175mm
  • Weight: 1400gr
  • Warranty: 10 years



Highlights:

  • Excellent gain performance for EMC measurements
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application

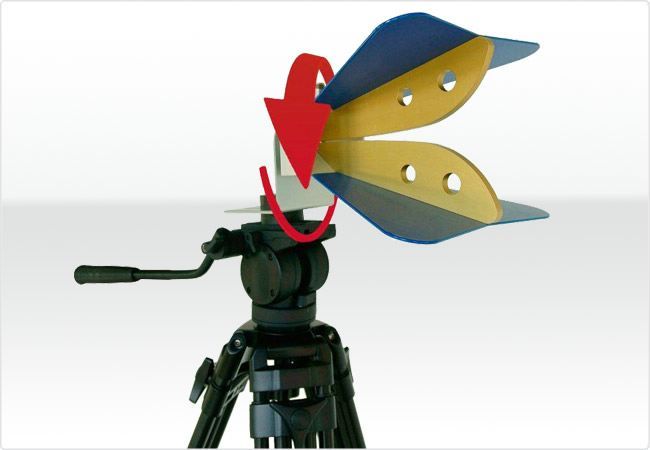

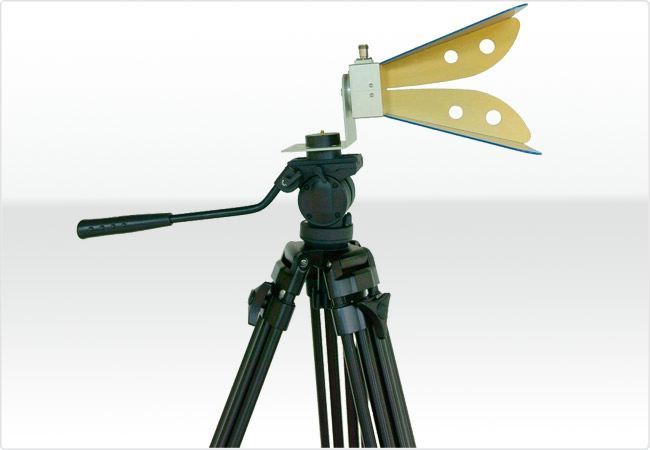

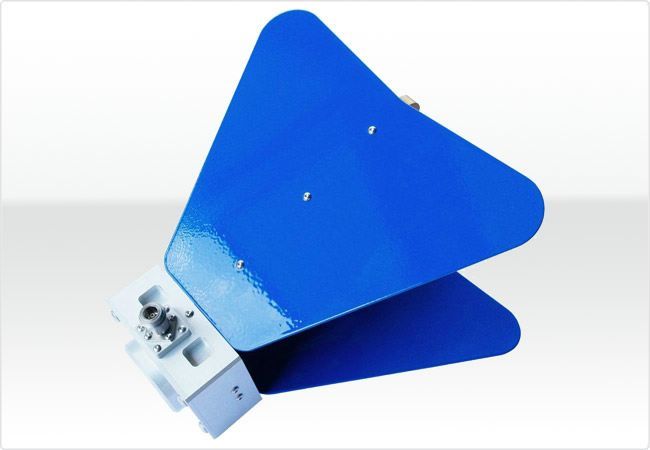

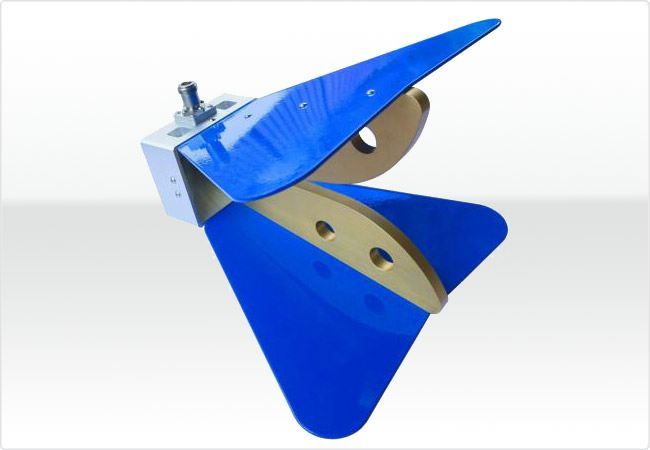

PowerLOG 70180



The horn antennas of the Aaronia PowerLog ® series are characterized by an enormous broad frequency range and very high input powers. The gain increases with increasing frequency up to max. 17 dBi. This gain increase compensates the increasing cable losses at higher frequencies.



The PowerLog 70180 is suitable for both transmitting and receiving purposes. Due to the very high maximum transmission power of up to 500W (peak), the PowerLog is especially suitable for EMC and immunity test measurements.



The antenna is delivered including detailed, specific calibration data.



Made in Germany:

All Aaronia pre compliance antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.



Exhaustive Calibration data:

All Aaronia EMC Stand Antennas include a complete high resolution calibration data set with an unmatched number of calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.





Examples for possible analysis and measurements within frequency range (700MHz - 18GHz):

  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • etc.





Accesorii standard

Included in delivery

EMC Antenna PowerLOG 70180

Typical calibration data on CD

mounting plate
