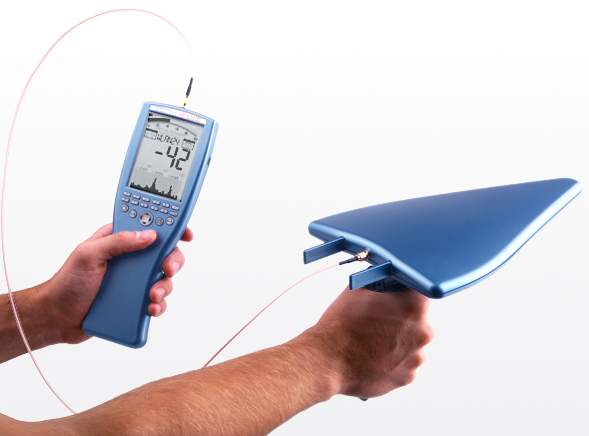

Analizor spectru EMC profesional 1MHz..9.4GHz Aaronia Spectran HF60100

Cod: Aaronia Spectran HF60100

Brosura produs

PDF, 0.7 Mb

Descriere

Frequency range: 1MHz to 9,4GHz
DANL: -155dBm(1Hz)
DANL with Preamp: -170dBm(1Hz)
Max. power: +20dBm (opt. +40dBm)
Lowest sample time: 1mS
Resolution (RBW): 200Hz to 50MHz
EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz
Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
Detectors: RMS, Min/Max
Demodulator: AM, FM, PM, GSM
Input: 50 Ohm SMA RF-input (f)
Accuracy: +/- 1dB (typ.)
Interface: USB 2.0/1.1
Dimensions (L/W/D): 250x86x27 mm
Weight: 430gr
Warranty: 10 years

Highlights:

WORLD RECORD in hand-held sensitivity
Exposure limit calculation and display according to DIN/VDE 0848
Up to 100x faster sample time as V3 units
Up to 80dB higher sensitivity as V3 units
Low noise preamplifier (option)
GSM training sequence (color code) tracker
On screen Provider Display (Option)
14Bit Dual-ADC
DDC Hardware-Filter
150 MIPS DSP (CPU)
Data Logger (64K), expandable to 1MB (Option 001)
Enhanced and much sharper LCD display (compared to V3 units)
Simultaneously displays frequency and signal strength
Real-time remote control via USB
Large, high resolution multifunction LCD
Vector (I/Q) measurement
DECT & TimeSlot analyzer
Real-time Peak Power Detector (option)
Hold function
Included EMC directional antenna HyperLOG 60100
Free MAC OS, Linux and Windows software

Examples for possible analysis and measurements within frequency range (1MHz - 9,4GHz):

Pre-Compliance-Test
Radio & TV
Tetra/BOS
ISM434
LTE800
ISM868
GSM900
GSM1800
GSM1900
DECT
UMTS
WLAN
Microwave
Bluetooth
WiFi
LTE2.6
WiMAX
Directional Radio
5GHz WLAN
PAR Radar
etc.

Accesorii standard

EMC Spectrum Analyzer HF-60100 V4
HyperLOG 60100 EMC measurement antenna
Pistol grip with mini tripod function
1m SMA cable
SMA adapter (m/m)
SMA tool
SPECTRAN 1300mAh rechargeable battery (integrated)
Battery charger and power supply incl. international adapter set
Large aluminum carrying case with foam protection
Detailed English manual (on CD)
Analyzer software for MAC OS, Linux and Windows (on CD)
