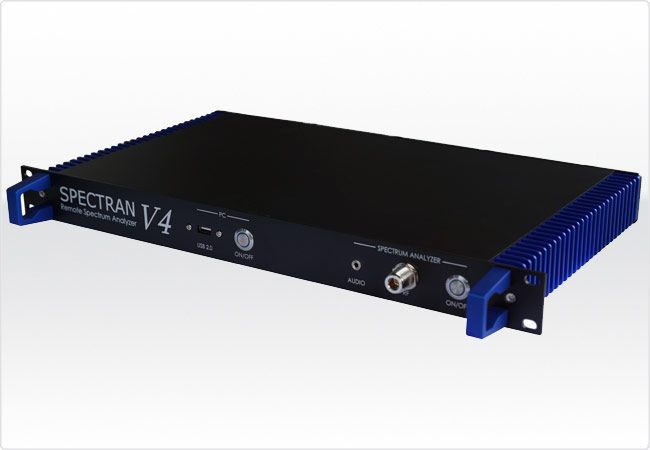

Analizor spectral modular frecvente inalte 1MHz..9.4GHz Aaronia Spectran HF RSA9000

Cod: Aaronia Spectran HF RSA9000



Brosura produs PDF, 1.35 Mb

Descriere

  • Frequency range: 1MHz to 9,4GHz
  • DANL: -155dBm(1Hz)
  • DANL with Preamp: -170dBm(1Hz)
  • Max. power: +20dBm (opt. +40dBm)
  • Lowest sample time: 5mS
  • Resolution (RBW): 200Hz to 50MHz
  • EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz
  • Units: dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm² etc.
  • Detectors: RMS, Min/Max
  • Demodulator: AM, FM, PM, GSM
  • Input: 50 Ohm N, RF-input (f)
  • Accuracy: +/- 1dB (typ.)
  • Interface: USB 2.0/1.1/LAN
  • Dimensions (L/W/D): 19 inch rack mount
  • Weight: 3450gr
  • Warranty: 2 years



Integrated PC:

  • CPU: Intel Celeron G530 2,4GHz
  • RAM: 2x2GB SO-DiMM DDR3, 1066MHz
  • HDD: 320GB (5400rpm)
  • External Ports: 2x USB 2.0, 2x USB 3.0, 1x Audio, 1x 10/100/1000 Mb/s Ethernet, 1x DVI-I (Analog,Digital), 1x HDMI, 1x eSATA
  • Power supply: 19,5V (7,9A max.)
  • Operatingsystem: Linux



Highlights:

  • Exposure limit calculation and display according to DIN/VDE 0848
  • Up to 100x faster sample time as V3 units
  • Up to 60dB higher sensitivity as V3 units
  • Low noise preamplifier (option)
  • 14Bit Dual-ADC
  • DDC Hardware-Filter
  • 150 MIPS DSP (CPU)
  • Real-time remote control via USB /LAN
  • Vector (I/Q) measurement
  • Real-time Peak Power Detector (option)
  • Audio out for the use of PC based FFT analyzer software
  • Very thick (3mm) aluminium housing offering very good screening.
  • Free MAC OS, Linux and Windows software





Examples for possible analysis and measurements within frequency range (1MHz - 9,4GHz):

  • Pre-Compliance-Test
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • Directional Radio
  • 5GHz WLAN
  • PAR Radar
  • etc.


Accesorii standard

  • 19 inch SPECTRAN HF RSA 9000
  • Power supply
  • Cleaning brush
  • Detailed English manual (on CD)
  • Analyzer software for Mac OS, Linux and Windows (on CD)


Alte produse AARONIA

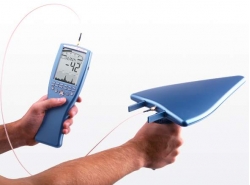

ANALIZOR DE SPECTRU PORTABIL IEFTIN 700MHZ..2.5GHZ AARONIA SPECTRAN HF2025E
