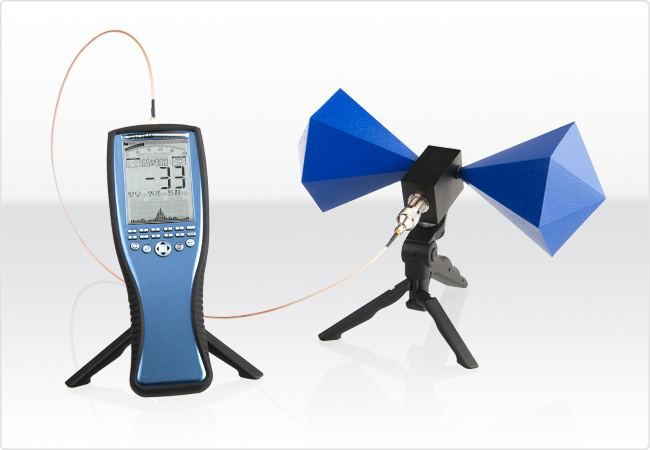

Analizor spectru radio-frecventa 10MHz..6GHz Aaronia Spectran HF6060

Cod: Aaronia Spectran HF6060

Brosura produs

PDF, 0.7 Mb

Descriere

RF frequency range: 10MHz to 6GHz
DANL: -135dBm(1Hz)
DANL with Preamp: -150dBm(1Hz)
Max. power at RF input: +10dBm
Lowest sample time: 10mS
Resolution (RBW): 3kHz to 50MHz
Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
Detectors: RMS, Min/Max
Demodulator: AM, FM
Input: 50 Ohm SMA RF-input (f)
Accuracy: +/- 2dB (typ.)
Interface: USB 2.0/1.1
Dimensions (L/W/D): 250x86x27 mm
Weight: 430gr
Warranty: 10 years

Highlights:

RF exposure limit calculation and display according to DIN/VDE 0848
Up to 100x faster sample time as V3 units
Up to 60dB higher sensitivity as V3 units
Low noise preamplifier (option)
14Bit Dual-ADC
DDC Hardware-Filter
150 MIPS DSP (CPU)
Data Logger (64K), expandable to 1MB (Option 001)
Enhanced and much sharper LCD display (compared to V3 units)
Simultaneously displays frequency and signal strength
Real-time remote control via USB
Large, high resolution multifunction LCD
Vector (I/Q) measurement
DECT & TimeSlot analyzer
Real-time RF Peak Power Detector (option)
Hold function
Included EMC directional antenna HyperLOG 7060
Free MAC OS, Linux and Windows analyzersoftware

Examples for possible analysis and measurements within frequency range (10MHz - 6GHz):

Radio & TV
Tetra/BOS
ISM434
LTE800
ISM868
GSM900
GSM1800
GSM1900
DECT
UMTS
WLAN
Microwave
Bluetooth
WiFi
LTE2.6
WiMAX
Directional Radio
5GHz WLAN
etc.

Accesorii standard

Portable RF Spectrum Analyzer HF-6060 V4
HyperLOG 7060 EMC measurement antenna
Pistol grip with mini tripod function
1m SMA cable
SMA adapter (m/m)
SMA tool
SPECTRAN 1300mAh rechargeable battery (integrated)
Battery charger and power supply incl. international adapter set
Large aluminum carrying case with foam protection
Detailed English manual (on CD)
Analyzer software for MAC OS, Linux and Windows (on CD)
