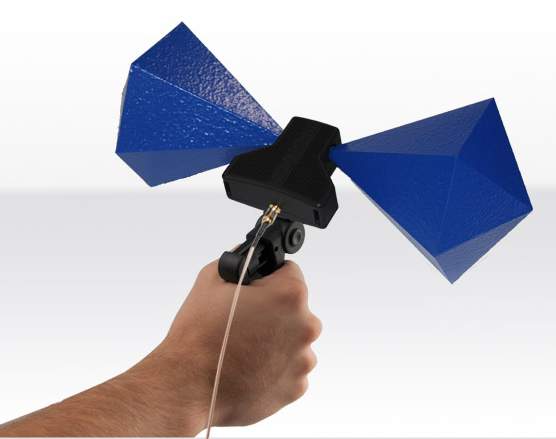

Antena activa biconica testare EMC banda larga 20MHz..1GHz Aaronia BicoLOG 20100EX

Cod: Aaronia BicoLOG 20100EX



Brosura produs PDF, 0.53 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Biconical (radial isotropic)
  • Frequency range: 20MHz to 1GHz
  • Max. output power: 100mW AM
  • Nominal impedance: 50 Ohm
  • Gain: 2dBi to 41dBi
  • Antenna factor: See data sheet graph
  • RF connection: SMA socket (18GHz) or N socket using an adapter
  • Calibration points: 196 (5MHz-steps!)
  • Dimensions (L/W/D): 540x225x225mm
  • Weight: 1300gr
  • Warranty: 10 years



Highlights:

  • Excellent gain performance for EMC measurements down to 20MHz
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (20MHz - 1GHz):

  • Pre-Compliance-Test even for very low signals
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • etc.


Accesorii standard

  • EMC Antenna BicoLOG 20100E X with preamplifier
  • Typical calibration data with 196 calibration points (5MHz steps!) on CD
  • Heavy plastic carrying case
  • SMA tool
