AARONIA OmniLOG 70600 Antena omnidirectionala izotropica 680MHz..6GHz

Cod: AARONIA OmniLOG 70600




Brosura produs PDF, 0.35 Mb

Descriere

OmniLOG 70600 (680MHz - 6GHz)

• Design: Omni-Directional (radial isotropic)
• Polarization: Linear
• Frequency range: 700MHz - 6GHz
• Impedance: 50 Ohms
• Avg Return Loss (dB): -8
• Avg VSWR: 2.5
• Peak Gain (dBi): 6.5
• Avg Gain (dBi): 3.5
• RF-connection: SMA (male)
• Temperature range: - 20°C to +70°C
• Shock: 40G at 10msec
• Thermal Shock: - 20°C to +70°C:10 cycles
• Dimensions (L/W/H): 173 x 63x9mm
• Weight: 54gr
• Warranty: 10 years

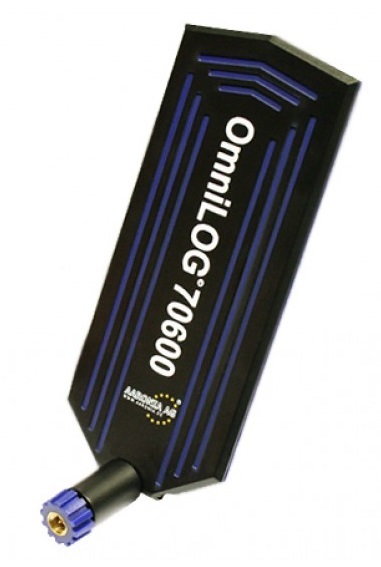

The OmniLOG® 70600 Antenna is specially developed as small and compact, broadband omndirectional antenna. Despite itīs small size it covers an extremely wide frequency range of 680MHz to 6GHz. It fits perfectly in addition to the SPECTRAN Handheld Spectrum Analyzer but can also be used with any other Spectrum Analyzer brand. The frequency range covers following, typical signal sources: GSM, CDMA, LTE, WiFi, ISM, DECT, Bluetooth, 5GHz WLAN, WiMAX. The Antenna offers a heavy-duty 90° knuckle base with SMA connector. The knuckle base is freely adjustable into each position and fixed by two special ball pressure screws. Compared to the HyperLOG-Antennas, the OmniLOG antenna offers the possibility for a direct, radial measurement of field strength without the need to move the antenna to the source. This offers the possibility to get a direct field strength reading without any hassle. The PC Analysis-Software "MCS" supports the OmniLOG 70600 as broadband antenna too and using this software, the OmniLOG antenna can also be used with the SPECTRAN V3 series Spectrum Analyzers. Itīs extremely small size allows measurements without attracting attention or even for covert measurements. Every OmniLOG Antenna offers a high-grade SMA male connector and as such can be connected directly to each SPECTRAN Analyzer. The antenna is shipped incl. detailed, typical calibration data (on CD).
