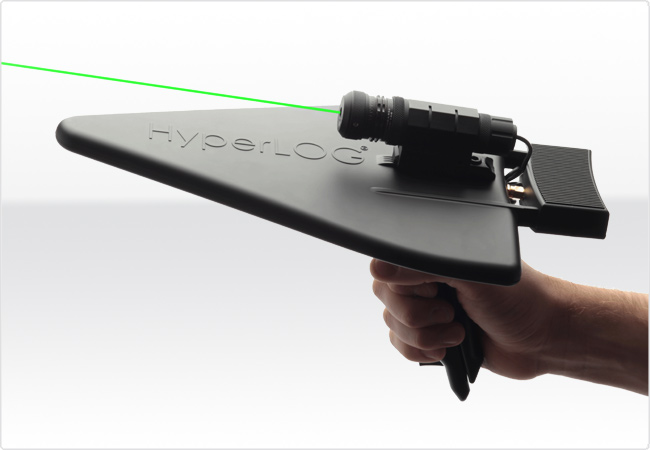

Antena RF banda larga directiva 680MHz..8GHz Aaronia HyperLOG 6080X

Cod: Aaronia HyperLOG 6080X



Brosura produs PDF, 0.54 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: ACTIVE directional Logarithmic-periodic (LogPer)
  • Frequency range: 680MHz to 8GHz
  • Nominal impedance: 50 Ohm
  • VSWR: <1:2 (typ.)
  • Gain: 45dBi (typ.)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Interface: USB 2.0/1.1
  • Calibration points: 733 (10MHz-steps)
  • Dimensions (L/W/D):340x200x25 mm
  • Weight: 400gr
  • Warranty: 10 years



Highlights:

  • Ultra high gain for detecting even lowest RF sources
  • Integrated Low Noise Preamplifier incl. LiPo battery
  • Runs with battery or external power supply (included)
  • Integrated calibration data on EEprom (readout via USB)
  • Additional standard calibration data (on CD)
  • Special designed radome for perfect antenna protection
  • Gold coating for stable performance
  • Wide bandwidth
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact and sturdy design
  • Can be used in the lab and for open-field application



Examples for possible analysis and measurements within frequency range (680MHz - 8GHz):

  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • 5GHz WLAN
  • etc.


Accesorii standard

  • Active Directional Antenna HyperLOG 6080 X
  • Low Noise Preamplifier with integrated LiPo battery (3,5h run time)
  • International battery charger and power supply
  • Calibration data on EEprom (readout via USB)
  • Typical calibration data with 733 calibration points (10MHz steps!) on CD
  • Large aluminum carrying case with foam protection
  • Pistol grip with mini tripod function
  • Aaronia SMA tool set with over-torque protection
