AARONIA IsoLOG 3D Sistem izotropic de antene RF monitorizare si urmarire camp 9kHz..40GHz

Descriere

Technical data

Highlights:

• Worlds first 9kHz to 40GHz 3D Tracking-antenna
• Perfect for wideband, real-time spectrum monitoring
• Ultra high Tracking-Accuracy (up to 4x16 sectors)
• Very high IP3 of 40dBm (versions without pre-amp)
• Extremely fast Tracking-Speed (up to 1µS)
• Glitch free high-end digital RF-switches
• Up to 64 independent RF-Antennas
• Cascadable system (16 to 64 antennas)
• Power over Ethernet Remote-Control
• Suitable for vehicle mounting
• Incl. Control Software
• Suitable for harsh environments
• 10 years warranty

Specifications:

• Compatible with any Spectrum Analyzer brand
• Design: 3D (Isotropic), Array of several Tracking-Antennas
• Frequency range: max. 9kHz to 40GHz (standard 680MHz to 6GHz)
• Max. input power: 1W AM (Versions up to 200W upon request)
• Nominal impedance: 50 Ohm
• VSWR: <1:2,5 (typ.)
• Gain: depending on version/setup up to 45dBi (typ. with amplifier), 15dBi (typ. without amplifier)
• RF connection: N (female) or others on request
• Dimensions (L/W/D):
  950x950x300 mm
• Weight: 8kg
• Warranty: 10 years

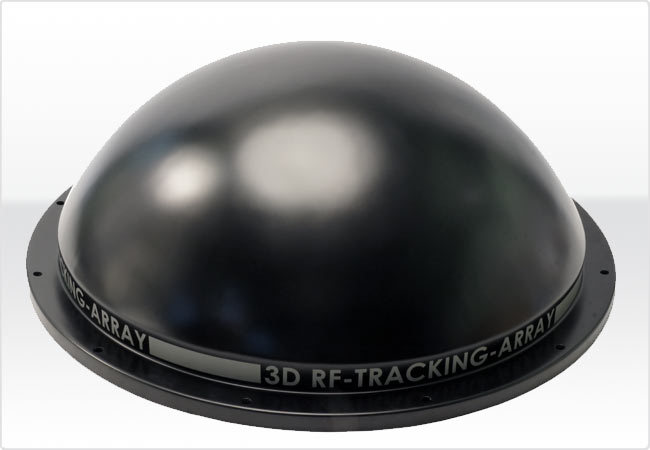

IsoLOG 3D - DF Antenna Array

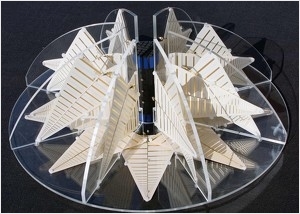

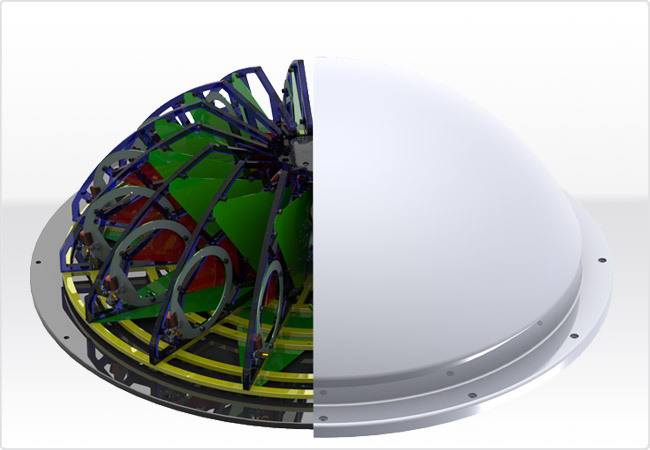

Aaronia´s new 3D RF Tracking Antenna IsoLOG 3D includes a high density, customizable sector array. Additionally 8 or 16 specialized low frequency Antennas can be added to extend the frequency range down to 9kHz. In total up to 64 independent Antennas can be equipped.

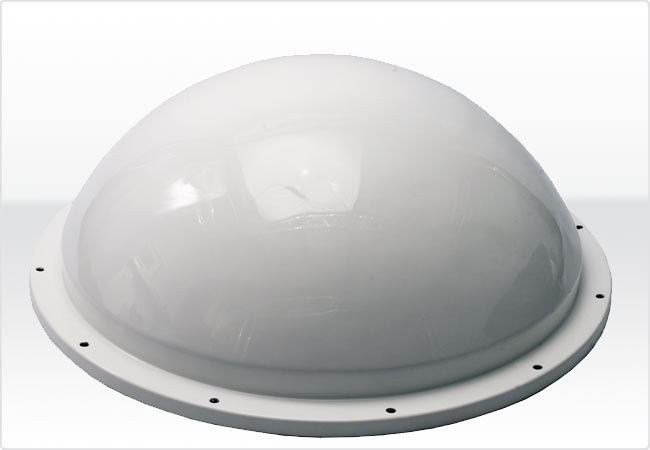

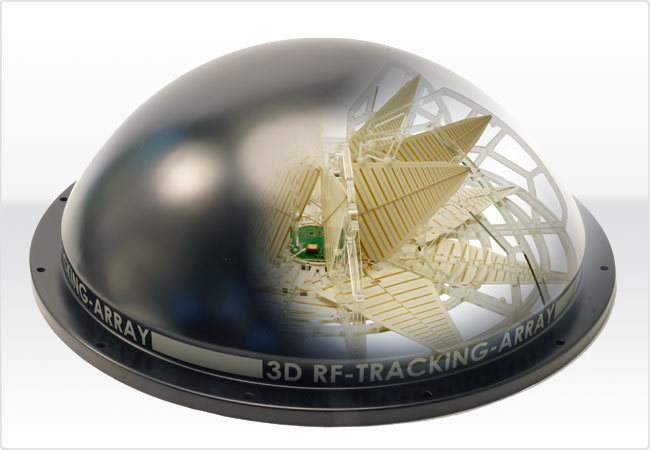

The antennas and the electronic is protected by a included radom which can be ordered in any color and optional prints. The radom is watertight, shock- and heat-proofed to widthstand even hardest conditions. With the "auto rotate-switch function" it can be used for any Spectrum Analyzer.

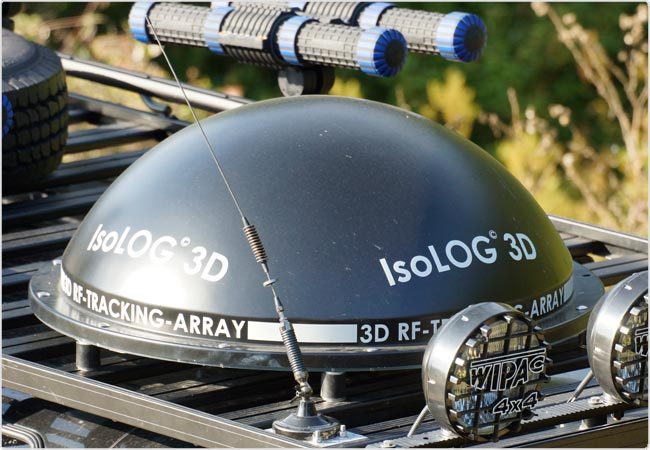

The perfect solution for counter-surveillance measurements or drone-detection-systems (unmanned air vehicle). The wide frequency range eliminates the need of various antenna set ups to save space and system cost. This makes it usable for mounting on vehicles (e.g. drive test cars etc.) and for hidden operations. Looking like a satellite dish for camping vans the antenna is not recognized as a tracking antenna.

The IsoLOG 3D is sensitive to the majority of incoming signal polarizations including all linear polarizations, allowing reliable detection of signals including those invisible to most DF systems that use only vertically polarized antennas.

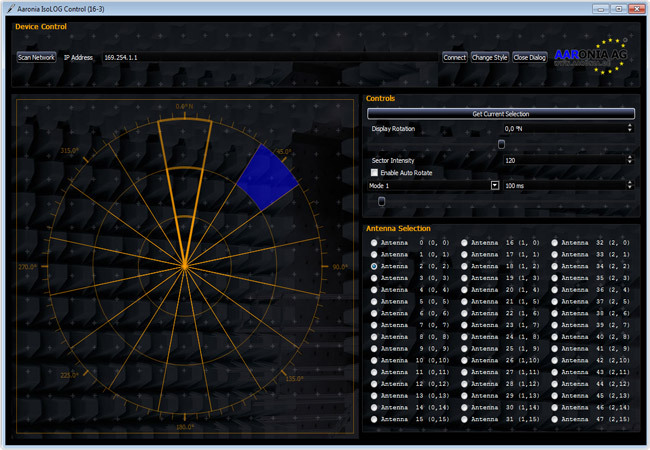

The antenna only needs a Power-over-Ethernet connection for easy integration and control over any existing network. A powerful control software is included for free, for operation on Windows systems. The control software allows various tracking and selection setups, e.g. sweep all antennas horizontal, vertical, switch all in one sector etc. This makes it the perfect tool to track signals in no time.

See a Video of the IsoLOG and it´s functionality.

The integrated switch array uses high-end digital switches instead of common RF-relays, which offers a ultra-high switching speed and a garanteed lifetime operation, even at 24/7 operation.

On request we offer a detailed mounting description or a customized mounting plate for fast and easy integration, as well as customized colors for the antenna radom (RAL color tables).

Aaronia also offers a all-in-one solution for real-time RF spectrum monitoring

The Aaronia spectrum monitoring solution includes the IsoLOG 3D Tracking Antenna, a real-time Spectrum Analyzer and a complex tracking software (drone detection, radar warning, building-, property- and industrial surveillance).

Please contact us for further details.

Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standards so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.

Examples for possible analysis and measurements within frequency range (9kHz - 40GHz):

• Unwanted Surveillance Signals
• Drones
• UAV´s
• Tetra/BOS
• ISM434
• LTE800
• ISM868
• GSM900
• GSM1800
• GSM1900
• DECT
• UMTS
• WLAN
• Microwave
• Bluetooth
• WiFi
• LTE2.6
• WiMAX
• 5GHz WLAN
• PAR Radar
• Directional Radio
• Miscellaneous satellite applications
• etc.
