AARONIA MDF 50400X Antena magnetica urmarit directie camp 500kHz..400MHz

Cod: AARONIA MDF 50400X




Brosura produs PDF, 0.6 Mb


Descriere

Technical data

  • Compatible with any Spectrum Analyzer brand
  • Design: Loop
  • Frequency Range: 500kHz - 400MHz (1MHz - 40MHz with max. +/- 1,0dB deviation)
  • Impedance: 50 Ohm
  • RF connector: SMA (female)
  • Temperature range: - 40°C to +60°C
  • Dimensions: (L/W/D): 180 x 180 x 85 mm
  • Weight: 360gr
  • Incl. Pistol grip with mini tripod function, USB charger & watertight transport case
  • Warranty: 10 years



Highlights:

  • Perfect for magnetic field direction finding in combination with Spectrum Analyzers
  • Incl. 40dB pre-amplifier with integrated battery
  • Compact Design and low weight
  • 10 years warranty and manufactured in Germany

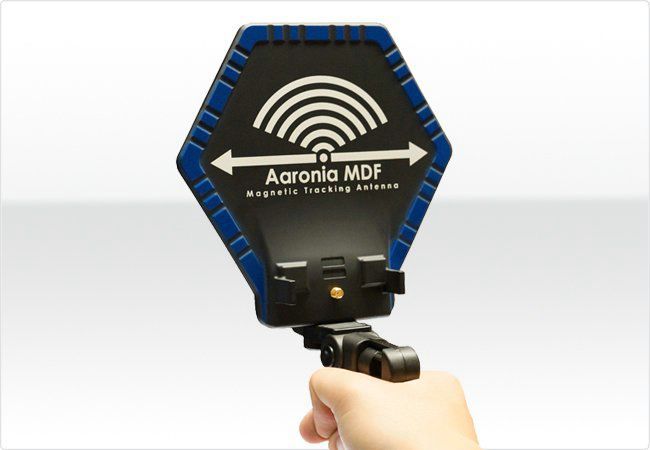

Active Magnetic Field Tracking Antenna Aaronia MDF 50400X



The Aaronia MDF 50400X is a broadband, active magnetic field tracking antenna, suitable for signal tracking and field strength measurements.

Thanks to the high directionality of the antenna, the MDF is ideally suited for signal direction finding.



In contrast to the passive version, the MDF 50400X comes with directly attached 40dB preamplifier. The thus reached extremely high antenna gain allows the measurement of ultra-weak signals.



The preamplifier of the antenna can be operated by an internal battery or by the included USB AC adapter. The battery time is approx. 3-4 hours. The USB connection allows to read out the calibration data of the preamplifier, which are stored in the internal EEPROM and therefore can not be lost.



Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all MDF antennas.



Examples for possible analysis and measurements within frequency range (500kHz - 400MHz):



  • Pre-Compliance-Test
  • DSL
  • ADSL
  • VDSL
  • 13,56MHz RFID
  • CB Radio
  • UKW Radio
  • Amateur Radio
  • BOS
  • Tetra
  • etc.





Accesorii standard

Included in delivery

Aaronia MDF 50400X Antenna with 40dB preamp & USB power charger

Pistol grip with miniature tripod function

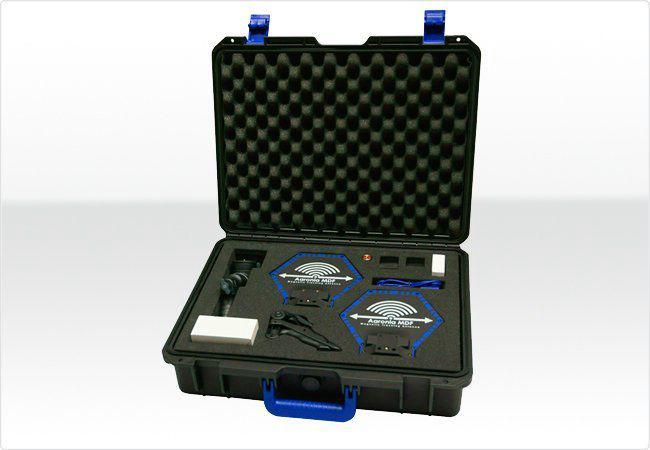

Watertight transport case with foam insert
