AARONIA IsoLOG 3D Mobile 9060 Antena izotropica portabila 9kHz..6GHz

Cod: AARONIA IsoLOG 3D Mobile 9060




Brosura produs PDF, 0.6 Mb


Descriere

Technical data



Highlights:

  • Worlds first 9kHz to 6GHz Handheld Isotropic Antenna
  • Suitable for any Spectrum Analyzer
  • High Gain and Low Noise
  • Built-in Bypass Preamplifier
  • Manual or Automatic Axis Switch
  • Battery or DC Powered
  • Incl. Control Software
  • 10 years warranty







Specifications:

  • Compatible with any Spectrum Analyzer brand
  • Design: 3D (Isotropic)
  • Frequency range: 9kHz to 6GHz
  • Nominal impedance: 50 Ohm
  • VSWR: <1:2,5 (typ.)
  • Gain: up to 10dBi
  • RF connection: N (female) or others on request
  • Dimensions (L/W/D):
    340x75x75 mm
  • Weight: 350g
  • Warranty: 10 years

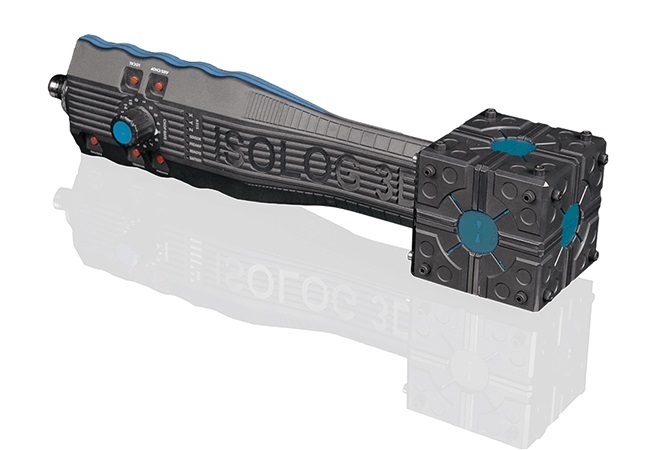

IsoLOG 3D Mobile 9060 - The Perfect Solution for 3D Measurements

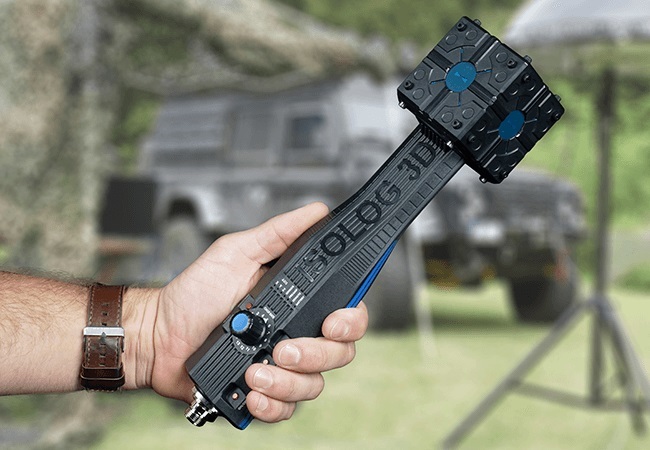

The new IsoLOG 3D Mobile, Aaronia’s latest development, is an ultra light and small isotropic antenna which is compatible to any spectrum analyzer. It just works on the fly and is a perfect plug and play solution for 3D measurements in limited time frames. The antenna requires no software installation, no power connection and no hardware changes. It is connectable via the N (male) connector to any analyzer or oscilloscope.

Each IsoLOG 3D Mobile includes an internal, rechargeable battery, offering a run-time of 6 hours, and a switchable low noise bypass preamplifier. The integrated amp allows measurements of very low-powered signals. Thus, used in bypass mode, the antenna is still usable for high field-strengths. The control of the antenna is done via USB or via manual antenna selection mode, requiring no USB connection.

Aaronia also integrated an ultra fast adjustable „chopper" function. Using special, glitch free RF switches this feature offers an automatic endless antenna rotation/selection with a switching duration of up to 50kHz. This feature transforms the IsoLOG 3D Mobile into a fully functional 3D antenna without the need of any USB software control.

Shipped in a waterproof transport-case, accompanied with a pistol grip with tripod functionality, the scope of delivery leaves nothing to be desire.





Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standards so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.









Examples for possible analysis and measurements within frequency range (9kHz - 6GHz):

  • Unwanted Surveillance Signals
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • 5GHz WLAN
  • PAR Radar
  • Directional Radio
  • Miscellaneous satellite applications
  • etc.





Accesorii standard

Included in delivery

Handheld Isotropic Antenna IsoLOG 3D Mobile

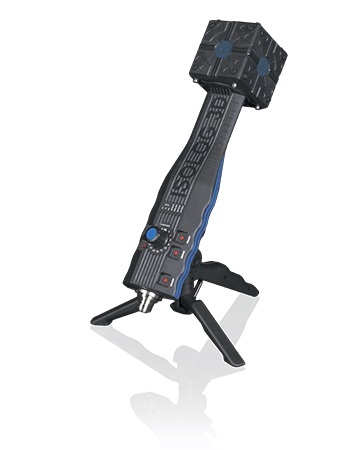

Pistol Grip with Tripod Function

Waterproof Transport-Case

SMA to N Adapter

Power Supply
