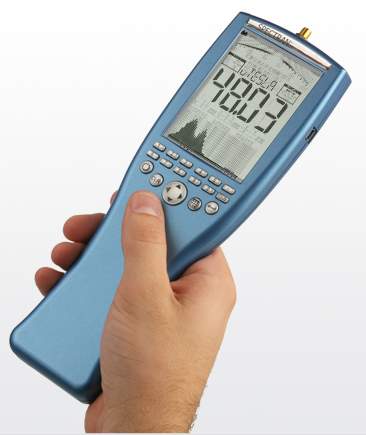

Analizor camp magnetic si electric frecvente joase 10Hz..10kHz Aaronia Spectran NF1010E

Cod: Aaronia Spectran NF1010E




Brosura produs PDF, 0.72 Mb

Descriere

  • Frequency range: 10Hz to 10kHz
  • Magnetic field (Tesla): 1pT to 100µT (typ.)
  • Magnetic field (Gauss): 100µG to 1G (typ.)
  • Electric field: 1V/m to 2.000V/m (typ.)
  • Resolution (RBW): 1Hz to 3kHz (1-3-10 step)
  • Units: V/m, T, G, A/m
  • Detectors: RMS
  • Demodulator: AM
  • Audio: Internal speaker with volume control and 2,5mm jack
  • Accuracy: 5% (typ.)
  • Interface: USB 2.0/1.1
  • Dimensions (L/W/D): 250x86x27 mm
  • Weight: 420gr
  • Warranty: 10 years





Highlights:

  • Integrated 3D (isotropic) magnetic sensor
  • Simultaneously displays frequency and signal strength
  • Exposure limit calculation according to DIN/VDE 0848
  • Fast FFT/DFT spectrum analysis
  • Hold function
  • High-performance DSP (Digital Signal Processor)
  • Large, high resolution multifunction LCD
  • Tripod connection: 1/4"



Examples for possible analysis and measurements within frequency range (10Hz - 10kHz):

  • Traction power
  • Power lines and cables
  • Transformer
  • Power supplies and harmonics
  • Various home appliances, industry and office up to 10kHz


Accesorii standard

  • EMF meter NF-1010E
  • Incl. Option 005 (12Bit Dual DDC Frequency Filter)
  • Integrated electric (E) and magnetic (H) sensor/antenna
  • SPECTRAN 1300mAh rechargeable battery (integrated)
  • Battery charger and power supply incl. international adapter set
  • Aluminum carrying case with foam protection
  • Detailed English manual (on CD)
  • Analyzer software for MAC OS, Linux and Windows (on CD)
