AARONIA OmniLOG 90200 Antena omni-directionala izotropica 700MHz..2.5GHz

Cod: AARONIA OmniLOG 90200




Brosura produs PDF, 0.3 Mb


Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Omni-Directional (radial isotropic)
  • Frequency range: 700MHz to 2,5GHz
  • Max. input power: 40W AM (800MHz)
  • Nominal impedance: 50 Ohm
  • Gain: -2Bi to 2dBi (typ.)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (m) or N (see optional adapter)
  • Calibration points: 181 (1MHz steps)
  • Dimensions (L/W/D):
    210x22x15mm
  • Weight: 70gr
  • Warranty: 10 years



Highlights:

  • Excellent cost effective antenna for radial isotropic measurement
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Very compact design
  • Can be used in the lab and for open-field application

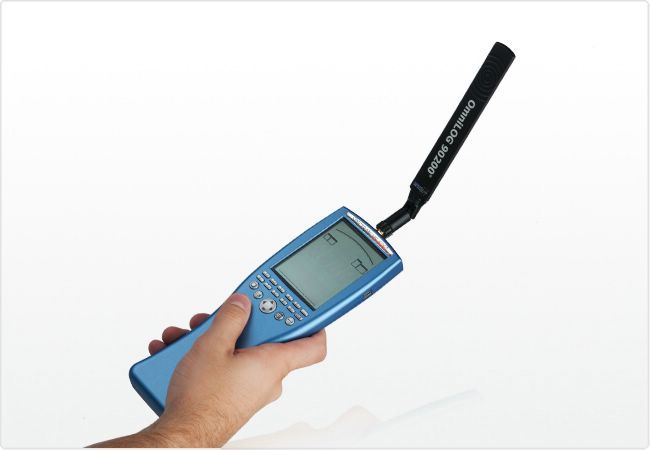

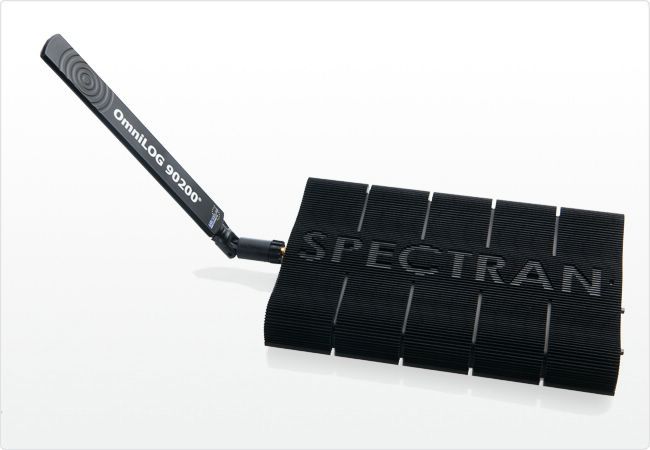

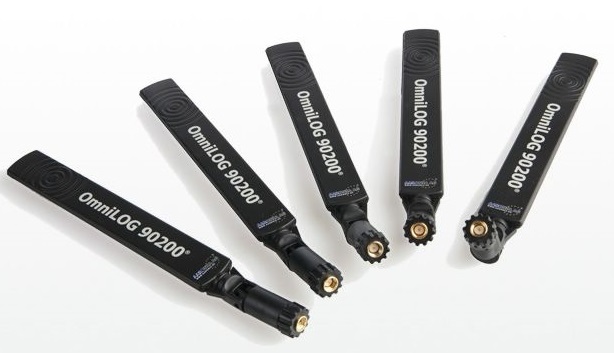

OmniLOG 90200



Excellent cost effective omni directional antenna for radial isotropic measurements from 700MHz to 2,5GHz e.g. RF sources like LTE, GSM, UMTS, 3G, WLan/Wifi etc..



Every OmniLOG antenna goes through rigorous testing in our laboratories before dispatch. Its high-tech antenna-case (radome) offers protection against mechanical damage and environmental influence.



Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.



Exhaustive Calibration data:

All Aaronia antennas include a complete high resolution (10MHz, 5MHz or even 1MHz steps!) calibration data set with an unmatched number of calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.





Accesorii standard

  • OmniLOG 90200 radial isotropic (omni directional) antenna
  • Typical calibration data with 181 calibration points (1MHz steps!) on CD
