Frequency range: 400 MHz to 6 GHz
Up to 3V/m output power (1m distance)
Perfect for RF immunity measurements
Perfect for RF attenuation measurements
Highest power level: +18dBm
Smallest power level: -45dBm
Up to 63dB dynamic range
Frequency accuracy: 150Hz (<1GHz), 450Hz (<3GHz), 900Hz (<6GHz)
Modulations: AM, FM, PM
Onboard TCXO for very high frequency accuracy
Can be connected to external reference clock for even higher accuracy (female SMA-connector)
Onboard CPU and memory for intelligent self-running profiles
Stand alone operation (no PC or USB connection required)
Battery operation up to 4h
USB connector for realtime PC control or for storing programs
Incl. 12V power supply for continuous operation
Can be operated from 12V Car and Truck power system
Dimensions: 590x360x30mm
Small Weight, 1400grams incl. battery

Perfect for RF immunity measurements
Perfect for RF attenuation tests in combination with SPECTRAN Spectrum Analyzer

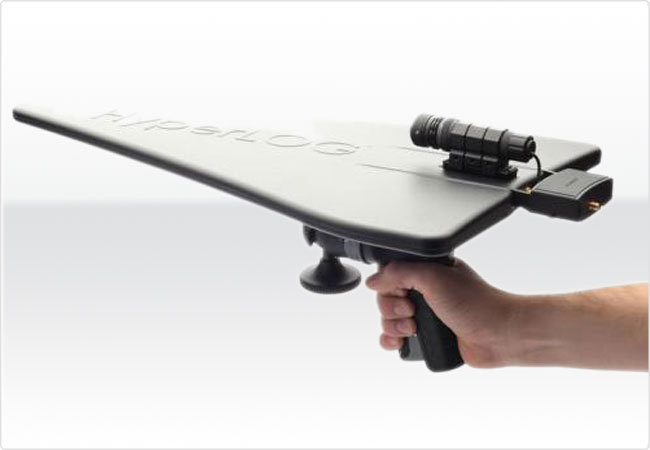

Directional Field Generator DFG4060

Portable RF field strength generator DFG4060 with excellent directivity and high output power

The perfect test stations or test transmitter for EMC measurements or the assessment of screening effects (eg shielded rooms or Screen chambers).

Function
The portable, battery-operated field strength generator can be used with simple or complex batch programs that start automatically after power (eg CW signal, sweep, pulse, frequency hopping, etc.). Also, the level can be varied; programmable. A direct control (eg at the laboratory bench) is possible via USB. An appropriate, easy to use software for Mac, Linux and Windows, is included.

Accesorii standard

DFG 4060 Field Generator with integrated battery
transport case
pistol grip
International Charger/Power Supply
SMA Tool
USB-Cable
Control Software
