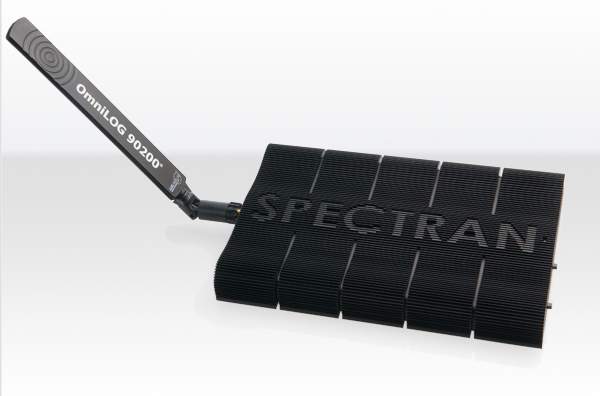

Analizor de spectru pe USB frecvente inalte 10MHz..6GHz Aaronia HF6060X

Cod: Aaronia Spectran HF6060X



Brosura produs PDF, 0.56 Mb

Descriere

  • Frequency range: 10MHz to 6GHz
  • DANL: -135dBm(1Hz)
  • DANL with Preamp: -150dBm(1Hz)
  • Max. power at RF input: +10dBm
  • Lowest sample time: 10mS
  • Resolution (RBW): 3kHz to 50MHz
  • Units: dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm² etc.
  • Detectors: RMS, Min/Max
  • Demodulator: AM, FM
  • Input: 50 Ohm SMA RF-input (f)
  • Accuracy: +/- 2dB (typ.)
  • Interface: USB 2.0/1.1
  • Dimensions (L/W/D): 210x136x26 mm
  • Weight: 1600gr
  • Warranty: 10 years



Highlights:

  • Exposure limit calculation and display according to DIN/VDE 0848
  • Up to 100x faster sample time as V3 units
  • Up to 60dB higher sensitivity as V3 units
  • Low noise preamplifier (option)
  • 14Bit Dual-ADC
  • DDC Hardware-Filter
  • 150 MIPS DSP (CPU)
  • Real-time remote control via USB
  • Vector (I/Q) measurement
  • Real-time Peak Power Detector (option)
  • Internal speaker (which can be switched off)
  • Audio out for the use of PC based FFT analyzer software
  • Included OmniLOG antenna
  • Very thick (3mm) aluminium housing offering very good screening.
  • 100% powered by the external power supply only (no battery)
  • Free MAC OS, Linux and Windows software





Examples for possible analysis and measurements within frequency range (10MHz - 6GHz):

  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • Directional Radio
  • 5GHz WLAN
  • etc.


Accesorii standard

  • Remote controlled USB Spectrum Analyzer HF-6060 V4 X
  • OmniLOG 90200 antenna
  • Aluminum carrying case
  • Battery charger and power supply incl. international adapter set
  • USB cable
  • SMA tool
  • Cleaning brush
  • Detailed English manual (on CD)
  • Analyzer software for MAC OS, Linux and Windows (on CD)
