AARONIA OFG5070 Generator camp radio 50MHz..700MHz

Cod: AARONIA OFG5070






Descriere

  • Frequency range: 50 MHz to 700 MHz
  • Up to 3V/m output power (0,5m distance)
  • Perfect for RF immunity measurements
  • Perfect for RF attenuation measurements
  • Highest power level: +17dBm
  • Smallest power level: -48dBm
  • Up to 65dB dynamic range
  • Frequency accuracy: 15Hz (<100MHz), 150Hz (<700MHz)
  • Modulations: AM, FM, PM
  • Onboard TCXO for very high frequency accuracy
  • Can be connected to external reference clock for even higher accuracy (female SMA-connector)
  • Onboard CPU and memory for intelligent self-running profiles
  • Stand alone operation (no PC or USB connection required)
  • Battery operation up to 4h
  • USB connector for realtime PC control or for storing programs
  • Incl. 12V power supply for continuous operation
  • Can be operated from 12V Car and Truck power system
  • Dimensions: 350 x 160 x 140mm
  • Small Weight, 500grams incl. battery



  • Perfect for RF immunity measurements
  • Perfect for RF attenuation tests in combination with SPECTRAN Spectrum Analyzer
  • Generating CW signals, Sweep, Pulse, Frequency-Hopping, AM, FM, PM

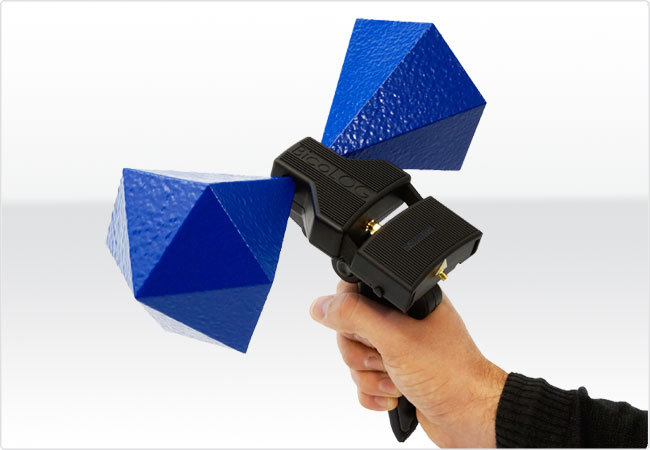

Omni-directional Field Generator OFG5070



Omni-directional RF field strength generator OFG5070 with high output power

The perfect RF test station or test transmitter for EMC measurements or the assessment of shielding effects (eg shielded rooms or Screen chambers).



Function

The portable, battery-operated field strength generator can be used with simple or complex batch programs that start automatically after power (eg CW signal, sweep, pulse, frequency hopping, etc.). Also, the level can be varied; programmable. A direct control (eg at the laboratory bench) is possible via USB. An appropriate, easy to use software for Mac, Linux and Windows, is included.

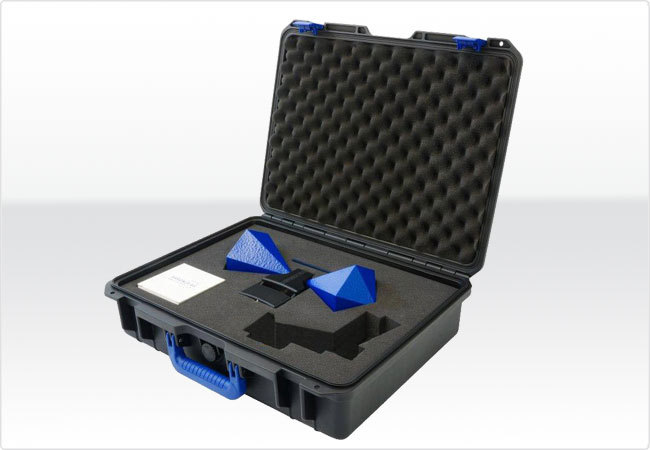

Accesorii standard

  • OFG 5070 Field Generator with integrated battery
  • transport case
  • pistol grip
  • International Charger/Power Supply
  • SMA Tool
  • USB-Cable
  • Control Software
