AARONIA PowerLOG 10800 Antena horn banda larga EMC si microunde 1GHz..8GHz

Cod: AARONIA PowerLOG 10800



Brosura produs PDF, 0.31 Mb


Descriere

Technical data

  • Compatible with any Spectrum Analyzer brand
  • Design: Horn antenna
  • Frequency range: 1GHz to 8GHz
  • Max. input power: 400W (peak)
  • Nominal impedance: 50 Ohm
  • Gain: up to 13dBi
  • Antenna factor: See data sheet graph
  • RF connection: N socket or SMA socket (18GHz) using an adapter
  • Dimensions (L/W/D):
    235x252x175mm
  • Weight: 1400gr
  • Warranty: 10 years



Highlights:

  • Excellent gain performance for EMC measurements
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application

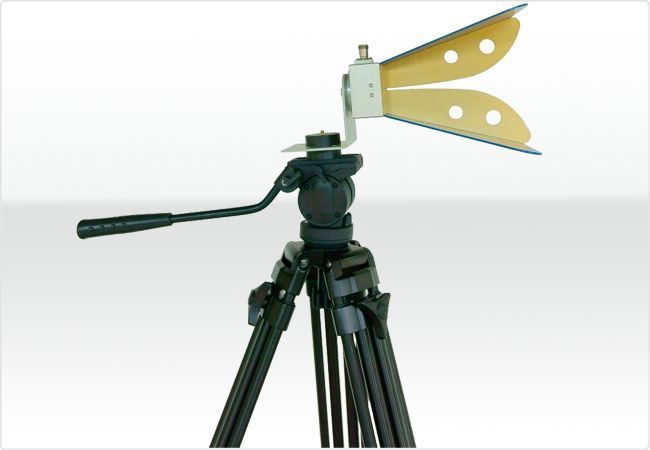

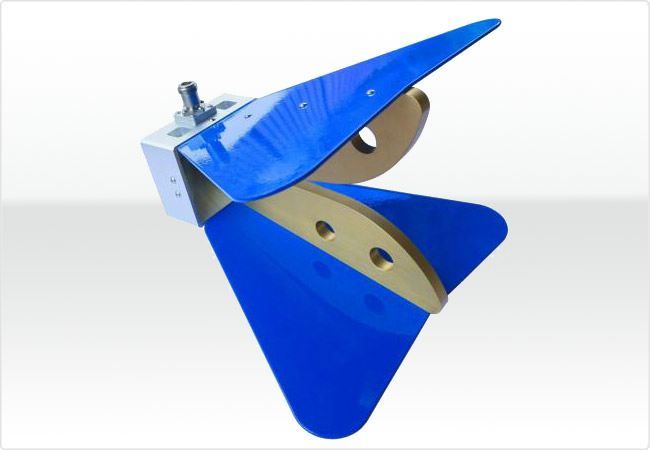

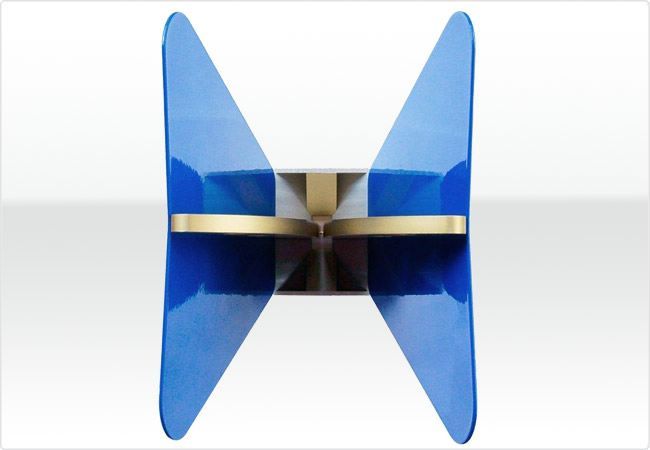

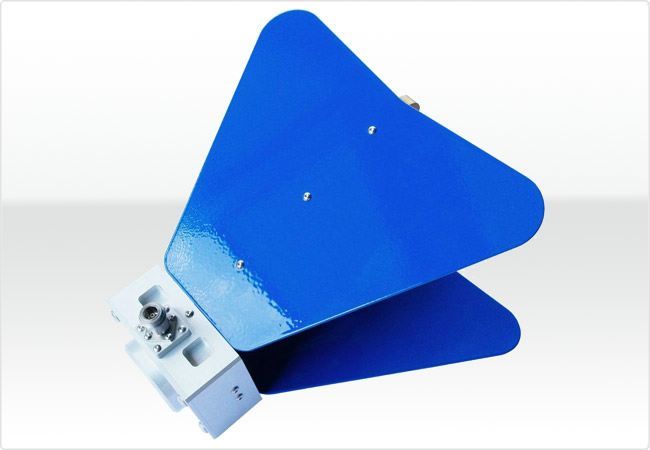

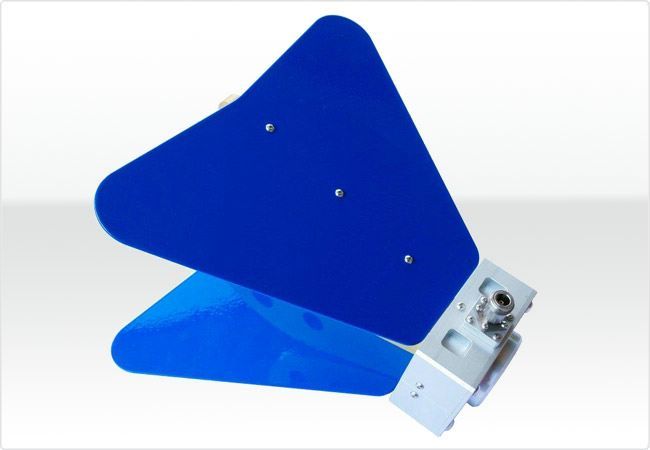

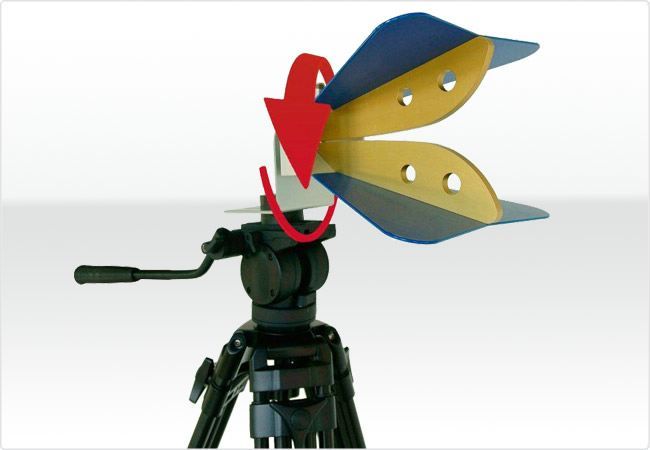

PowerLOG 10800



The horn antennas of the Aaronia PowerLog ® series are characterized by an enormous broad frequency range and very high input powers. The gain increases with increasing frequency up to max. 13 dBi. This gain increase compensates the increasing cable losses at higher frequencies.



The PowerLog 10800 is suitable for both transmitting and receiving purposes. Due to the very high maximum transmission power of up to 400W (peak), the PowerLog is especially suitable for EMC and immunity test measurements.



The antenna is delivered including detailed, specific calibration data.



Made in Germany:

All Aaronia pre compliance antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.



Exhaustive Calibration data:

All Aaronia EMC Stand Antennas include a complete high resolution calibration data set with an unmatched number of calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.





Examples for possible analysis and measurements within frequency range (1GHz - 8GHz):

  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • etc.





Accesorii standard

Included in delivery

EMC Antenna PowerLOG 10800

Typical calibration data on CD

mounting plate
