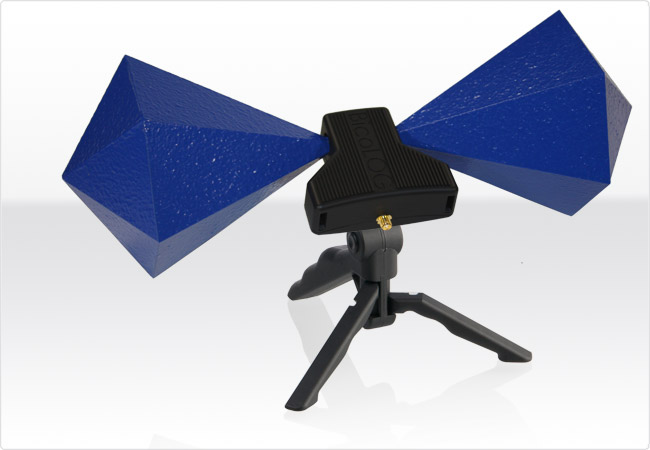

Antena biconica EMC banda larga 30MHz..1GHz Aaronia BicoLOG 30100

Cod: Aaronia BicoLOG 30100



Brosura produs PDF, 0.54 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Biconical (radial isotropic)
  • Frequency range: 30MHz to 1GHz
  • Max. input power: 5W AM (100MHz)
  • Nominal impedance: 50 Ohm
  • Gain: -18dBi (@100MHz)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Calibration points: 104 (5MHz and 10MHz-steps)
  • Dimensions (L/W/D): 350x160x140mm
  • Weight: 350gr
  • Warranty: 10 years



Highlights:

  • Excellent cost effective choice for low frequency measurements down to 30MHz
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (30MHz - 1GHz):

  • Pre-Compliance-Test
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • etc.


Accesorii standard

  • BicoLOG 30100 radial isotropic biconical antenna
  • Typical calibration data with 104 calibration points (5MHz and 10MHz steps!) on CD
  • Carrying case not included! Please order it separately!
