Datalogger Meteo cu achizitie si inregistrare date Delta Ohm HD32MT.1

Cod: Delta Ohm HD32MT.1




Brosura produs PDF, 0.92 Mb


Descriere

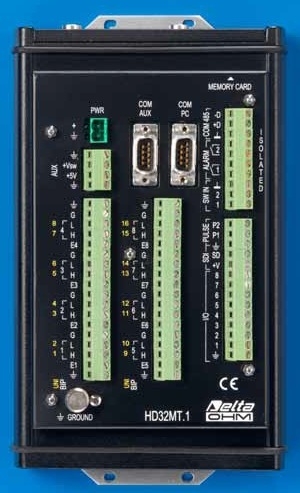

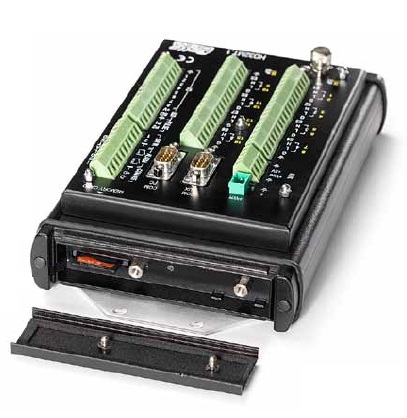

The HD32MT.1 is a 16-channel data logger capable of capturing and logging the values measured by a series of sensors connected to its inputs.

The data logger is completely programmable by the user and is therefore very versatile. The supplied HD32MTLogger application software, supplied with the instrument, allows simple and intuitive programming by using graphic interfaces, without the need of learning.



Typical sensrs that can be connected to the instrument:

  • Sensors with analog voltage output, both unipolar and bipolar
  • Sensors with analog current output(0..20mA, 4..20mA)
  • Temperature sensors thermocouple(typpe K, J, T, N, R, S, B, E)
  • Pt100/Pt1000 and NTC temperature sensors
  • Sensors with digital output TTL level pulse (ON/OFF)
  • Sensors with open/close contact output(e.g. rain gauges, cup anemometers)
