Radiometru net cu 4 componente masura radiatii solare Delta Ohm LP NET14

Cod: Delta Ohm LP NET14




Brosura produs PDF, 1 Mb

Descriere

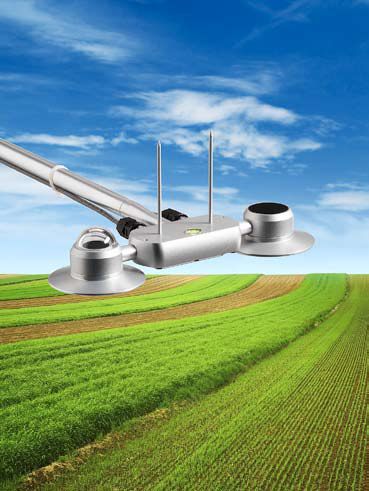

LP NET 14 is a 4-component net-radiometer for the measurement of the net

radiation between 0.3µm and 45 µm.

The net-radiometer consists of two pyranometers (one for the measurement of

the global radiation Esw? and the other one for the measurement of the reflected

solar radiation Esw?) and a pair of pyrgeometers (one for the measurement of

the infrared radiation emitted by the sky EFIR? and the other one for the infrared

emitted by the ground surface EFIR?).

The LP NET 14 is equipped with a temperature sensor (NTC). The measurement

of the temperature is needed for the measurement with the two pyrgeometers,

in fact, the far infrared is derived by measuring the thermopile output and by the

knowledge of the instrument’s temperature.

The net radiometer is suitable for outdoor use in all weather conditions and

requires little maintenance.
