Analizor TV Analog, Digital, Terestrial, Cablu, Satelit Promax TV EXPLORER
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Promax TV EXPLORER




Brosura produs PDF, 5.25 Mb

Descriere

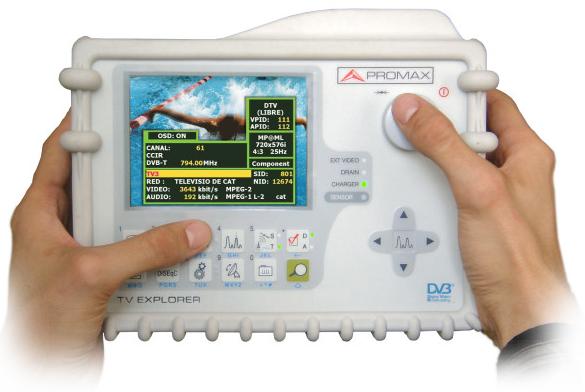

The new TV EXPLORER is the first TV&SAT analyser that fits your hands, with a weight less than 2 kg.

The new TV EXPLORER is been designed for the installation, maintenance and surveillance of terrestrial, satellite and cable TV systems. It is ideal to be used in this transition period from analogue to digital, as it covers a wide range of standards, PAL / SECAM / NTSC in analogue and COFDM / QPSK / QAM in digital.

It includes, in addition to other innovative features, EXPLORER and AUTO ID functions for detecting and identifying automatically channels in the band, an improved graphical user interface that shows all measurements for each signal in a single screen, and direct access buttons to the most common functions.

With only pressing a key, the instrument measures and decodes the signal.





COVERAGE

Terrestrial, satellite and cable TV

FUNCTIONS

Spectrum analyser / Measurements / Signal decoding

MEASUREMENTS
  ANALOGUE
  DIGITAL
   COFDM 2k/4k/8k
   QPSK
   QAM 16/32/64/128/256

All measures shown simultaneously
Level, Video/audio,C/N
Power, C/N, Channel identifying
MER, CBER, VBER, Noise margin
MER, CBER, VBER, Noise margin
BER, MER

TUNING

By channel and frequency (FI or direct if satellite)

"EXPLORER" FUNCTION

Automatic channel search and channel plan creation

"AUTO ID" FUNCTION

Automatic identification of the type of signal

MONITOR

TFT LCD 5" (320 candles/m2)

UTILITIES

Automatic datalogger
Measurements data reports
Satellite FI test

ADVANCED FUNCTIONS

Internet automatic updates
PkTools software (optional)
Transport case (optional)

DIMENSIONS AND WEIGHT

230 x 161 x 76 mm / 2 kg. approx.
