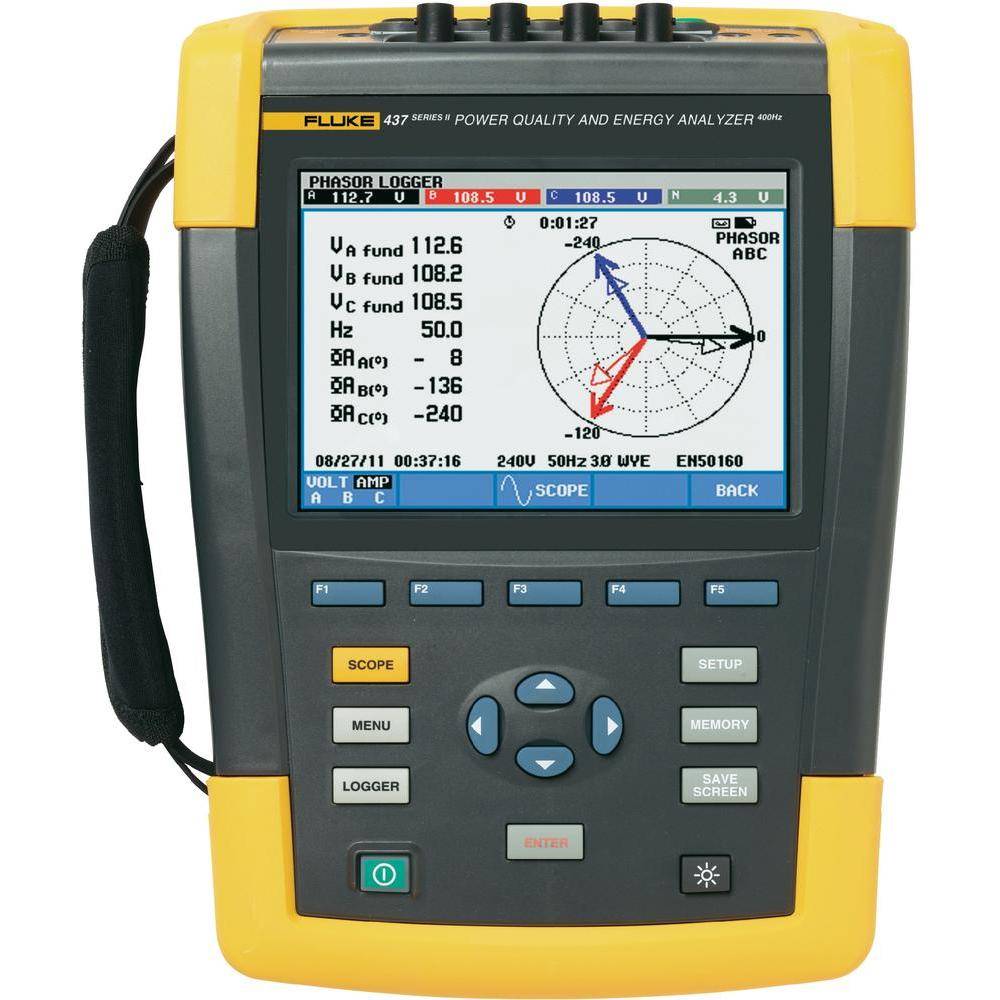

Analizor calitate putere si energie electrica Fluke 437 II

Cod: Fluke 437-II 437II




Brosura produs PDF, 0.82 Mb

Descriere

  • 400 Hz measurement: By increasing the power frequency to 400 Hz, transformers and motors can be much smaller and lighter than at 50 or 60 Hz, which is an advantage in aircrafts, submarines, space crafts, and other military equipment and hand-held tools. The 437 II model captures power quality measurements for these types of avionic and military systems.
  • Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp.
  • PowerWave data capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).
  • Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses.
  • Troubleshoot real-time: Analyze the trends using the cursors and zoom tools.
  • Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance.
  • Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex design to fit into the tightest places.
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up.
  • System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard.
  • Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals.
  • View graphs and generate reports: With included analysis software.
  • Battery life: Seven hours operating time per charge on Li-ion battery pack.


Accesorii standard

  • BC430 Power Adapter
  • International plug adapter set
  • BP290 (Single capacity Li-ion battery) 28 Wh (7 hours or more)
  • TLS430 Test lead and Alligator clip set
  • WC100 color coding clips and regional decals
  • i430flex-TF, 24 inch (61 cm) length, 4 clamps
  • 8 GB SD card
  • PowerLog on CD (includes operator manuals in PDF format)
  • USB cable A-Bmini


Optiuni recomandate

Clips

AC285

AC285 SureGrip™ Alligator Clip Set



Batteries, Chargers and Adapters

BP290

2400 mAh Li-ion battery for Fluke 190-series II

BP291

4800 mAh High capacity Li-ion battery ) for Fluke 190-seriesII

BC430

BC430 Line Voltage Adapter/Battery Charger

EBC290

EBC290 External Battery Charger, charges BP291 while outside instrument



Cables and Hardware

GPS430

GPS430 Time Synchronization Module



Current clamps

90i-610s

90i-610s AC/DC Current Probe (600 A)

i30s

Fluke i30s AC/DC Current Clamp

i1000s

i1000s AC Current Clamp (1000 A)

i200s

i200s AC Current Clamp

i3000s

i3000s AC Current Clamp

i400s

i400s AC Current Clamp

i5sPQ3

i5sPQ3 AC Current Clamp, 3-pack



Options

HH290

Hanging Hook for ScopeMeter 190-Series II



Test Leads

TLS430

TLS430 Test Leads and Alligator Clips set

WC100

WC100 Color Localization Set
