Pompa hidraulica calibrare presiuni Fluke 700HTP-2

Cod: Fluke 700HTP-2



Brosura produs PDF, 1.63 Mb


Descriere

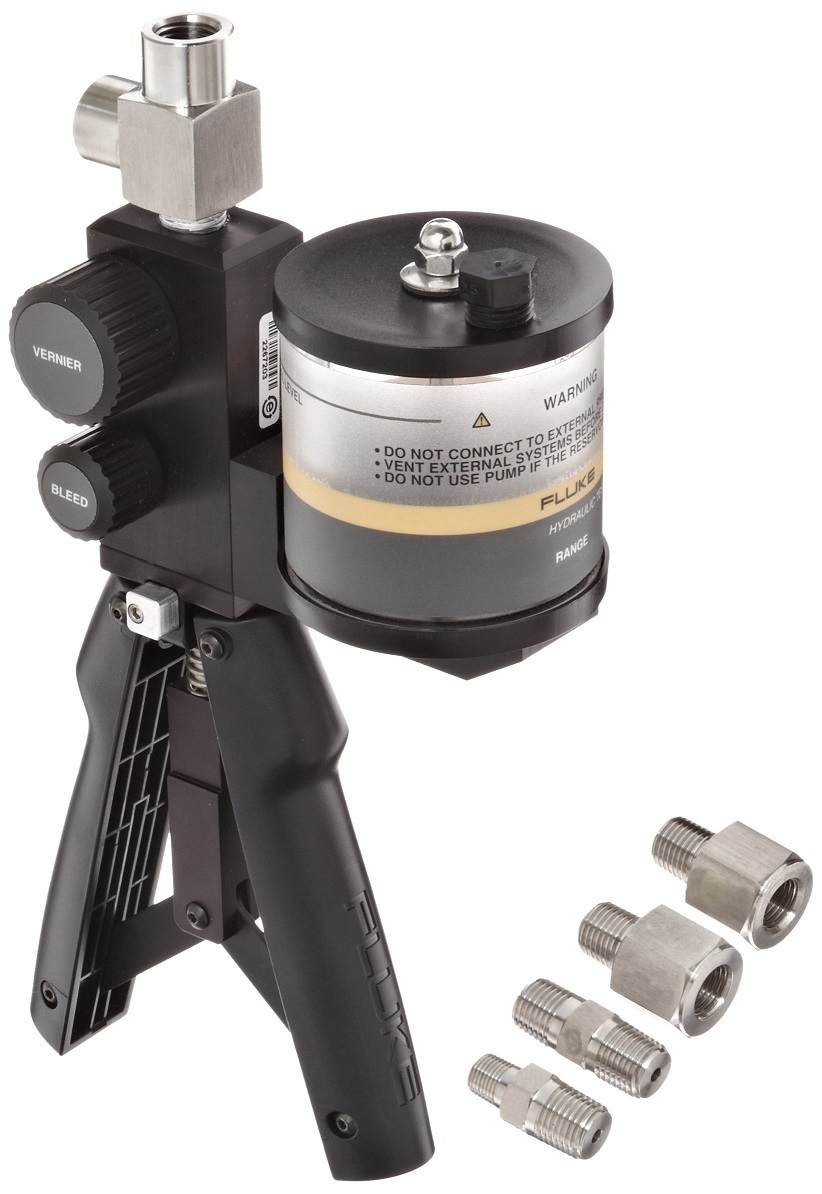

The Fluke 700HTP-2 is a hand operated hydraulic pressure pump designed to generate calibration pressures up to 10,000 psi/690 bar. Designed for use with Fluke-700 series high pressure modules such as the Fluke-700P09, 700P29, 700P30 and 700P31.



Ideal for calibration when connected to a Fluke high pressure module via the reference port. The 700HTP-2 uses distilled water or mineral-based hydraulic oil as a source for calibration of high pressure input devices such as pressure transmitters or pressure gauges. Can also be used with Fluke 717 pressure calibrators.



  • Variable size stroke adjustment, allows the user to vary the volume and pressure per stroke
  • Integral pressure adjustment vernier knob for fine pressure adjustment
  • Directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing
  • Two ¼ inch NPT pressure ports, one for reference (pressure module or gauge), one for UUT
  • Compatible with optional Fluke-700PRV pressure relief valve designed to protect pressure modules from overpressure damage
  • Improved priming
  • Improved stroke limiting mechanism

Note: The user must provide a hose with appropriate end fittings to apply pressure from the UUT port to the calibration unit under test such as the Fluke-700HTH-1 hose kit.





Mechanical and General Specifications

Size

Dimensions: length 9.5 in (241 mm), width 6.1 in (155 mm), depth 2.6 in (66 mm)

Weight

1.29 lb (.58 kg)

Warranty

One year

Material

Wetted materials: 303 stainless steel, aluminum, polyurethane, PTFE, nitrile, and nylon





Accesorii standard

Includes:



•                     ¼ inch NPT to ¼ inch NPT adapter to connect the reference gauge port on the pump body to the 1/4 NPT female fitting on Fluke 700P29, P30, and P31 pressure modules.

•                     (2) ¼ inch NPT male to ¼ inch BSP Female adapters

•                     ¼ inch NPT Tee (installed)

•                     Instruction sheet



Optiuni recomandate



700G/TRACK Data logging software and cable

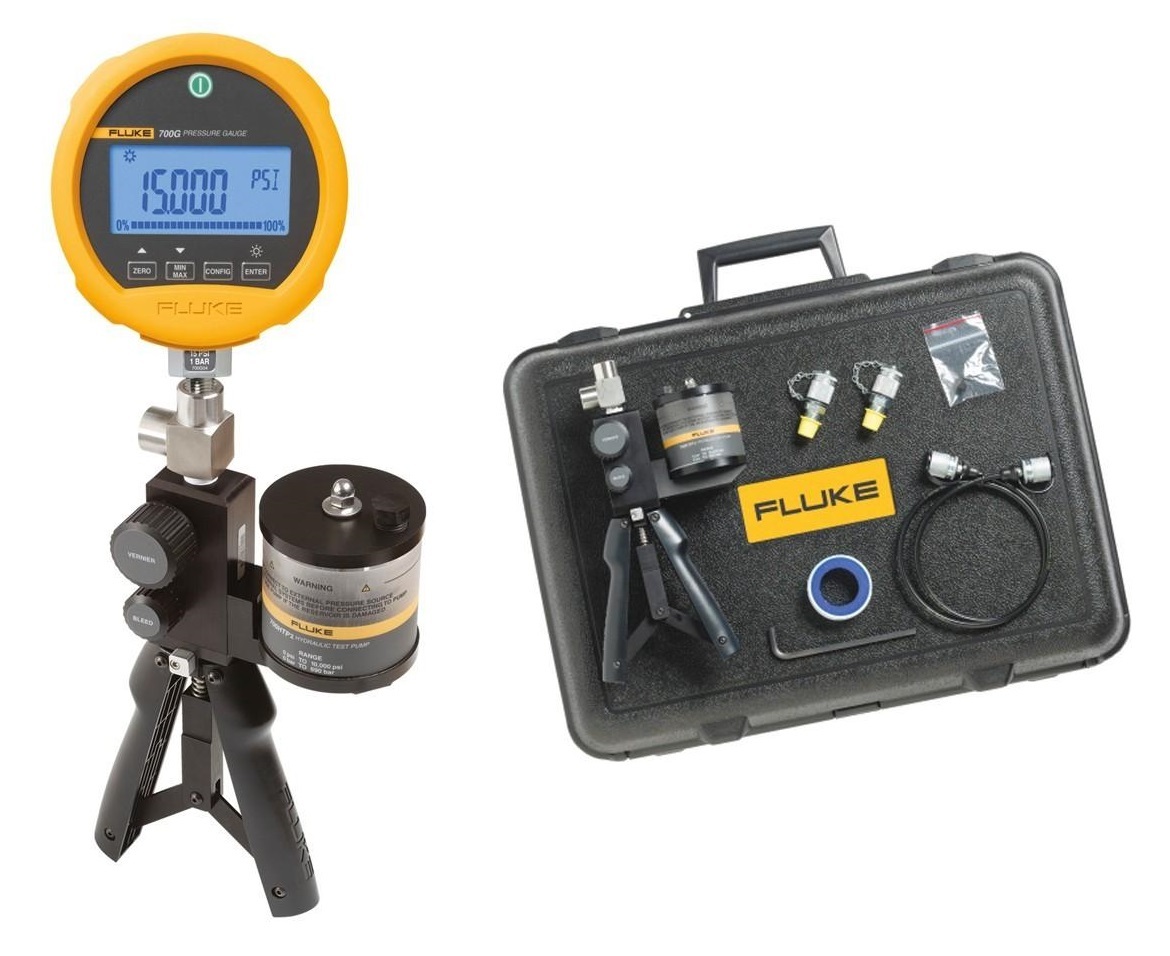

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR


Included accessories (Gauges)

Manual on CD-ROM in 14 languages

Traceable certificate of calibration

1/4? NPT to 1/4? ISO adapter



Fluke-700G01 Pressure Gauge, +-10 inH2O    -20 mbar to 20 mbar

Fluke-700G02 Pressure Gauge, +-30 inH2O    -70 mbar to 70 mbar

Fluke-700G04 Pressure Gauge, +-15 PSIG  -.97 bar to 1 bar

Fluke-700G05 Pressure Gauge, 30 PSIG   -.97 bar to 2 bar

Fluke-700G06 Pressure Gauge, 100 PSIG  -.83 bar to 6.9 bar

Fluke-700G27 Pressure Gauge, 300 PSIG  -.83 bar to 20 bar

Fluke-700G07 Pressure Gauge, 500 PSIG -.83 bar to 34 bar

Fluke-700G08 Pressure Gauge, 1000 PSIG  -.97 bar to 69 bar

Fluke-700G10 Pressure Gauge, 2000 PSIG  -.97 bar to 140 bar

Fluke-700G29 Pressure Gauge, 3000 PSIG  -.97 bar to 200 bar

Fluke-700G30 Pressure Gauge, 5000 PSIG  -.97 bar to 340 bar

Fluke-700G31 Pressure Gauge, 10000 PSIG -.97 bar to 690 bar

Fluke-700GA4 Pressure Gauge, 15 PSIA 0 to 1 bar absolute

Fluke-700GA5 Pressure Gauge, 30 PSIA  0 to 2 bar absolute

Fluke-700GA6 Pressure Gauge, 100 PSIA  0 to 6.9 bar absolute

Fluke-700GA27 Pressure Gauge, 300 PSIA  0 to 20 bar absolute

Fluke-700RG05 Pressure Gauge, Reference, 30 PSIG  -0.97 to +2 bar

Fluke-700RG06 Pressure Gauge, Reference, 100 PSIG  -0.83 to 6.9 bar

Fluke-700RG07 Pressure Gauge, Reference, 500 PSIG  -0.83 to 34 bar

Fluke-700RG08 Pressure Gauge, Reference, 1000 PSIG  -0.97 to 69 bar

Fluke-700RG29 Pressure Gauge, Reference, 3000 PSIG  -0.97 to 200 bar

Fluke-700RG30 Pressure Gauge, Reference, 5000 PSIG  -0.97 to 340 bar

Fluke-700RG31 Pressure Gauge, Reference, 10000 PSIG  -0.97 to 690 bar





700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR



Media compatibility

• 10 inH2O, 1, 15, 30 psi: any clean dry non-corrosive gas

• 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic,

non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.







Alte produse FLUKE

RLC-METRU 50 HZ..1 MHZ FLUKE 6306

• 50, 60, 100, 120 Hz 200 Hz to 100 kHz (100 Hz steps)
• 100 kHz to 1 MHz (1 kHz steps) test frequencies
• 0.1 % basic accuracy
• Easy to use, at-a-glance display


TESTER PRIZA DE PAMANT FLUKE 1621

• 3-pole Fall-of-Potential earth testing for basic measurements
• 2-pole resistance measurements for added versatility
• 600 V Cat II


TERMOMETRU INFRAROSU CU CAMERA INTEGRATA FLUKE VT04

• Interval de masurare a temperaturii : -10 °C si +250 °C
• Precizie: ±2°C sau ±2%
• Frecventa de captura a imaginii : 8 Hz
• Banda spectrala infrarosu : între 6,5 µm si 14 µm
• Câmp de vizualizare 28° X 28°
• Suport de stocare Card Micro SD
• Alarma de monitorizare automata


FLUKE 190-502 190-502/S OSCILOSCOP PORTABIL DIGITAL 2X500 MHZ

• 2-canale izolate 500MHz
• Clasa de protectie CAT III 1000 V, CAT IV 600 V
• Multimetru digital dedicat cu 5000 de numărări la modele cu două canale
• Măsurători automate avansate, energie (Vpwm, VA, W, PF) ™ timp (mAs, V/s, w/s)
• Clasa de protectie IP-51 pentru praf şi lichide pentru a rezista in medii dificile
• Porturi USB izolate


FLUKE II905 CAMERA ACUSTICA INSPECTII SI DETECTIE SCURGERI AER COMPRIMAT

• Detectare vizuală ușoară, rapidă și sigură a scurgerilor de gaz comprimat cu modul LeakQ, inclusiv dimensiunea estimată a scurgerii și costul.
• Ecranul tactil LCD de 7" suprapune o hartă sonoră peste imagini vizuale, facilitând identificarea rapidă a locației scurgerii.
• Funcționalitățile integrate de etichetare și adnotare vizuală și textuală oferă detalii importante pentru a optimiza raportarea și acțiunile ulterioare.
• Încărcare wireless în deplasare pe Fluke Connect


CLESTE AMPERMETRIC DE CURENT TRUE-RMS AC/DC FLUKE 374

• iFlex fexible current probe compatible
• 600 A AC and DC current measurement with fxed jaw
• 2500 A AC current measurement with iFlex (sold separately)
• 600 V AC and DC voltage measurement
• True-rms AC voltage and current
• 6000 O resistance measurement
• 1000 µF capacitance measurement


CLESTE AMPERMETRIC DE CURENT HVAC 600A FLUKE 902

• Designed for HVAC applications
• capacitance, DC Current (µA), and temperature measurements
• Small body and jaws


ANALIZOR PORTABIL CALITATE ENERGIE FLUKE 43B

• Power Quality Analyzer Measures power (W, VA, VAR) and power factor (PF, DPF)
• Oscilloscope Dual-channel scope 20 MHz bandwidth
• Multimeter
• Recorder
• Harmonics Up to 51st
• Power One and three phase

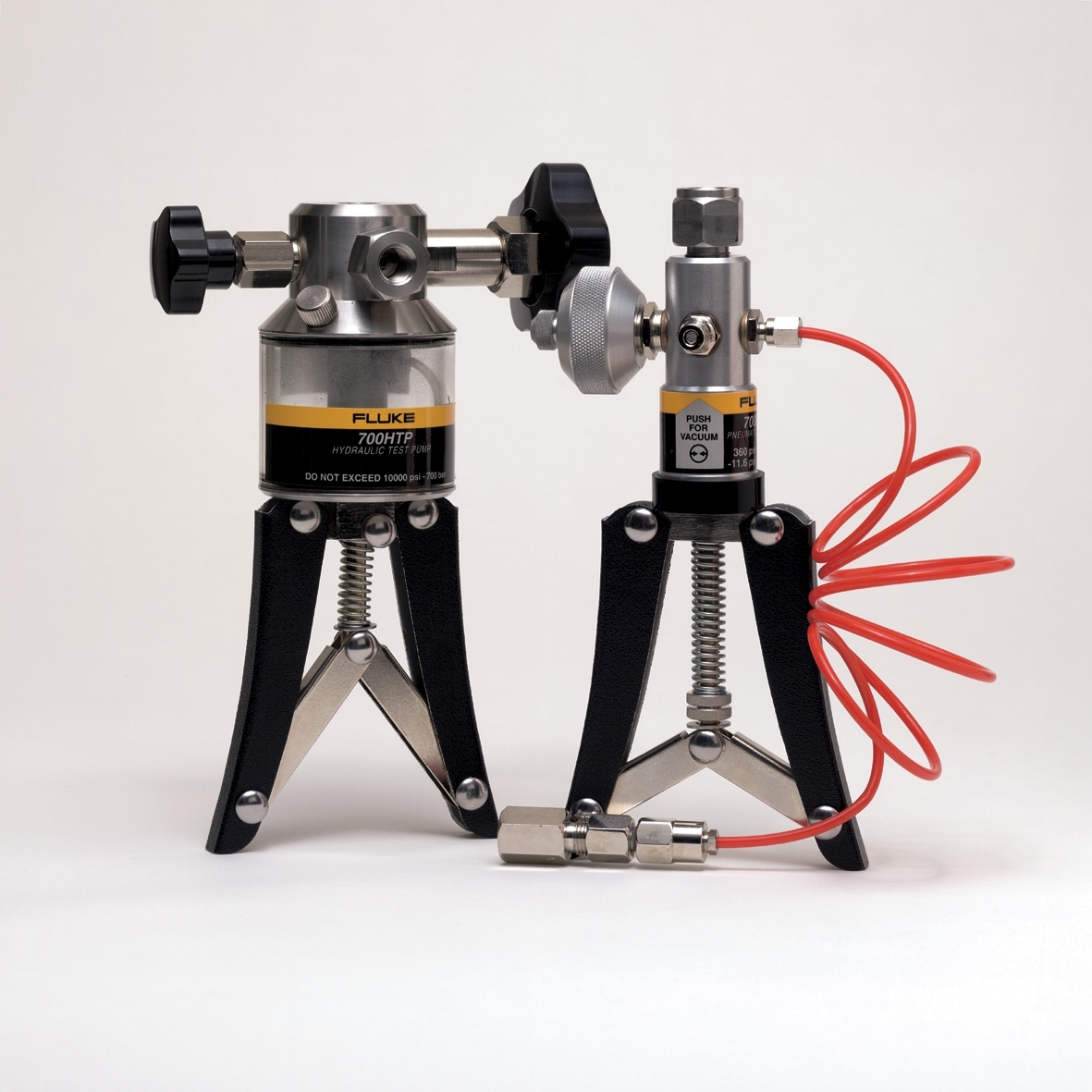

POMPA PNEUMATICA CALIBRARE PRESIUNE FLUKE 700PTP-1
