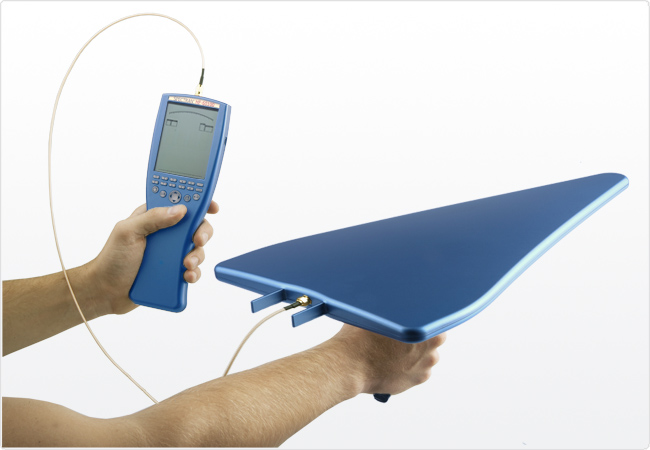

Antena de banda larga directiva castig 380MHz..18GHz Aaronia HyperLOG 30180

Cod: Aaronia HyperLOG 30180




Brosura produs PDF, 0.54 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Directional Logarithmic-Periodic
  • Frequency range: 380MHz to 18GHz
  • Max. input power: 100W AM (400MHz)
  • Nominal impedance: 50 Ohm
  • VSWR: <1:2,5 (typ.)
  • Gain: 5dBi (typ.)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Calibration points: 1163 (10MHz-steps)
  • Dimensions (L/W/D): 590x360x30 mm
  • Weight: 1000gr
  • Warranty: 10 years



Highlights:

  • Includes exhaustive calibration data (on CD)
  • Special designed radome for perfect antenna protection
  • Gold coating for stable performance
  • Wide bandwidth
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact and sturdy design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (380MHz - 18GHz):

  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • 5GHz WLAN
  • PAR Radar
  • Directional Radio
  • Miscellaneous satellite applications
  • etc.


Accesorii standard

  • Log periodic antenna HyperLOG 30180 for directional measurement
  • Typical calibration data with 1163 calibration points (10MHz steps!) on CD
  • Large aluminum carrying case with foam protection
  • Pistol grip with mini tripod function
  • Aaronia SMA tool set with over-torque protection
