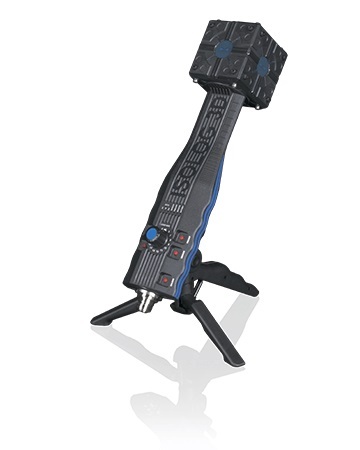

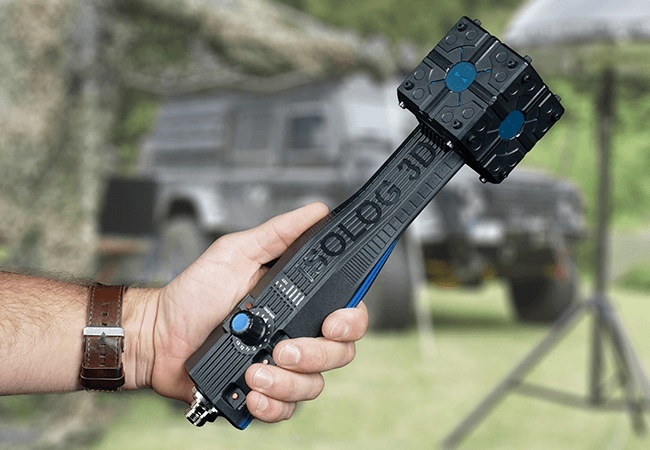

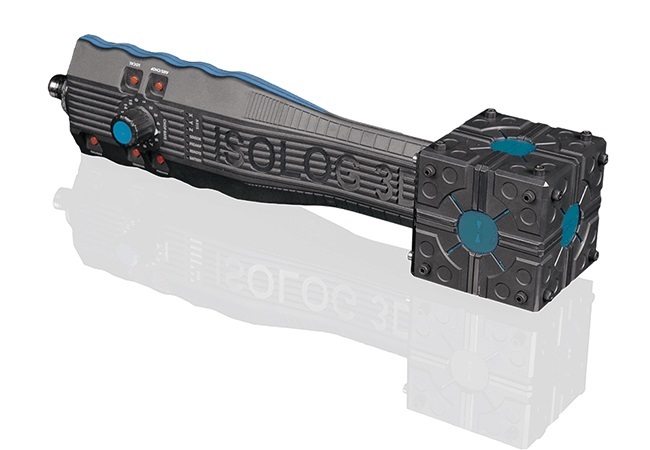

The new IsoLOG 3D Mobile, Aaronia’s latest development, is an ultra light and small isotropic antenna which is compatible to any spectrum analyzer. It just works on the fly and is a perfect plug and play solution for 3D measurements in limited time frames. The antenna requires no software installation, no power connection and no hardware changes. It is connectable via the N (male) connector to any analyzer or oscilloscope.

Each IsoLOG 3D Mobile includes an internal, rechargeable battery, offering a run-time of 6 hours, and a switchable low noise bypass preamplifier. The integrated amp allows measurements of very low-powered signals. Thus, used in bypass mode, the antenna is still usable for high field-strengths. The control of the antenna is done via USB or via manual antenna selection mode, requiring no USB connection.

Aaronia also integrated an ultra fast adjustable �chopper" function. Using special, glitch free RF switches this feature offers an automatic endless antenna rotation/selection with a switching duration of up to 50kHz. This feature transforms the IsoLOG 3D Mobile into a fully functional 3D antenna without the need of any USB software control.

Shipped in a waterproof transport-case, accompanied with a pistol grip with tripod functionality, the scope of delivery leaves nothing to be desire.

Made in Germany:

All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standards so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.

Examples for possible analysis and measurements within frequency range (9kHz - 3GHz):

Unwanted Surveillance Signals
Tetra/BOS
ISM434
LTE800
ISM868
GSM900
GSM1800
GSM1900
DECT
UMTS
WLAN
Microwave
Bluetooth
WiFi
LTE2.6
WiMAX
Directional Radio
etc.

Accesorii standard

Included in delivery

Handheld Isotropic Antenna IsoLOG 3D Mobile

Pistol Grip with Tripod Function

Waterproof Transport-Case

SMA to N Adapter

Power Supply

Alte produse AARONIA

ANTENA TESTATE BANDA LARGA DIRECTIVA 700MHZ..6GHZ AARONIA HYPERLOG 7060X

• Compatible with any Spectrum Analyzer brand
• Design: ACTIVE directional Logarithmic-periodic
• Frequency range: 700MHz to 6GHz
• Nominal impedance: 50 Ohm
• VSWR: <1:2 (typ.)
• Gain: 45dBi (typ.)

AARONIA SPECTRAN HF-8060 V5 ANALIZOR DE SPECTRU IN TIMP REAL 9KHZ..6GHZ

• Spectran HF-8060 V5 (9kHz - 6GHz) Real-Time Handheld Spectrum Analyzer
• Up to 175MHz Real-Time bandwidth
• POI below 1µS
• Real-time I/Q streaming via USB (in preparation)
• Very fast sweep mode, scans 20GHz in less than 20mS

ANTENA EMC ACTIVA BANDA LARGA CU PREAMPLIFICATOR 700MHZ..2.5GHZ AARONIA HYPERLOG 7025X

• Compatible with any Spectrum Analyzer brand
• Design: ACTIVE directional Logarithmic-periodic
• Frequency range: 700MHz to 2,5GHz
• Nominal impedance: 50 Ohm
• VSWR: <1:2 (typ.)
• Gain: 44dBi (typ.)

AARONIA OMNILOG 90200 ANTENA OMNI-DIRECTIONALA IZOTROPICA 700MHZ..2.5GHZ

• Design: Omni-Directional (radial isotropic)
• Frequency range: 700MHz to 2,5GHz
• Max. input power: 40W AM (800MHz)
• Nominal impedance: 50 Ohm
• Gain: -2Bi to 2dBi (typ.)
• Antenna factor: See data sheet graph
• RF connection: SMA (m) or N (see optional adapter)

GAUSSMETRU ANALIZA SPECTRU EMI/ EMC 1HZ..30MHZ AARONIA SPECTRAN NF5030

• Frequency range: 1Hz to 1MHz (30MHz)
• Magnetic field (Tesla): 1pT to 2mT (typ.) expandable up to a amount of Tesla with PBS1
• Magnetic field (Gauss): 10µG to 20G (typ.) (only with option 006)
• Only with Option 009, 24bit resolution: 10nG to 20G (typ.) (Gauss)
• Electric field: 0,1V/m to 20kV/m (typ.)
• Resolution (RBW): 0,3Hz to 1MHz (1-3-10 step)
• Units: V, V/m, T, G, A/m

AARONIA MDF 9400 ANTENA MAGNETICA PENTRU URMARIRE CAMP 9KHZ..400MHZ

• Compatible with any Spectrum Analyzer brand
• Design: Loop
• Frequency Range: 9kHz - 400MHz (1MHz - 40MHz with max. +/- 0,3dB deviation)
• Max. input level: 5W (usable as transmitting antenna)
• Conversion factor: 1 (0 dB A/m is 0dBm)
• Impedance: 50 Ohm
• RF connector: SMA (female)

ANALIZOR SPECTRU TESTARE RADIATIE CAMP ELECTRIC 100MHZ..6GHZ AARONIA SPECTRAN HF4060

• Frequency range: 100MHz to 6GHz
• Amplitude: -90dBm to 0dBm (typ.)
• Lowest sample time: 100mS
• Resolution (RBW): 100kHz to 50MHz
• Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
• Detectors: RMS, Pulse
• Input: 50 Ohm SMA RF-input (f)
• Interface: Mini USB 2.0/1.1

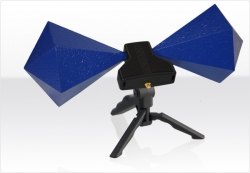

ANTENA ACTIVA BICONICA RADIAL-IZOTROPICA BANDA LARGA 30MHZ..1GHZ AARONIA BICOLOG 30100EX
