New Generation FHD Digital Microscope with 40x Motorised Zoom and Superior Optics.
Excellent Image Quality
New generation modular digital microscope in Full HD with upgraded image sensor and new zoom lens
producing vibrant video at 60 fps and low latency. 40:1 motorised optical zoom, swift centre-spot auto focus, and easy-to-access on-board lens & camera controls. Standard UNC 1/4-20″ mount for assembly on most standard stands.
Endlessly Versatile
Modular design of the F40s in industrial grade aluminium housing and excellent cable management allows easy configuration of your optical inspection system with a wide range of stands, mounts, illuminations and control consoles according to your needs.
Crisp Video with High Frame Rate
Video’s advance signal processing with high refresh rate maintains image coherence and stability,
reduces motion blur, and provides smooth and dynamic images of especially fast-moving objects. Designed for optical inspection, quality control, Metrology, Reporting and Documentation of objects up to 1414x magnification.

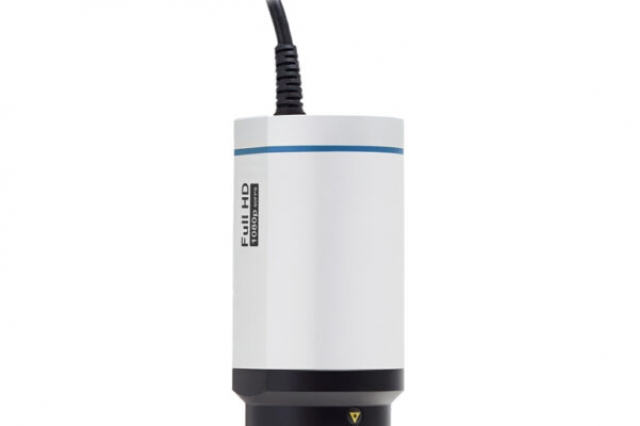

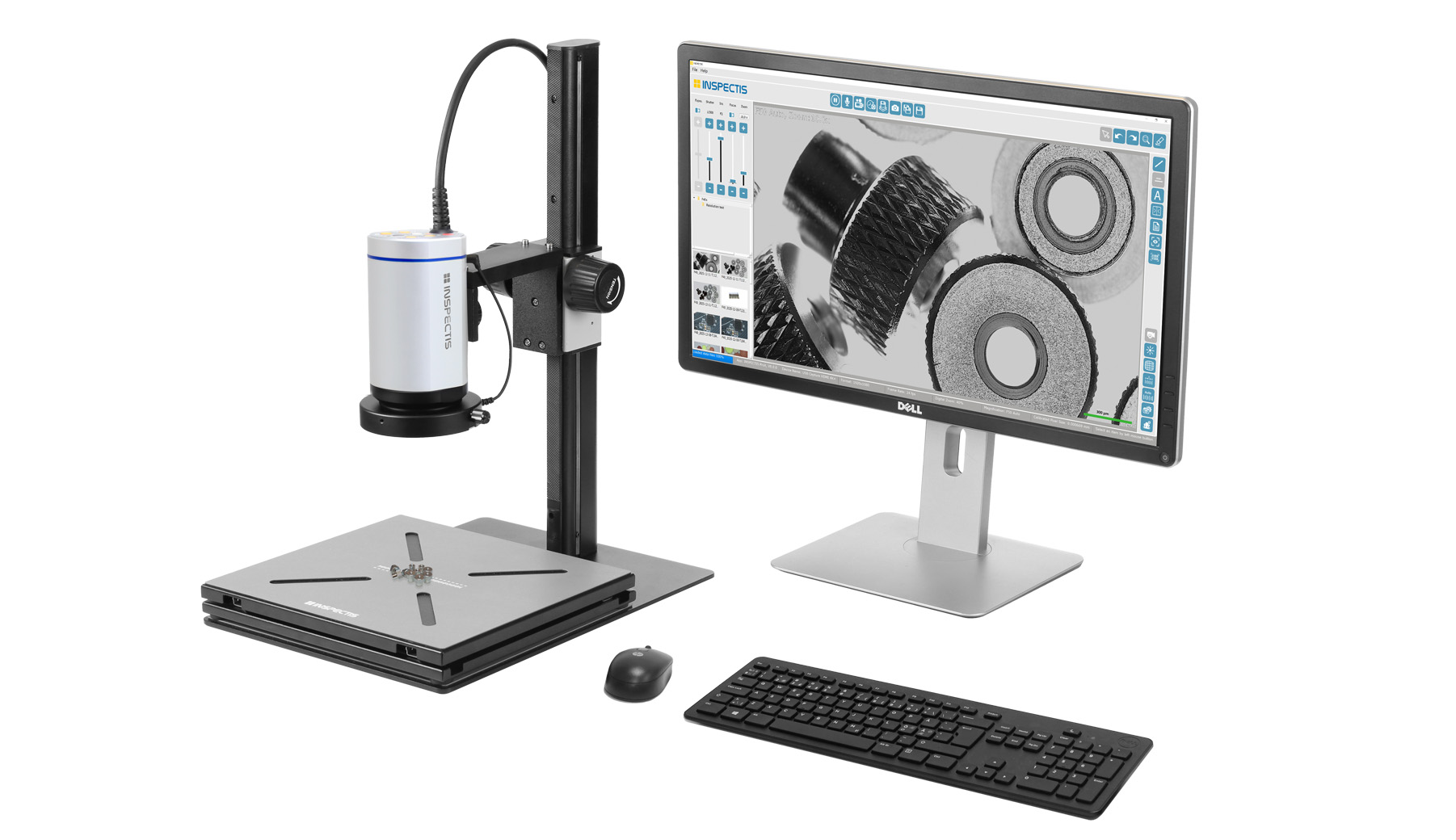

New Generation F40s Modular Digital Microscope with Full HD Performance
Item No. HD-115
For Accuracy and Precision
The system’s standard optics produces ~ 2.5x – 100x magnification (on 28” monitor) maintaining high resolution power. If further magnification is needed, a wide range of diopter Macro Lenses can be added to magnify up to 1414x on screen equal to 0.43mm field of view.
Thanks to its 60fps video and quick auto-focus it is the best choice for live inspection of the moving objects.
Precise Camera and Lens Control

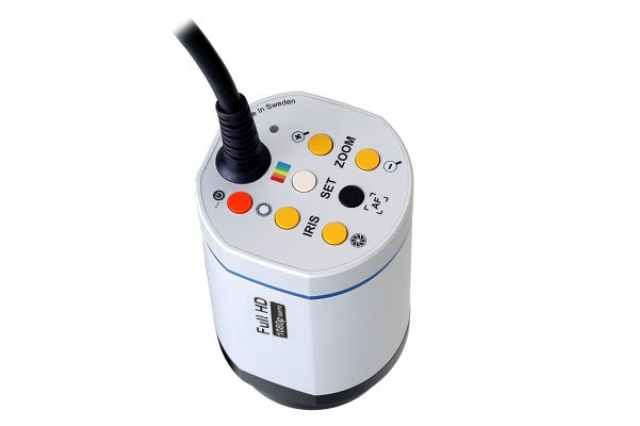

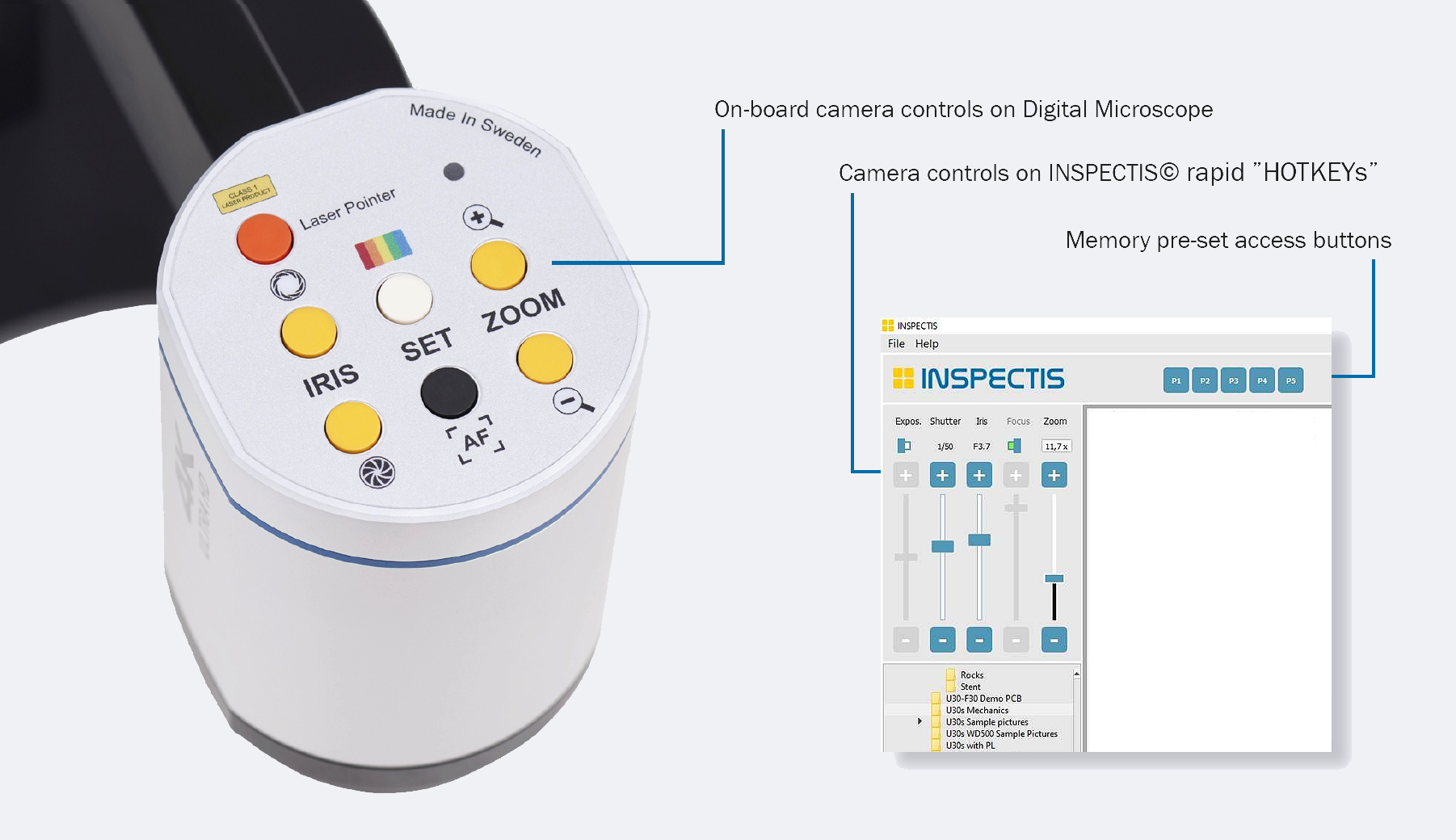

On-board controls of F40s provides direct access to camera and lens attributes like optical zoom, brightness control, focus and colour balance.
SDK is supplied for integration and control of the the digitial microscopes in 3:th party systems.
A wide range of remote controls are available for adjustments of camera and lens attributes, including zoom, brightness, shutter speed, gain, aperture size (iris), manual focus, white balance and various filters.
Features such as the zoom factor display, cross-hair overlay on live image, can be turned on. In addition 2-7 memory settings and quick recalls is provided with remote controls.
Configurable, Endlessly Versatile
Modular design of F40s allows setting up the inspection system with any of the Inspectis’ industrial grade stands, mounts, lenses, software and illumination systems.
Configurable for In-Line Inspection
With its excellent durable single-cable design and compact size, the F40s is suitable for in-line optical inspection and quality control tasks.

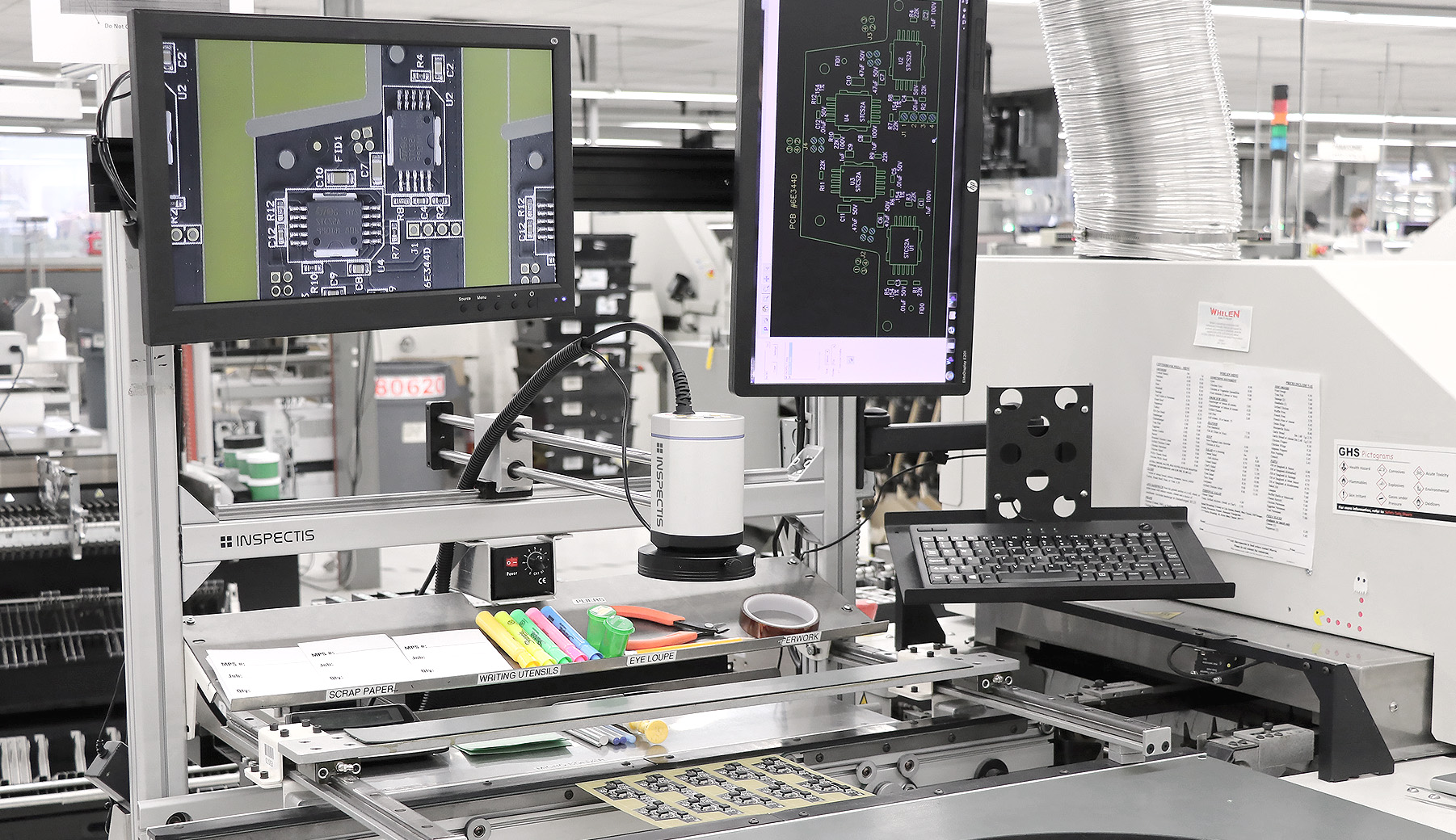

Together with Inspectis industrual grade XY-travel stands, the optical system can be easily adapted to existing SMT production lines over the convayer belt.
Customised Mounting Solutions

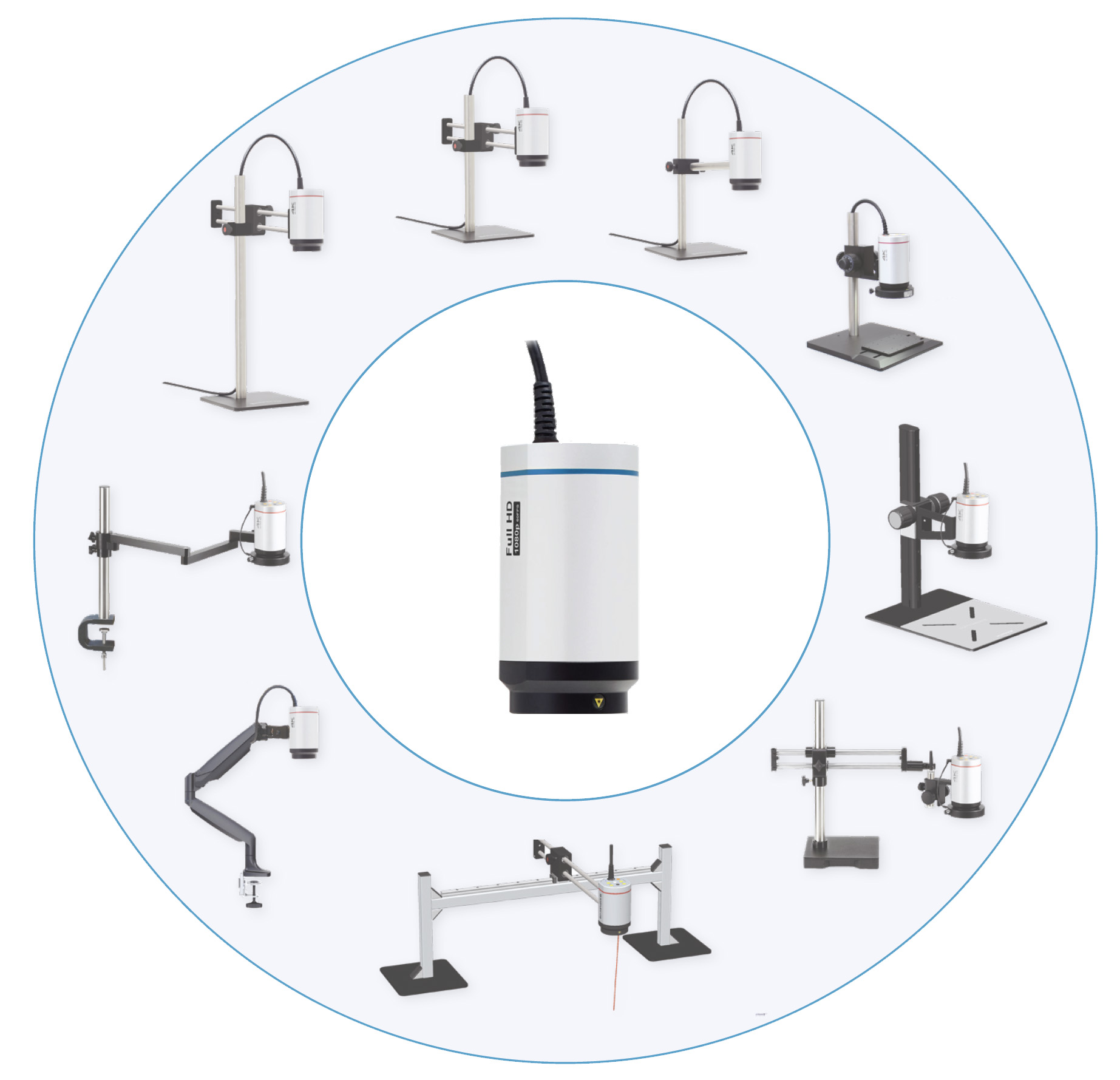

Personalise F40s to your exact requirement by selecting from a comprehensive range of Boom-type, Rack-type or Articulated-arm stands.

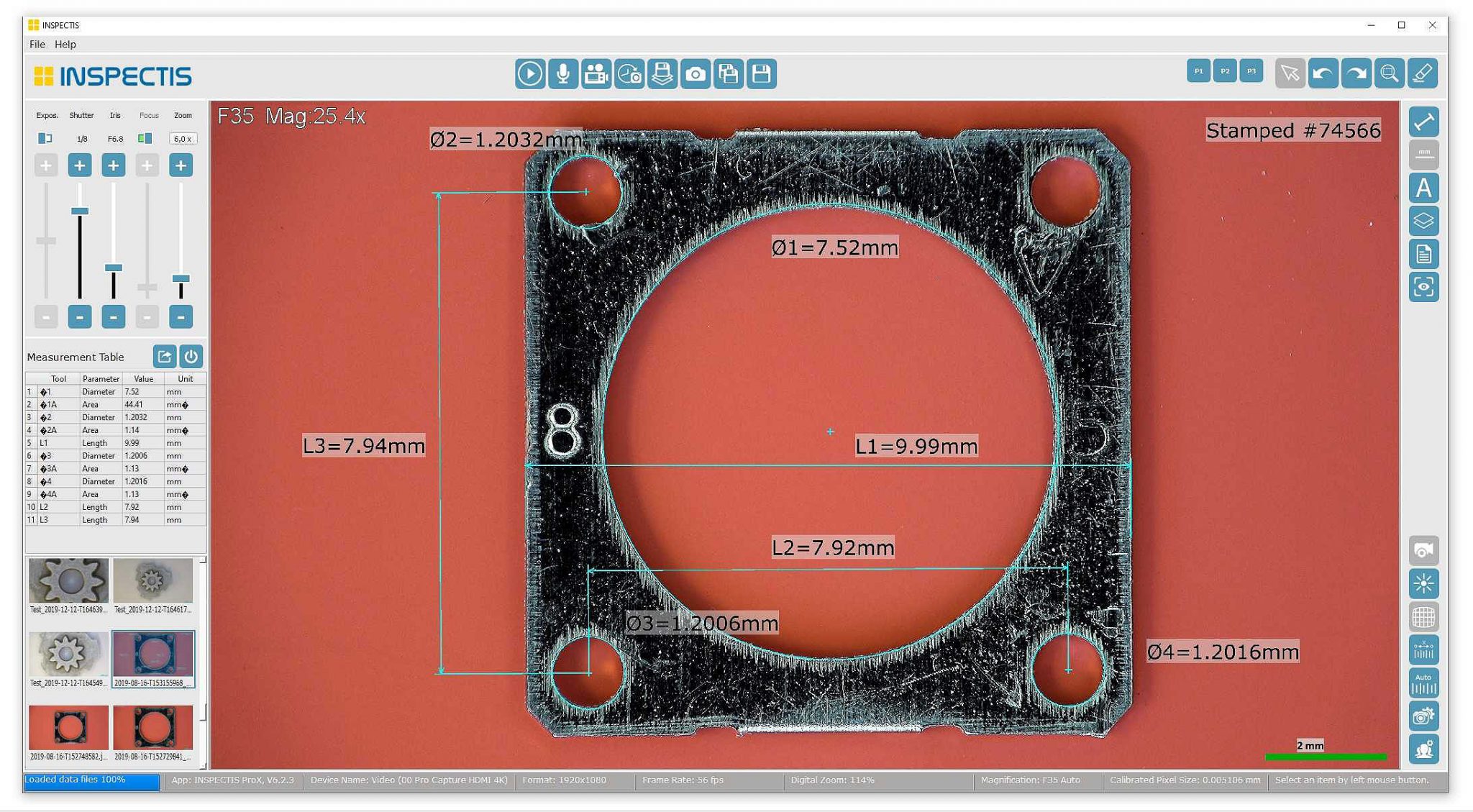

In addition to direct view of the live image on a FHD monitor via HDMI a variaty of software options with different functionality levels are available for F40s.
Remote Control via Software (optional)Auto/Manual Exposure, Frame Stacking, Contrast, Brightness, Gamma, Sharpness, High Dynamic Range, Auto/Manual White Balance, Flip H, Flip V. Foot-switch,
LensMegapixel motorised 40:1 zoom lens with autofocus, iris control and pre-calibrated optics.
Illumination F35s (optional)LED RingLight with Segment Control, UV RingLight, Single-Spot or Double-Spot LED matrix light with gooseneck, LED Transmitted Backlight
