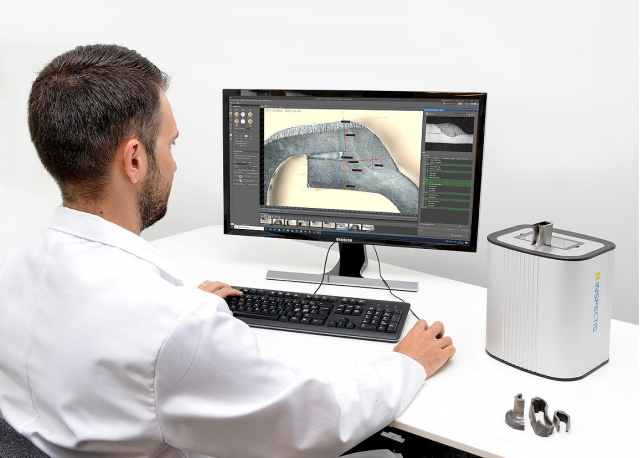

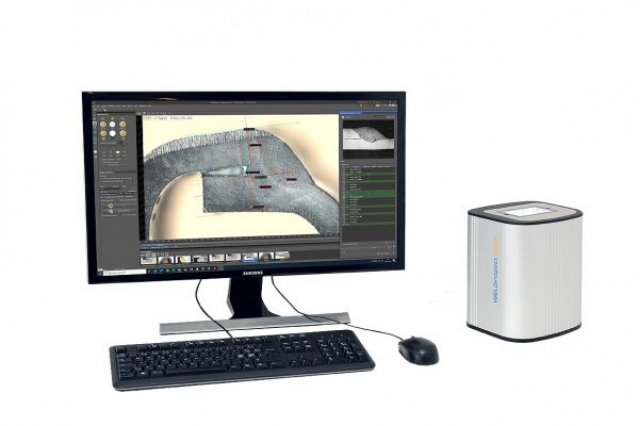

INSPECTIS WELDinspect Digital Inverted Microscope for Weld Analysis and Documentation 4K Ultra-HD

Code: WELDinspect HD-250 UltraHD Ultra-HD 4K



Datasheet PDF, 3.44 Mb


Description

4K Digital Inverted Microscope for Weld Analysis & Measurement
Product No. HD-250

Inverted Microscope for Weld Analysis and Documentation
High-resolution, ergonomic inverted 4K optical system with x26:1 motorised zoom, and precise auto-focus designed for performing accurate weld bead analysis, measurement, and documentation with minimum efforts.

Developed for Ease-of-Use
Turn on the WELDinspect, start INSPECTIS© or NIS-Elements software and place the prepared sample on top of the device. The pre-calibrated inveted microscope ensures that the sample is imaged brightly for analysis and instant measurements.

Dedicated Weld Bead Masurement Software
Powerful and customizable Nikon Metrology NIS-Elements software with user-friendly sequential measurements, pre-defined weld templates and
step-by-step instructions.

Superior Optical Performance
Outstanding 4K image quality, wide zoom range and large Field of View ~ 82 to 3.1 mm (~3.23” to 0.12”), equivalent to ~2.6x to 68x optical magnification or ~7.5 to 196x on screen magnification.

Upgradeable with x35 zoom optics providing ~ 58 to 1.65 mm (~2.28” to 0.063”) FoV, equivalent to ~3.8x to 127x optical magnification or ~10.9 to 370x on screen magnification.

Robust Desgin
The robust aluminium housing with heavy duty steel base-plate and stainless-steel top-plate creates maximum stability and robustness even in harsh environments.

The tempered glass window is specially manufactured to stand scratches and is coated to minimises glare and back-reflection into the optical system.

A cover is included for protection of the device aginst dust when not in use.

Dedicated Software
Nikon NIS-Elements combines powerful image acquisition, analysis, calibrated sequencial measurements, visualisation and data sharing tools.

Pre-calibrated optics with automatic zoom tracking ensures quick and accurate measurements of welds. Built-in camera and lens controls with 8 quick access zoom buttons makes image adjustment and acquisition simple and intuitive.

Fast and Accurate Sequential Measurements
User-friendly controls combined with pre-defined common weld type templates and streight forwards step-by-step sequential measurements ensure quick and accurate measurements.

User definable measurement sequences according to individual standards and acceptance criteria in addition to the pre-defined templates.

Data Export and Report
Export finished measurements inclusing sample pictures as a group to a Report, Microsoft Excel, Clipboard or a File format. The report can further be saved as PDF.

The measurement definition and the report can be edited and re-designed according to your needs.

Specifications System

  • Video OutputUltra HD 2160p/30 fps
  • Imager8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
  • Pixel Size (resolution)1.62 μm x 1.62 μm
  • LensMegapixel motorised zoom with auto-focus. Pre-calibreted for geometrical software measurements.
  • I/O PortsHDMI video output, 5P MiniDin power input, 8P MiniDin PC communication
  • Camera and Lens controlsZoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, Contrast, Gain, Clarity, White Balance, NIR-mode.
  • IlluminationBuilt-in large-aperture white LED ring light with diffuser. (Crossed polariser filter set is ordered separately)
  • Storage / Operating Environment-20° – +60°C, 20 – 95% RH, non-condensing / -5 ° – +40°C, 20 – 95% RH, non-condensing
  • Size / Weight200 (W) x 170 (D)x 235 (H) mm / ~ 5.2 kg.




Presentationvideo WeldInspect








Standard accessories

Included items when you order HD-250
DIM-U, Inspectis Digital Inverted Microscope 8.3MP Ultra HD with 26x Zoom, Auto-focus and large aperture LED RingLight
4K UHD USB3.0 Capture Pro Device (can be switched to PCIe Capture on request)
INSPECTIS© Basics Image Capture software
Nikon NIS Elements D software bundle  with sequential measurement and weld templates (to be ordered seperately)
Inspectis USB communication Cable and HDMI Cable, 1.5m
Inspectis Hardened glass windows (5 pcs kit)
Dust Cover for the instrument
Power Supply
Annual Service and Support for INSPECTIS software (one year)


Recommended options

Options include:

Upgrade INSPECTIS© software from Basics to ProX including USB dongle
Upgrade with Crossed Polariser Filter set
Upgrade to DIM-UX with 35:1 zoom 365x Magnification Optics
Flight Case for WELDinspect and accessories


More products INSPECTIS

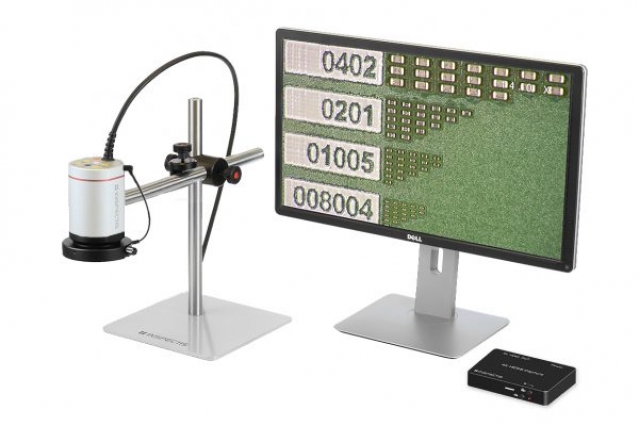

INSPECTIS U30S 4K ULTRA-HD DIGITAL VIDEO MICROSCOPE FOR INSPECTION

• 4K Digital Inspection System
• Easy to Setup and to Use
• Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
• Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
• Pixel Size (resolution) 1.62 μm x 1.62 μm
• Lens Megapixel motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
• Illumination LED RingLight with detachable diffuser and electronic dimmer.


INSPECTIS WELDINSPECT DIGITAL INVERTED MICROSCOPE FOR WELD ANALYSIS AND DOCUMENTATION 4K ULTRA-HD

• Inverted Microscope for Weld Analysis and Documentation
• High-resolution, ergonomic inverted 4K optical system
• with x26:1 motorised zoom, and precise auto-focus
• designed for performing accurate weld bead analysis, measurement, and documentation with minimum efforts.

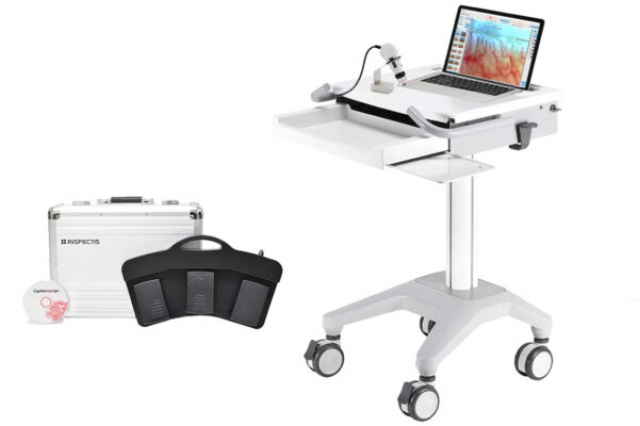

DIGITAL VIDEO PROFESSIONAL NAILFOLD CAPILLAROSCOPY SYSTEM EXTENSIVE CAP-4

• Digital Capillaroscope, Extensive
• Nailfold Capillarocopy system for Professionals
• Extensive digital Capillaroscope system package with Laptop, pre-installed software, 3-pedal foot switch , microscope holder, oil dropper, and medical cart.

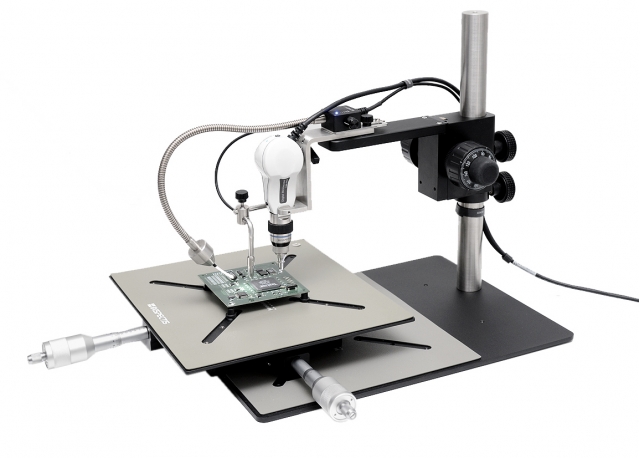

INSPECTIS PRO-X OPTICAL BGA INSPECTION IMAGING SOLDER JOINTS OF ELECTRONIC BGA, IBGA, FLIPCHIP, CSP, CGA AND SMD COMPONENTS
