4K Basic Optical Inspection System with Digital Image & Video Capture HD-016-KIT-CAP
U30s System Package, Capture
4K Digital Inspection System
U30s Capture is a modern optical system configuration for application where visual inspection and quality control along with digital image capture or video recording is desired.
Easy to Setup and to Use

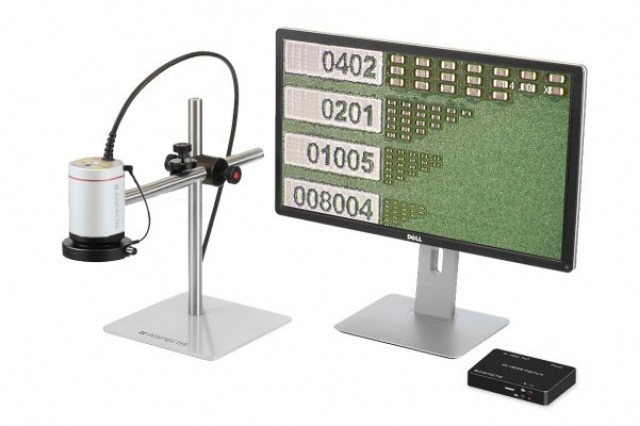

Delivered as a complete optical inspection system with adjustable single-arm boom stand, ring light white LED with electronic dimmer, 4K Image capture & video recorder and a 4K 27″-28″ display.
Wide Range of Applications
U30 Capture is a modern optical system for application where visual inspection and quality control along with digital image capture or video recoding is desigered.
Premium Imaging Quality
Thanks to its sensitive image sensor and superior optics, U30s provides ultra sharp images of the objects with true colours at entire field of view.
An optional built-in laser pointer ( -L ) aims at the area of interest and assists in locating it on the screen. ESD protected ( -E ) and/or hermetic sealed housing (-S) are suppled for custom specific environments.
Ergonomic with Excellent Cable Management

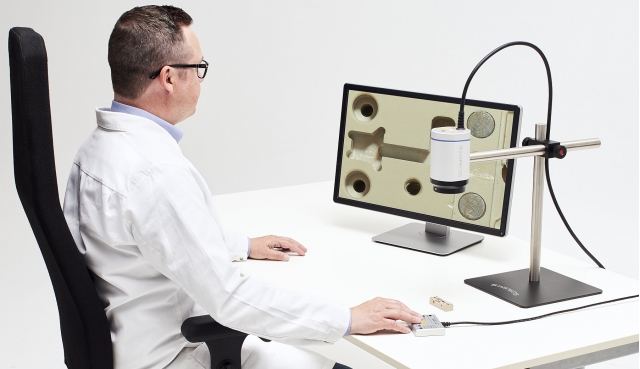

Inspectis digital microscopes provide relief to eyes, neck and shoulders through the unique ergonomic design and 230 mm free working distance. By allowing operators to sit comfortably in a good working position, their inspection tasks can be carried out more efficiently.
Excellent cable management of U30s Capture keeps working bench clean and free.
Easy Image Capture at 4K
U30s Capture system provides still image capture and digital video recording on Micro SD card. Saving still pictures at 8.3 Mp 4K resolution and digital video at FHD format is stright forward without need of a host computer.
Supports date and time stamp on still pictures and recorded videos.
Incident Soft and Sharp Illumination
U30s Capture is supplied with a white LED ring light with electronic intensity control.
The standard diffuser on the ring light creates a smooth soft illumination. For sharp incident lighting, the diffuser can simply be replaced with a transparent optical window provided in the system package.
Smart choice for Optical Inspection & Documentation
U30s creates a crisp and high resolution image of your inspection objects with minimum glare and reflections. Together with the SD-card capture device, documentation of the images is quick and straightforward.
Specifications System
Video OutputUltra HD 2160p/30 fps switchable to FHD 1080p/60 fps
• Digital Capillaroscope, Extensive
• Nailfold Capillarocopy system for Professionals

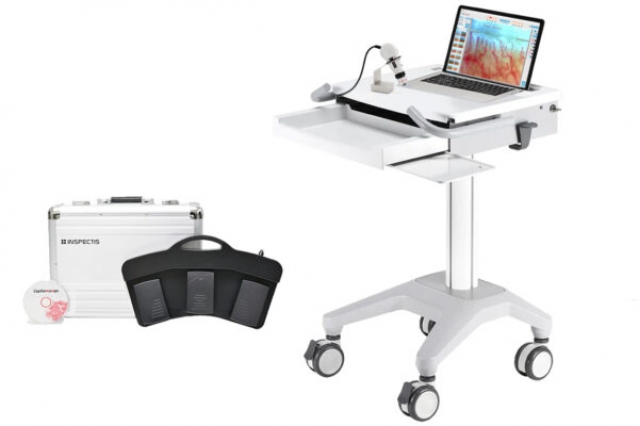

• Extensive digital Capillaroscope system package with Laptop, pre-installed software, 3-pedal foot switch , microscope holder, oil dropper, and medical cart.
• Inverted Microscope for Weld Analysis and Documentation
• Dedicated digital inverted microscope with Full HD image quality
• Large field of view range, ~ 84 to 3 mm (~3.3” to 0.12”), equivalent to ~2.5x to 71x optical magnification or ~ 7.2 to 205x on screen magnification.
• Developed for Ease-of-Use
• New Generation FHD Digital Microscope with 40x Motorised Zoom and Superior Optics.
• Excellent Image Quality
• New generation modular digital microscope in Full HD with upgraded image sensor
• new zoom lens producing vibrant video at 60 fps and low latency. 40:1 motorised optical zoom, swift centre-spot auto focus,
• Video Output 4K 2160p, 60 frames per second, 8.4Mp
• U50s 4k 60fps Digital Microscope System Package
• Vivid 4K Video at 60 fps and Low Latency
• Breakthrough Technology
• Fast and Accurate
• Superiour Optics for Inspection of Fine Details
• 4K Digital Inspection System
• Easy to Setup and to Use
• Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
• Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
• Pixel Size (resolution) 1.62 μm x 1.62 μm
• Lens Megapixel motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
• Illumination LED RingLight with detachable diffuser and electronic dimmer.

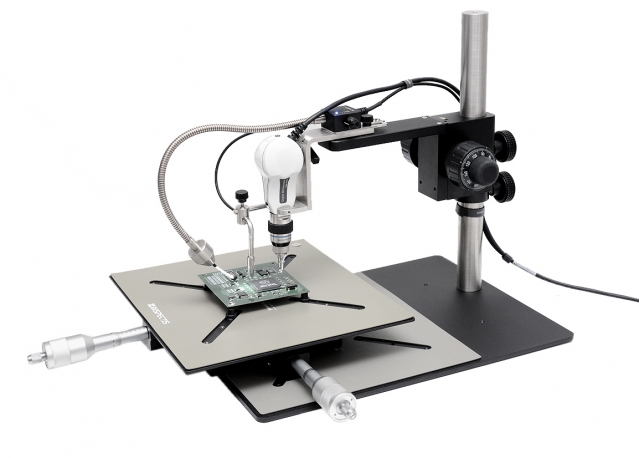

• Advanced systems for side-view optical inspections of BGA, μBGA. FipChip, CSP, CGA solder bumps
• Premium imaging quality for fast and flexible inspection
• measurement and documentation of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA and SMD components.

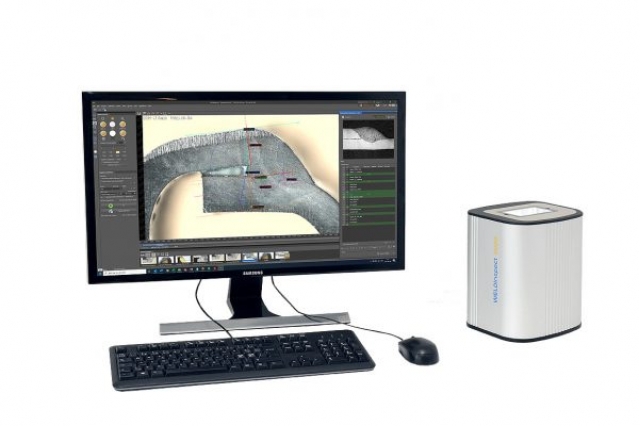

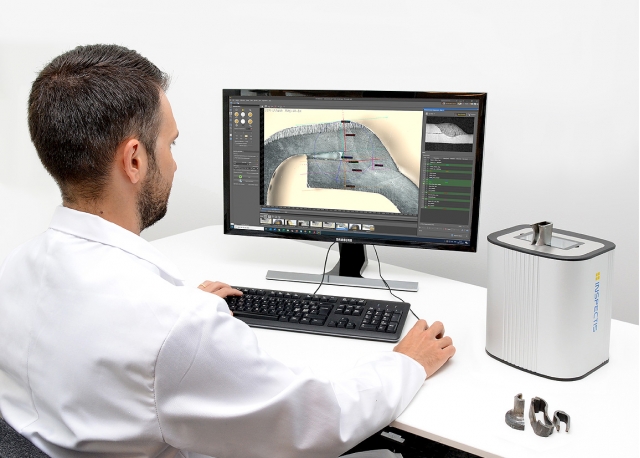

• Inverted Microscope for Weld Analysis and Documentation
• High-resolution, ergonomic inverted 4K optical system
• with x26:1 motorised zoom, and precise auto-focus
• designed for performing accurate weld bead analysis, measurement, and documentation with minimum efforts.
