FHD Digital Inverted Microscope for Weld Bead Inspection & Measurements Full-HD

Code: Weld-Inspect HD-240 Full-HD FHD 1080p



Datasheet PDF, 3.44 Mb


Description

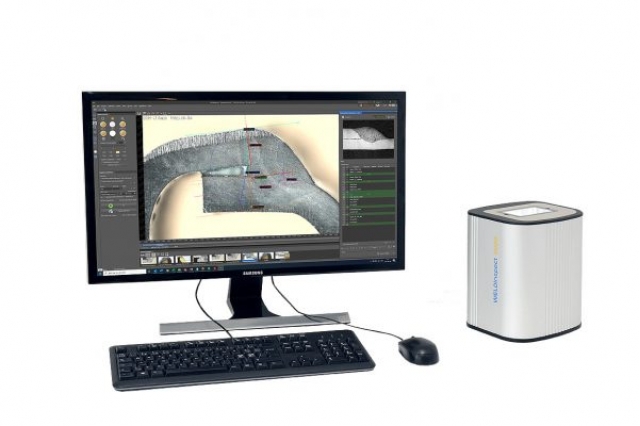

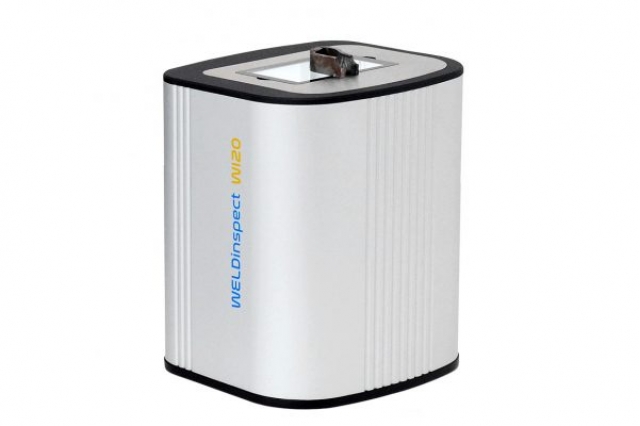

FHD Digital Inverted Microscope for Weld Bead Inspection & Measurements

Inverted Microscope for Weld Analysis and Documentation
Dedicated digital inverted microscope with Full HD image quality. Large field of view range, ~ 84 to 3 mm (~3.3” to 0.12”), equivalent to ~2.5x to 71x optical magnification or ~ 7.2 to 205x on screen magnification.

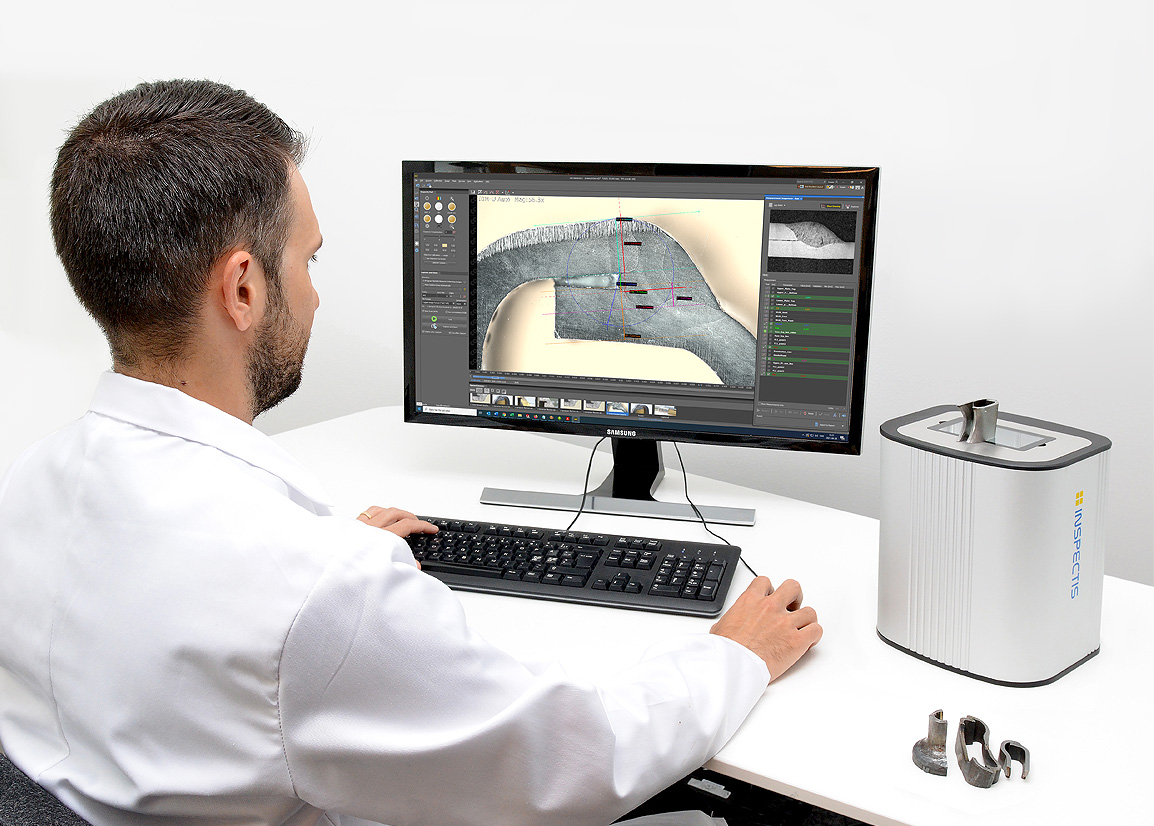

Developed for Ease-of-Use
Turn on the WELDinspect, start INSPECTIS© software and place the prepared sample on top of the device. The inverted, pre-calibrated optical system ensures that the sample is imaged brightly and sharply without any effort.

Dedicated Software
Powerful and customizable Nikon Metrology NIS-Elements software with user-friendly sequential measurements, pre-defined weld templates and step-by-step instructions.


Developed with emphasis on Quality and Cost Efficiency
All-in-One optical inspection system with x26:1 motorised zoom lens and swift auto-focus designed for performing reliable weld bead analysis, measurement, and documentation.

Upgradeable with x35 zoom optics providing ~ 54.3 to 1.66 mm (~2.14” to 0.065”) FoV, equivalent to ~3.9x to 127x optical magnification or ~11.2 to 367x on screen magnification.

Modern and cost-effective inverted imaging system with high performance and robust design.

Robust Desgin for Ease-of-Use
Turn on the WELDinspect, start the software and position the prepared sample on its aperture window. The inverted calibrated optical system ensures the sample to be imaged sharply without any effort.

The robust aluminium housing with steel base-plate and stainless-steel top-plate creates maximum stability and hazzle free operation.

A microscope cover is included for protection of the device aginst dust when not in use.

Robust Desgin for Ease-of-Use
Turn on the WELDinspect, start the software and position the prepared sample on its aperture window. The inverted calibrated optical system ensures that the sample is imaged sharply without any effort.

The robust aluminium housing with steel base-plate and stainless-steel top-plate creates maximum stability and hazzle free operation.

A cover is included for protection of the device aginst dust when not in use.

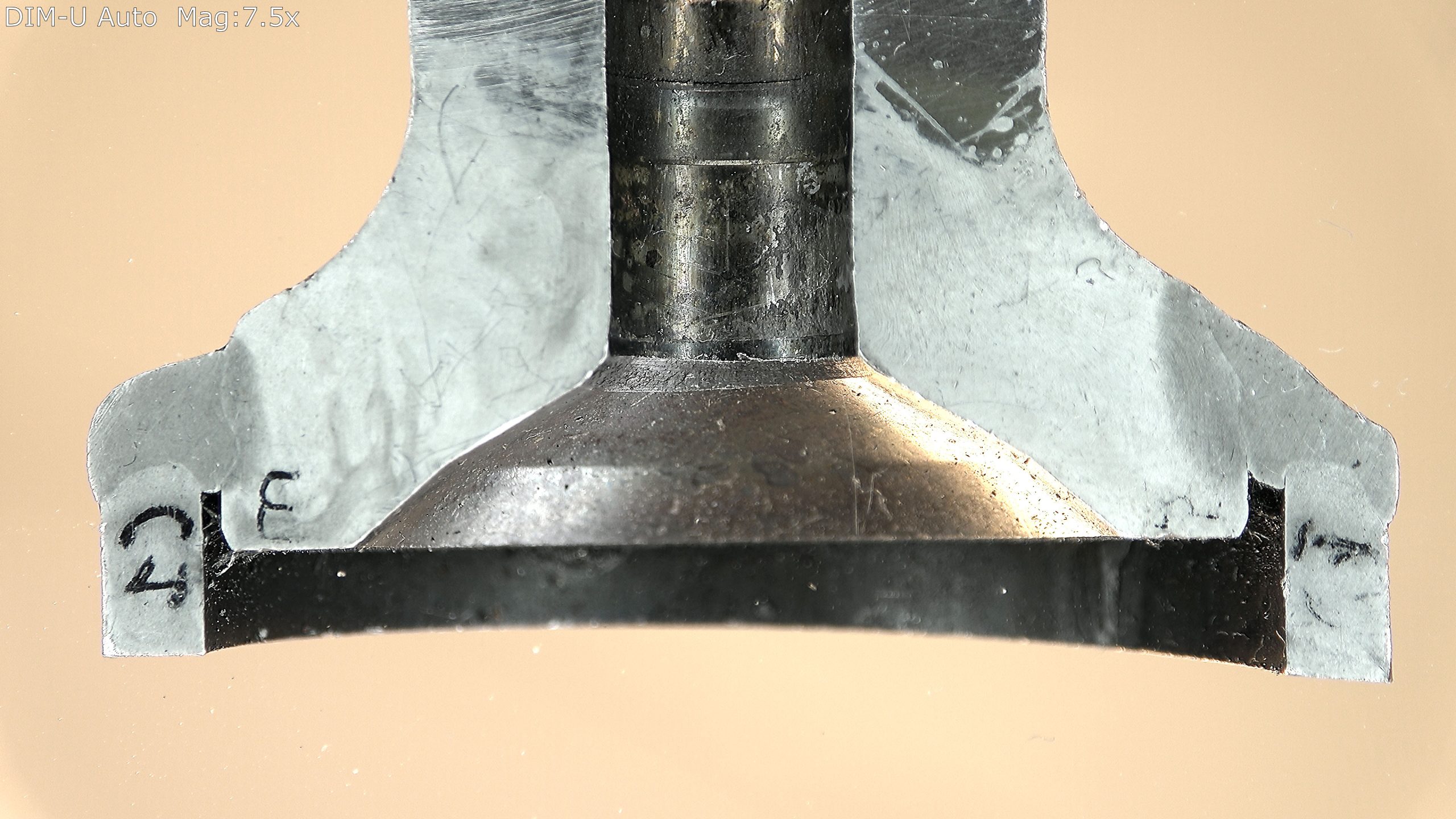

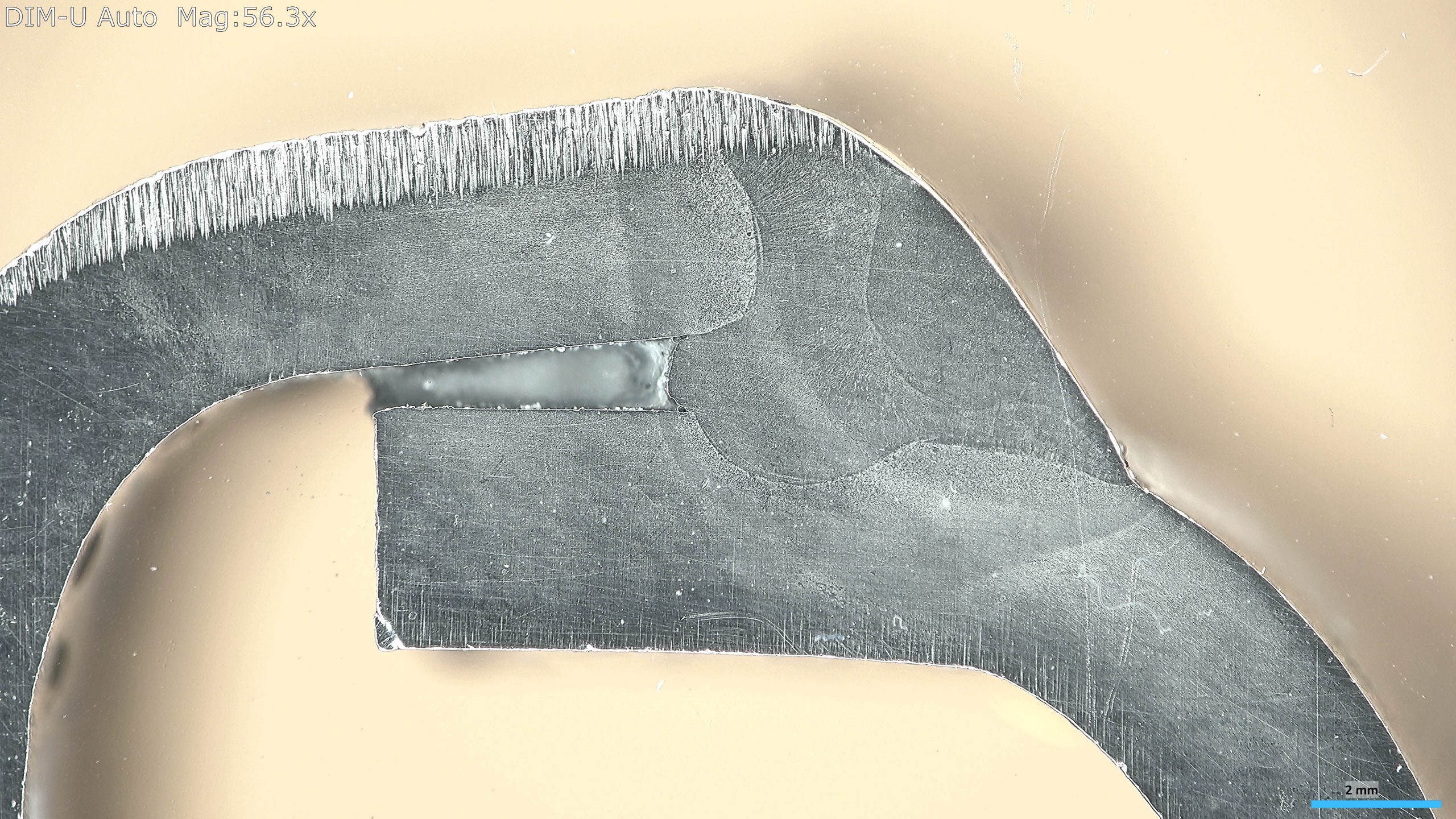

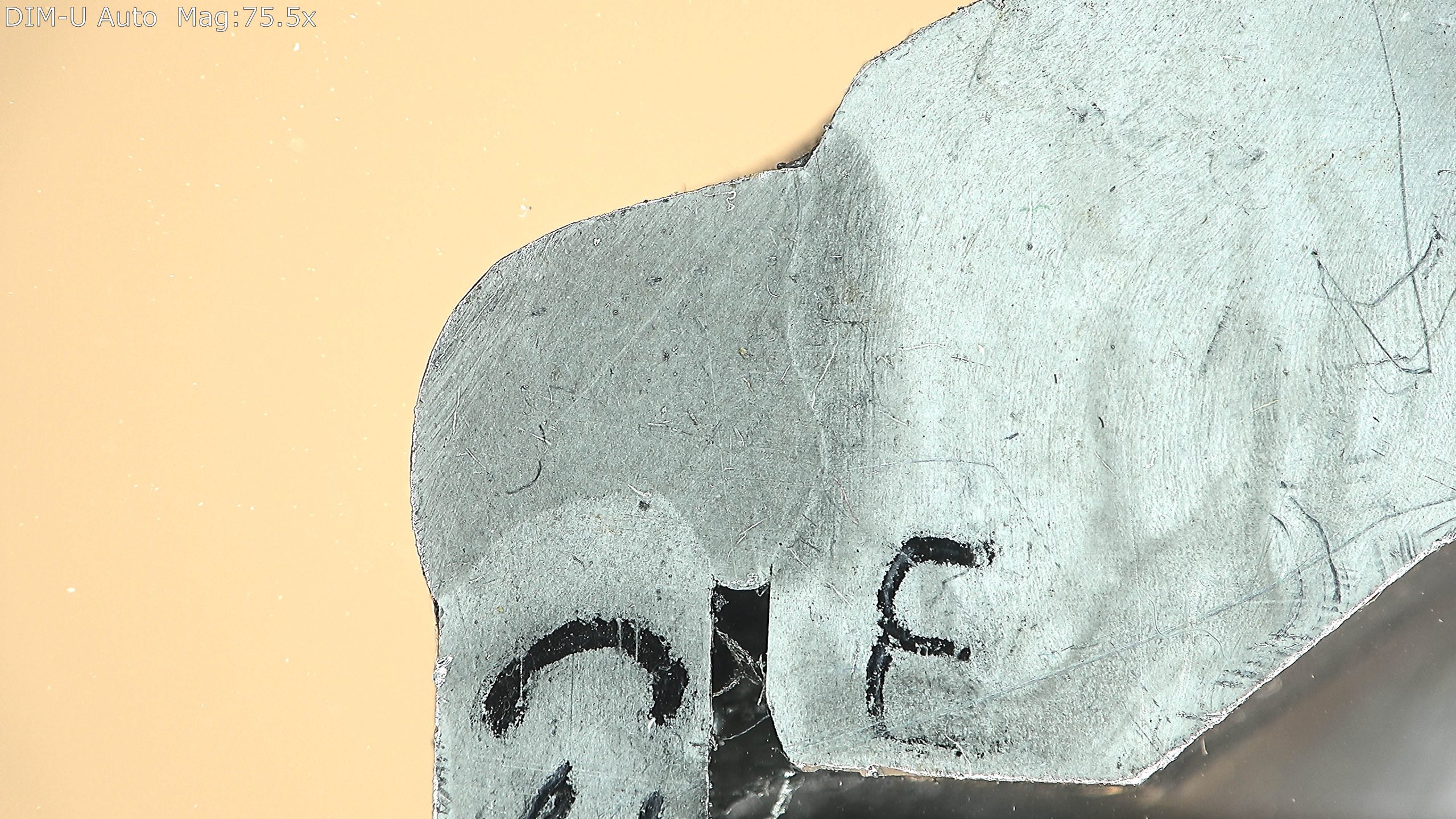

Fast and Accurate Measurements

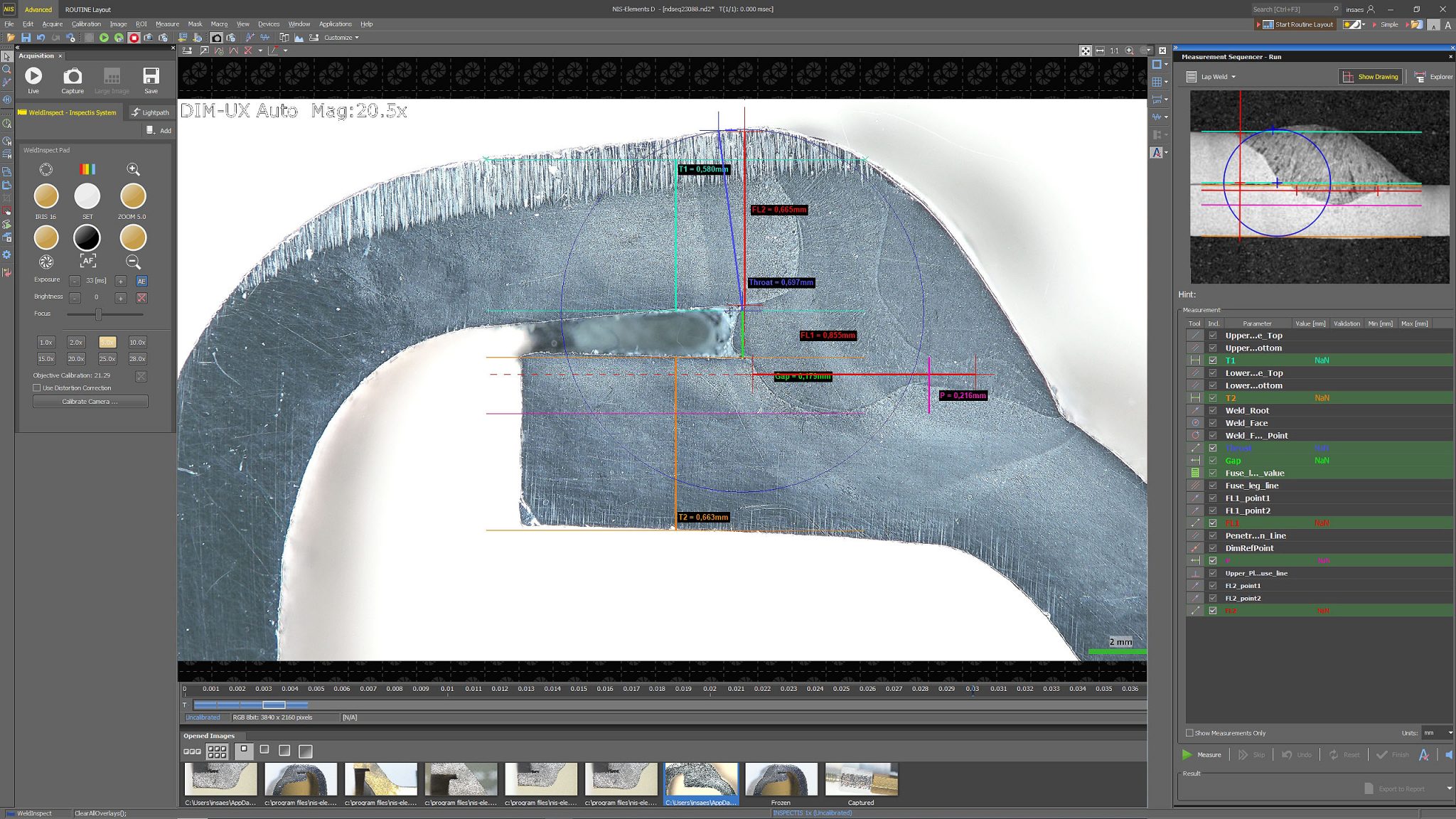

Powered by INSPECTIS© software for fast and accurate image acquisition, analysis, measurement and data sharing.

Pre-calibrated optics with automatic zoom tracking and auto-focus ensures quick and accurate measurements. Built-in camera controls with 16 quick access memory buttons makes image adjustment and acquisition simple and intuitive.

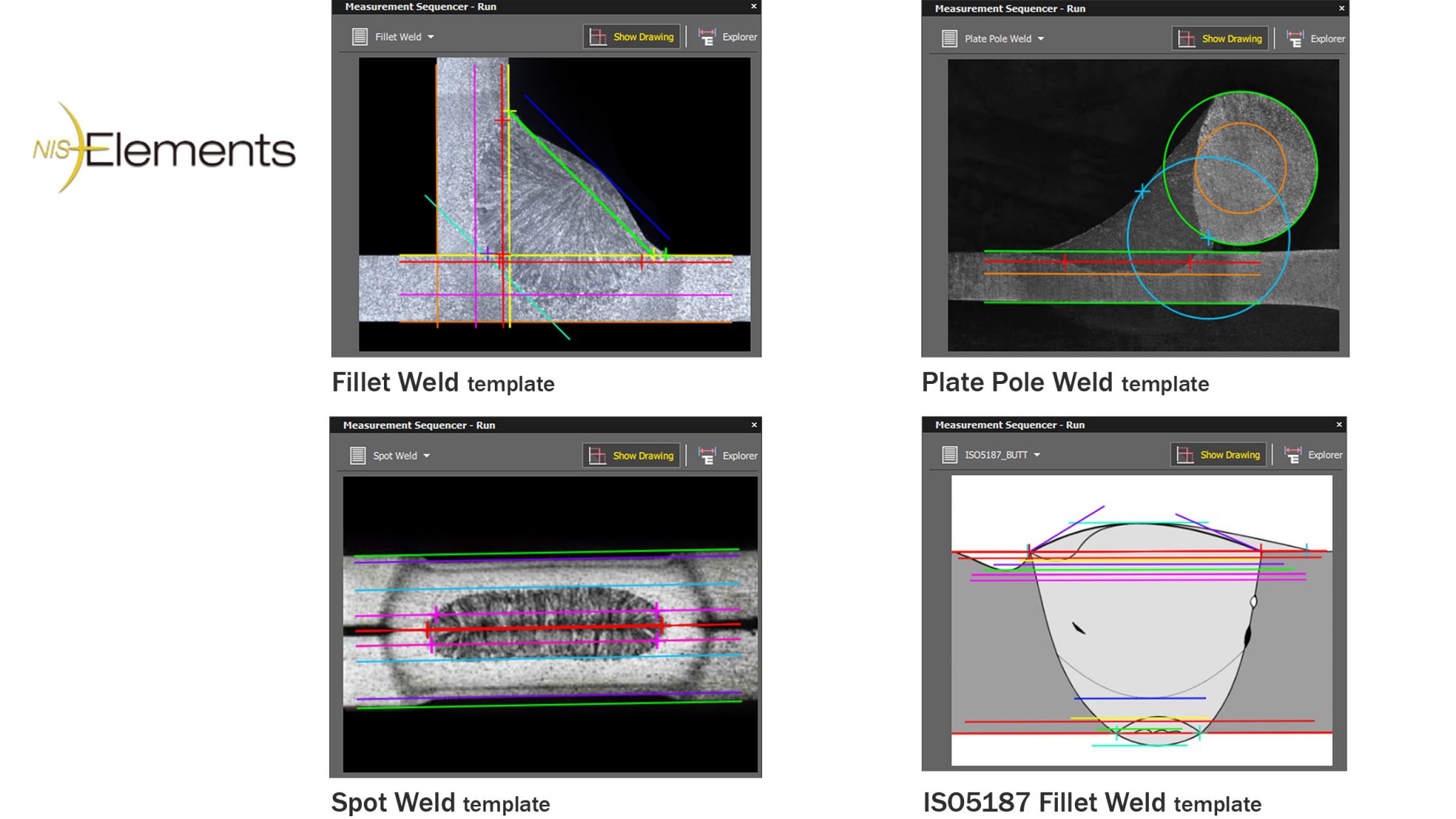

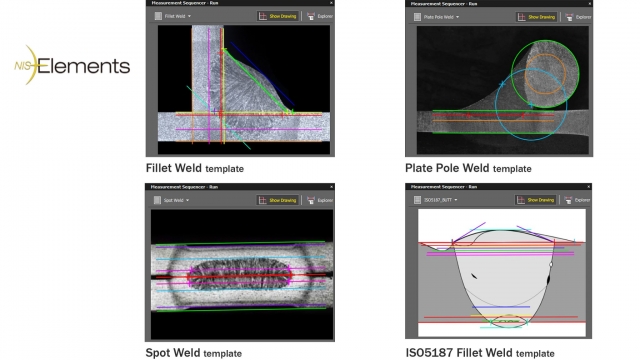

Dedicated Nikon NIS-Elements Software
Powerful and customizable Nikon Metrology NIS-Elements software with user-friendly sequential measurements, pre-defined weld templates and step-by-step instructions.

Use a pre-defined weld template or define your specific measurement sequence according to individual standards and acceptance criteria.

Data Export and Report
Export finished measurements as a group to a Report, Microsoft Excel, Clipboard or a File format. The report can further be saved in PDF format.

The measurement definition and the report can be edited according to the specific customers needs.

Specifications System

  • Video OutputFull HD 1080p/60 fps
  • Imager2.3 Mpixels. 1920(H)x1080(V) 16:9 format. Progressive scan CMOS image sensor
  • Pixel Size (resolution)2.5 μm x 2.5 μm
  • LensHigh-resolution motorised zoom with auto-focus. Pre-calibreted for geometrical software measurements.
  • I/O PortsHDMI video output, 5P MiniDin power input, 8P MiniDin PC communication
  • Camera and Lens controlsZoom, Iris, Manual/Auto Brightness, Manual/Auto Focus, Contrast, Gain, Clarity, White Balance, NIR-mode.
  • IlluminationBuilt-in large-aperture white LED ring light with diffuser. (Crossed polariser filter set is ordered separately)
  • Storage / Operating Environment-20° – +60°C, 20 – 95% RH, non-condensing / -5 ° – +40°C, 20 – 95% RH, non-condensing
  • Size / Weight200 (W) x 170 (D)x 235 (H) mm / ~ 5.2 kg.

video WeldInspect





Standard accessories

Included items when you order HD-240
DIM-F, Inspectis Digital Inverted Microscope 2.1MP Full HD with 26x Zoom, Auto-focus and large aperture LED RingLight
Full HD USB3.0 Capture Pro Device
INSPECTIS© Basics Image Capture software
Nikon NIS Elements D software bundle  with sequential measurement and weld templates (to be ordered seperately)
Inspectis USB communication Cable and HDMI Cable, 1.5m
Inspectis Hardened glass windows (5 pcs kit)
Dust Cover for the instrument
Power Supply
Annual Service and Support for INSPECTIS software (one year)



Recommended options

Options include:

Upgrade INSPECTIS© software from Basics to ProX including USB dongle
Upgrade with Crossed Polariser Filter set
Upgrade to DIM-FX with 35x zoom and 365x Magnification Optics

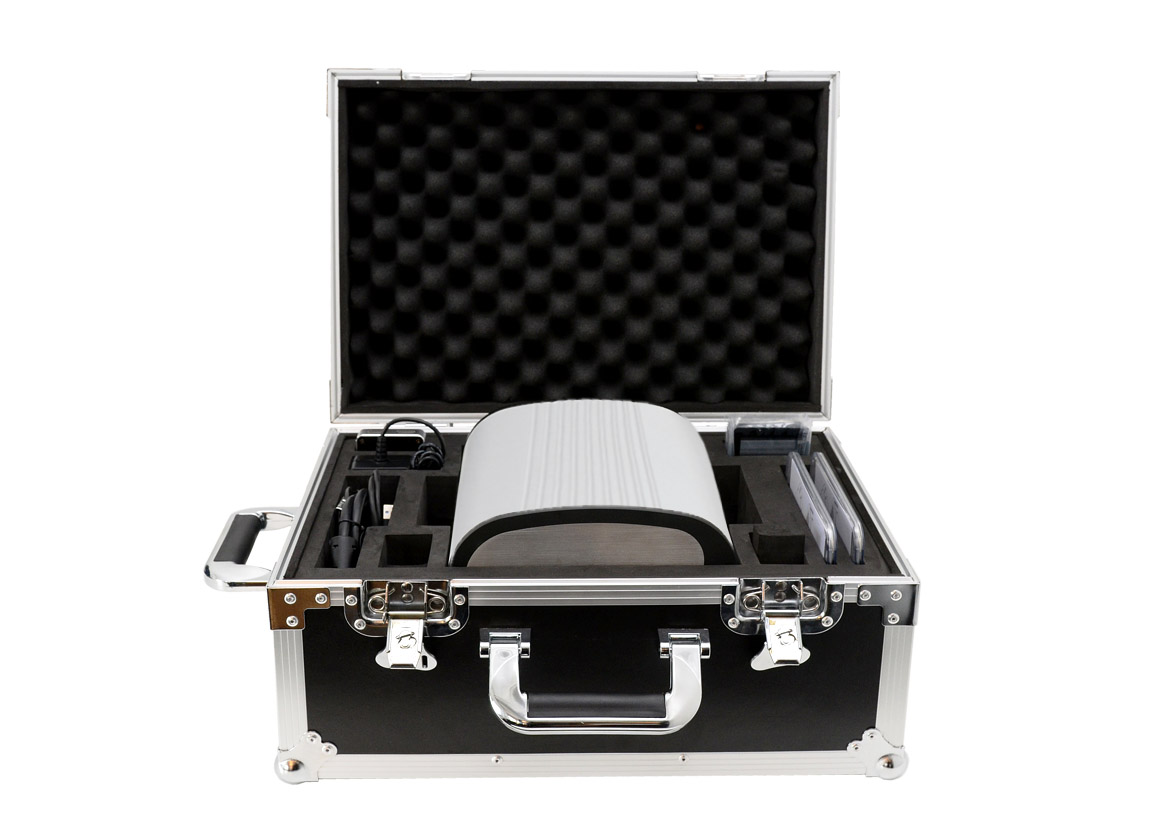

Flight Case for WELDinspect and accessories



More products INSPECTIS

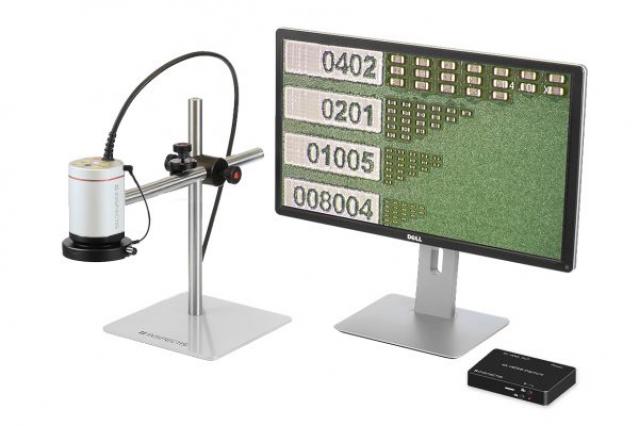

INSPECTIS U30S 4K ULTRA-HD DIGITAL VIDEO MICROSCOPE FOR INSPECTION

• 4K Digital Inspection System
• Easy to Setup and to Use
• Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
• Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
• Pixel Size (resolution) 1.62 μm x 1.62 μm
• Lens Megapixel motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
• Illumination LED RingLight with detachable diffuser and electronic dimmer.

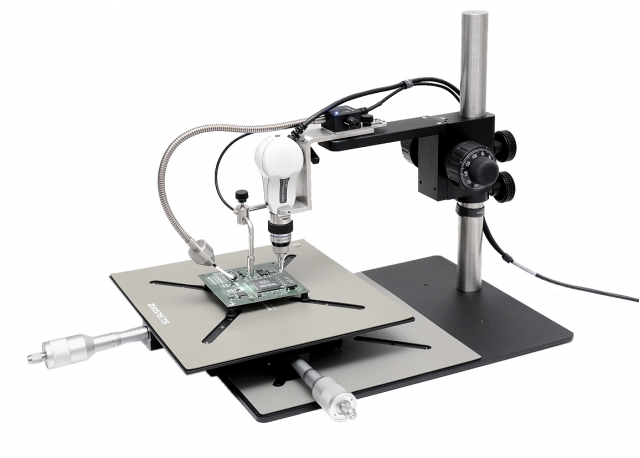

INSPECTIS PRO-X OPTICAL BGA INSPECTION IMAGING SOLDER JOINTS OF ELECTRONIC BGA, IBGA, FLIPCHIP, CSP, CGA AND SMD COMPONENTS

• Advanced systems for side-view optical inspections of BGA, μBGA. FipChip, CSP, CGA solder bumps
• Premium imaging quality for fast and flexible inspection
• measurement and documentation of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA and SMD components.


FHD DIGITAL INVERTED MICROSCOPE FOR WELD BEAD INSPECTION & MEASUREMENTS FULL-HD

• Inverted Microscope for Weld Analysis and Documentation
• Dedicated digital inverted microscope with Full HD image quality
• Large field of view range, ~ 84 to 3 mm (~3.3” to 0.12”), equivalent to ~2.5x to 71x optical magnification or ~ 7.2 to 205x on screen magnification.
• Developed for Ease-of-Use


INSPECTIS F40 FULLHD DIGITAL MICROSCOP FOR INSPECTION

• New Generation FHD Digital Microscope with 40x Motorised Zoom and Superior Optics.
• Excellent Image Quality
• New generation modular digital microscope in Full HD with upgraded image sensor
• new zoom lens producing vibrant video at 60 fps and low latency. 40:1 motorised optical zoom, swift centre-spot auto focus,


INSPECTIS WELDINSPECT DIGITAL INVERTED MICROSCOPE FOR WELD ANALYSIS AND DOCUMENTATION 4K ULTRA-HD

• Inverted Microscope for Weld Analysis and Documentation
• High-resolution, ergonomic inverted 4K optical system
• with x26:1 motorised zoom, and precise auto-focus
• designed for performing accurate weld bead analysis, measurement, and documentation with minimum efforts.


INSPECTIS U50S ULTRA-HD 4K 60FPS DIGITAL MICROSCOPE

• Video Output 4K 2160p, 60 frames per second, 8.4Mp
• U50s 4k 60fps Digital Microscope System Package
• Vivid 4K Video at 60 fps and Low Latency
• Breakthrough Technology
• Fast and Accurate
• Superiour Optics for Inspection of Fine Details

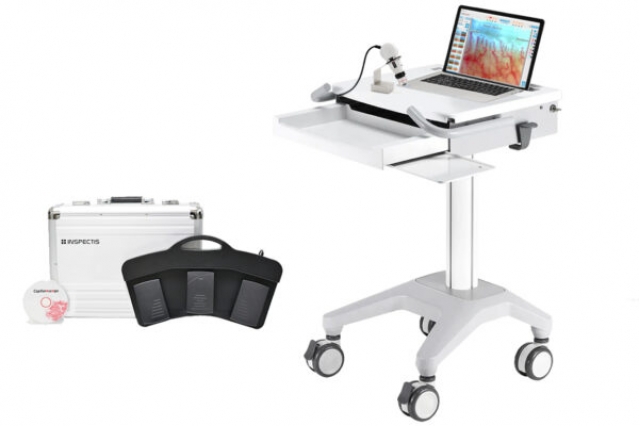

DIGITAL VIDEO PROFESSIONAL NAILFOLD CAPILLAROSCOPY SYSTEM EXTENSIVE CAP-4
