In addition to its high frame rate, U50s sensor provides higher sensitivity and higher dynamic range than previous 4K cameras. Industry-leading 4K60 signal processing with exceptional flicker and flare reduction for best image quality.
Fast and Accurate

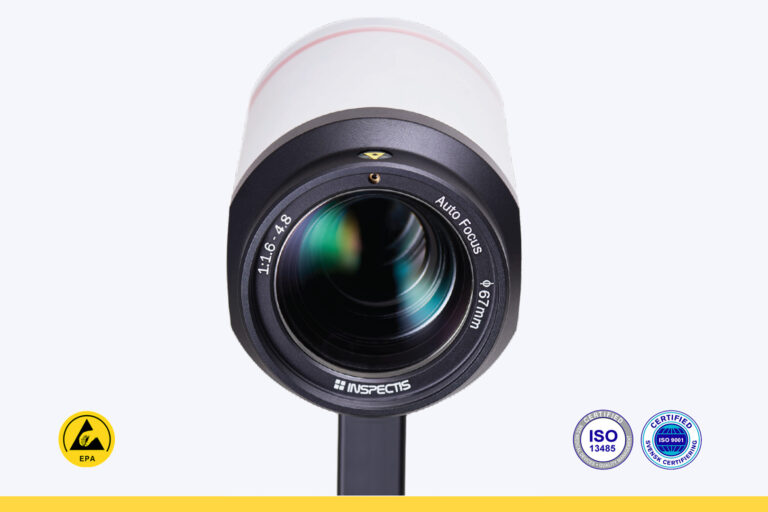

First class F1.6 – 4.8 optics. Advanced high resolution motorised zoom lens with 7-blade aperture and fast
auto-focus. 225 mm free working distance with 25:1 optical zoom and 2x digital zoom. Best choice for High Resolution Optical Inspection, Analysis, Quality Control, R&D, Metrology, Reporting and Documentation of objects up to 1730x on-screen magnification.

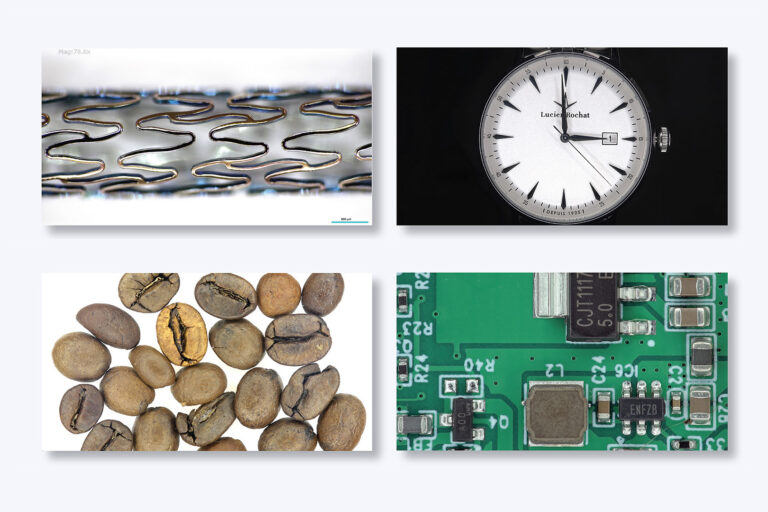

Superiour Optics for Inspection of Fine Details
High-resolution lens design of U50s maintains image clarity and resolution power whether you zoom in for high magnification or zoom out for a large field of view. Video’s high refresh rate maintains image coherence and stability, reduces motion blur, and provides smooth and dynamic images of especially fast-moving objects.
Optimised for Accurate Inspection of Fast Moving Objects.
Winner of the 2025 New Product Introductoin (NPI) Award
Colloquially referred to as the Engineer’s Choice Awards – a nod to the background and independence of the judges – the 18th annual NPI Awards recognize the U50s Digital Microscope as leading new product for electronics assembly.
Evaluation was based on following on the below criterias:
Creativity and innovation
Compatibility with existing technology
Cost-effectiveness
Design
Expected reliability
Flexibility
Expected maintainability/reparability
Performance
User-friendliness
Speed/throughput
Fully Configurable Optical System
Inspectis 4K 60fps Advanced System can be further adapted to your application and has a wide range of accessories. Options included:
Transmitted brightfield white illumination
Incident UV ring-light illumination
+1, +2, 3, +5, +10,+28 or +56 diopter extra lenses
1 to 16 camera and lens configurations can be named and saved in memory for quick recall through the P1 to P16 hotkeys on the software.
Robust and Reliable
Industry grade long lasting digital microscope in robust aluminium housing. Small form factor and excellent cable management thanks to its single compound cable design.

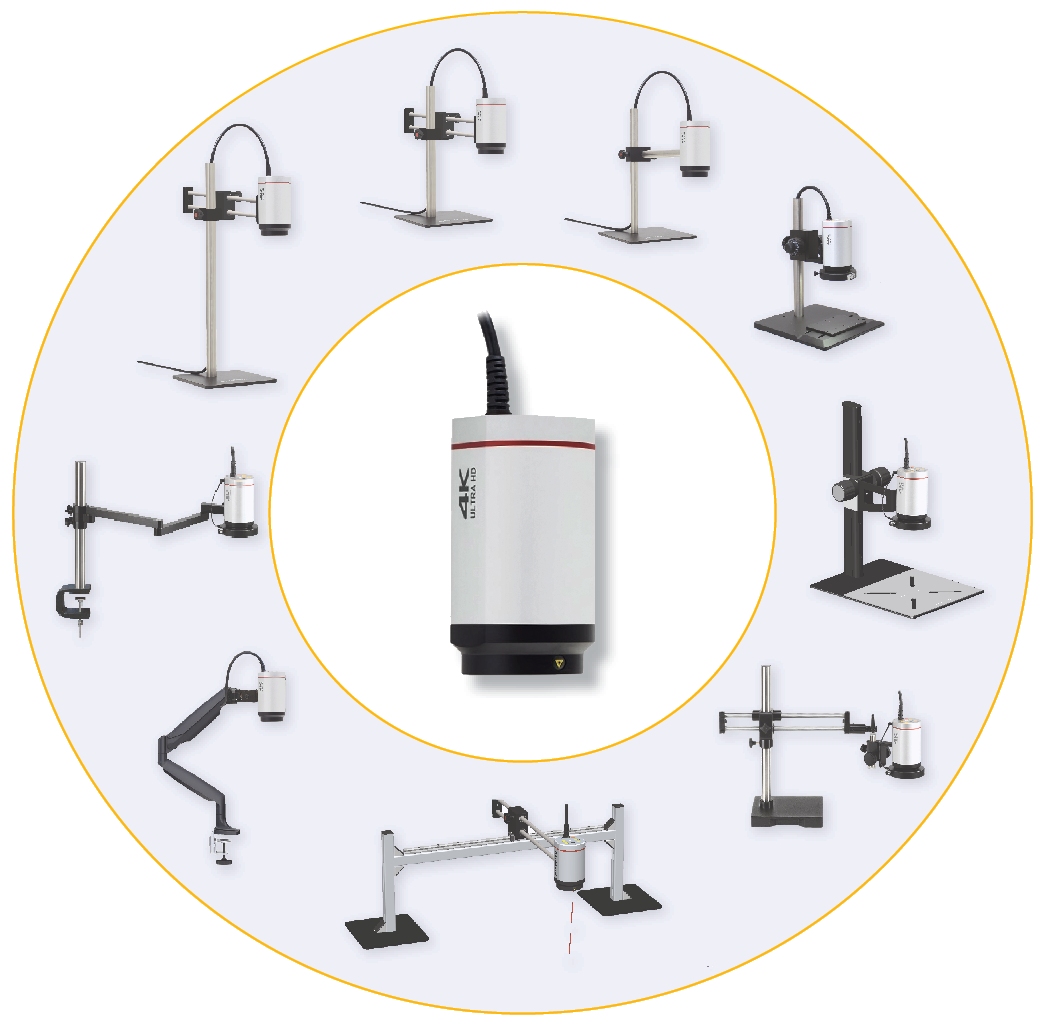

Industrial-quality track stand with large size antistatic coated base and rack & pinion for focus and working
distance adjustment of digital microscope.
Industrial build quality inside and out. Designed and manufactured according to ISO 9001 and ISO 13485 standards.
The Last Microscope You’ll Ever Need!”
State of the art 4K 60fps camera technology
60 frame per second video with almost zero latency
Highly sensitive image sensor with wide dynamic range
Superior lens design with motorised zoom and fast auto focus
25x optical zoom and 2x extra digital zoom with 3D noise reduction
Modular system fully adaptable to different applications and environments
Single cable design for clean installation
Industrial design robust, long lasting all-aluminium housing
Small form factor not obscuring the operator view or occupy the worktable
Fully compatible with a wide range of Inspectis accessories.

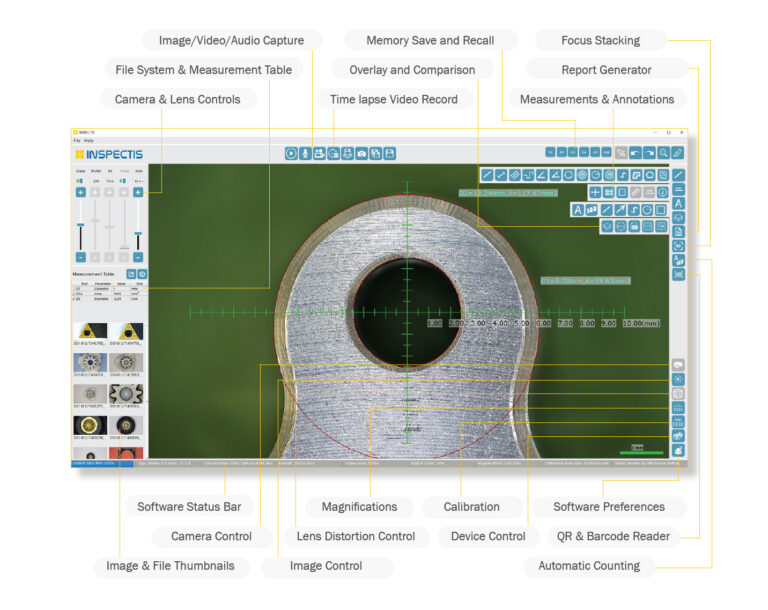

Icon based INSPECTIS software with powerful video processing engine
Specifications
System U50s Advanced System
Video Output4K 2160p, 60 frames per second, 8.4Mp
Optical System25:1 motorised zoom with auto focus and iris control, F1.6 – 4.8
Digital Zoom2x with 3D noise reduction
Pixel Size (resolution)2.0 μm x 2.0 μm
Magnification range2.9x to 151x with stanard lens. Up to 1737x with +56 diopter lens on 28″ monitor
Filed of View211mm at 1x zoom, 4.0mm at 50x zoom, 0.35mm at 50x with +56 diopter lens
Working distance185 – 225mm with standard lens. 18mm with +56 diopter lens
I/O PortsHDMI2.0 video output, 5P MiniDin power input, 8P MiniDin for communication.

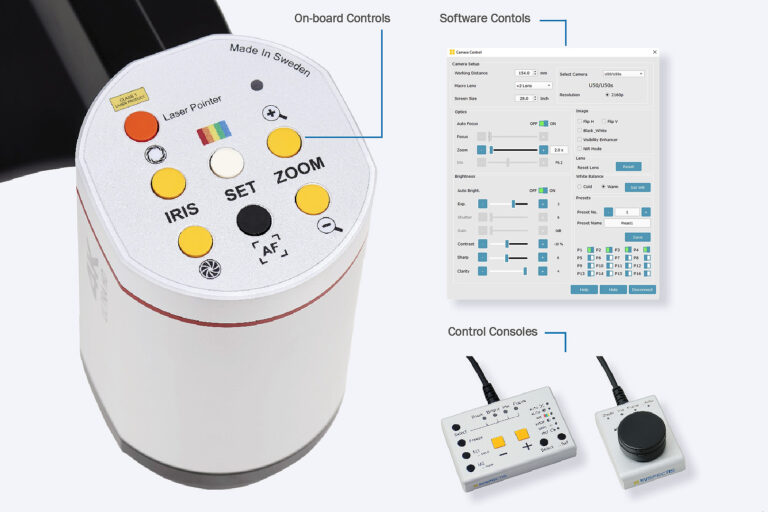

Camera and lens control via top buttonsZoom, Auto-brightness level, Auto Focus on/off, White Balance
Camera and lens control via softwareZoom, Manual/Auto Focus, Iris, Shutter-speed, Manual/Auto Brightness, Gain, Sharpness, Contrast, VE, White Balance, Clarity, FlipV, FlipH, NIR-mode, Memory Save/Recall (16 pcs)
• Video Output 4K 2160p, 60 frames per second, 8.4Mp
• U50s 4k 60fps Digital Microscope System Package
• Vivid 4K Video at 60 fps and Low Latency
• Breakthrough Technology
• Fast and Accurate
• Superiour Optics for Inspection of Fine Details

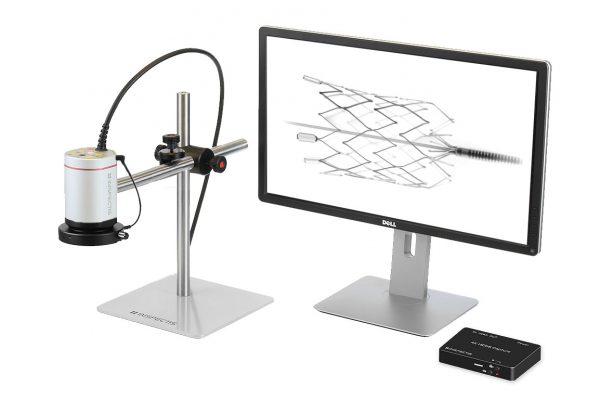

• 4K Digital Inspection System
• Easy to Setup and to Use
• Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
• Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
• Pixel Size (resolution) 1.62 μm x 1.62 μm
• Lens Megapixel motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
• Illumination LED RingLight with detachable diffuser and electronic dimmer.

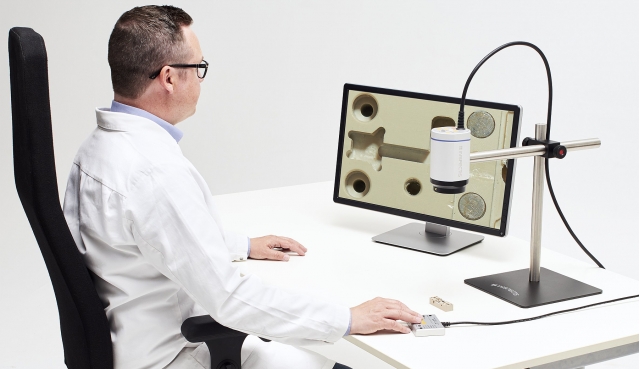

• New Generation FHD Digital Microscope with 40x Motorised Zoom and Superior Optics.
• Excellent Image Quality
• New generation modular digital microscope in Full HD with upgraded image sensor
• new zoom lens producing vibrant video at 60 fps and low latency. 40:1 motorised optical zoom, swift centre-spot auto focus,

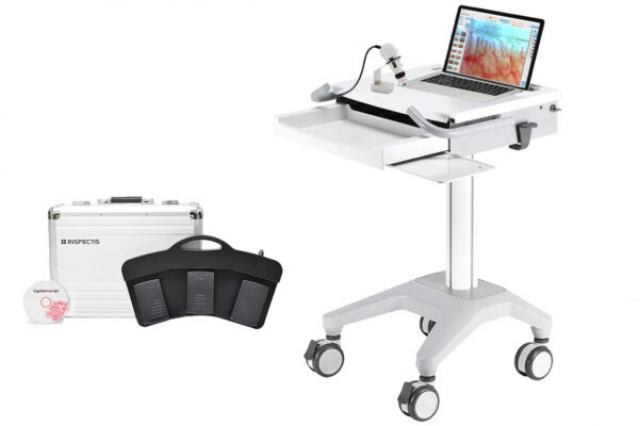

• Digital Capillaroscope, Extensive
• Nailfold Capillarocopy system for Professionals
• Extensive digital Capillaroscope system package with Laptop, pre-installed software, 3-pedal foot switch , microscope holder, oil dropper, and medical cart.

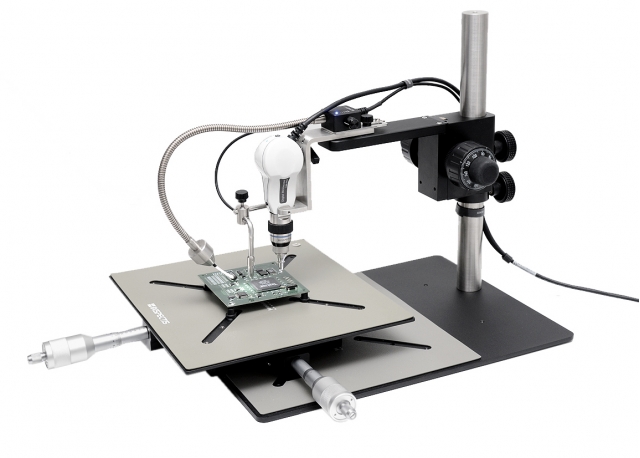

• Advanced systems for side-view optical inspections of BGA, μBGA. FipChip, CSP, CGA solder bumps
• Premium imaging quality for fast and flexible inspection
• measurement and documentation of hidden solder joints of BGA, μBGA. FipChip, CSP, CGA and SMD components.

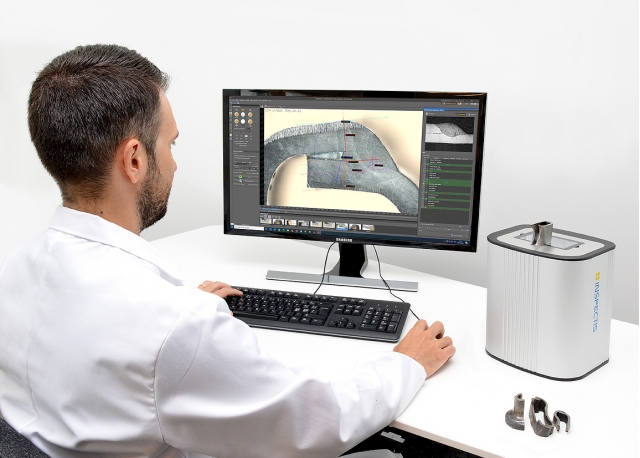

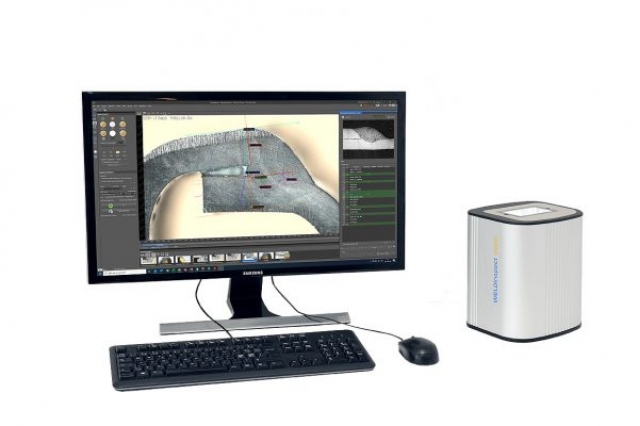

• Inverted Microscope for Weld Analysis and Documentation
• Dedicated digital inverted microscope with Full HD image quality
• Large field of view range, ~ 84 to 3 mm (~3.3” to 0.12”), equivalent to ~2.5x to 71x optical magnification or ~ 7.2 to 205x on screen magnification.
• Developed for Ease-of-Use
• Inverted Microscope for Weld Analysis and Documentation
• High-resolution, ergonomic inverted 4K optical system
• with x26:1 motorised zoom, and precise auto-focus
• designed for performing accurate weld bead analysis, measurement, and documentation with minimum efforts.
Datasheet
PDF, 0.67 Mb
