Professional Nailfold Capillaroscopy System Extensive, CAP-4
Product No. DM-04
Digital Capillaroscope, Extensive
Nailfold Capillarocopy system for Professionals

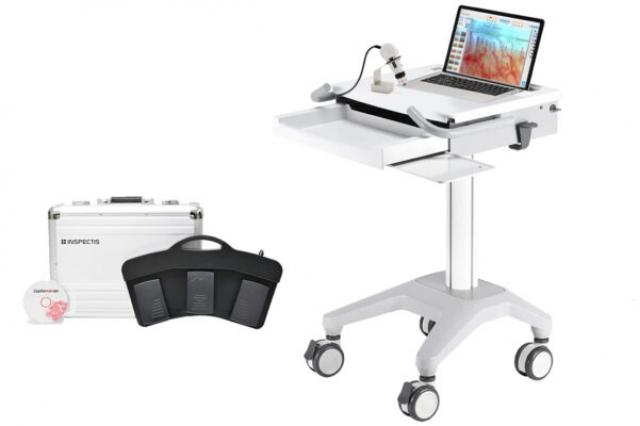

Extensive digital Capillaroscope system package with Laptop, pre-installed software, 3-pedal foot switch , microscope holder, oil dropper, and medical cart.
Non-Invasive
Non-invasive and safe morphological examination and analysis of microcirculation abnormalities related to rheumatic diseases.
Extensive digital capillaroscope sysgtem package delivered with all necessary tools for efficient assessment and recording of pathological and morphological changes in skin capillaries.
Powerful search function finds specific patient information and patient examinations. Adaptable for local or network.
Streamlined Workflow
Hand mapping linked imaging and data storage functions provide guidance to the user during the examination, assessment and follow-up tasks assisting quick and methodical examinations.
Default file names tag each image captured by digital capillaroscope with locational and temporal data.
All functions are presented graphically and accessible via Icons in a user-friendly graphical interface environment.
Data Export and Reporting
Software includes a report generator with user-defined templates. Patient data and comments are automatically imported including high-resolution images for archiving, uploading to other patient journal systems or hand-over to the patient.
Data table is generated automatically and linked to the measured image and printed in Report. Reports saved in PDF for uploading to central journal systems in hospitals or for sharing with patient.
Results can also be exported to Excel or other programs for further analysis and extracting statistics.
Quality & Support
Inspectis quality management system is certified to Medical Devices ISO 13485 and designed to ensure Capillaroscopy systems meet the required specifications for quality and safety.
Inspectis Capillaroscopy equipment as well as corporate management systems comply with regulatory requirements and marketing authorisation.
From the moment you engage with us, you can be confident of receiving the best possible assistance including product training, software upgrades and help in the unlikely event of something going wrong.
Specifications
Capillaroscope
Imager1/2.5″ Colour CMOS, 2592H x 1944V Pixels
Aspect Ratio4:3 at 5MP and 3MP mode. 16:9 at 2MP mode
Pixel Size2.2 x 2.2 μm
Video formats @ frame rate (max)2592×1944 (5 MP) @ 15 fps, 2000 x 1500 (3MP) @ 22 fps,
1920 x 1080 (Full HD) @ 30 fps, 640 x 480 (binning) @ 57 fps
PC interfaceHigh speed USB3.0 or USB3.1. Backward compatible with USB2.0
Image / Video captureSoft-touch button on device, by footswitch and by software
Image / Video formatsStill images in PNG, JPG. Video in AVI at 4 compression modes.
Adjustable parametersBrightness, gamma, sharpness, contrast, glare reduction and high dynamic range
Memories 2 predefined and 2 user-definable with quick access buttons
Dimensions and Weight135 x 50 x 37 mm 205 g
Stand mountStandard Camera mount UNC 1/4″ – 20
Optics
Fix Focal Lens 200xHigh-resolution lens with built-in light and focus adjuster, FoV ~ 1.8 x 1.35 mm @ 3MP
Fix Focal Lens 100x (Optional)High-resolution lens with built-in light and focus adjuster, FoV ~ 3.5 x 2.6 mm @ 3MP
Fix Focal Lens 300x ( optional )High-resolution lens with built-in light and focus adjuster, FoV ~ 1.2 x 0.9 mm @ 3MP
Verifocal Lens 15-45x ( optional )High-resolution varifocal lens with built-in polarisation filters for reflection extinction.
IlluminationIntegrated pure white LED ring light, Colour Temperature 5800K (Kelvin)
Video Capilaroscope
Standard accessories
Included items when you order DM-04
Digital video capillaroscope, 5.0MP image sensor, USB3.0
200x high-resolution lens with built-in illumination

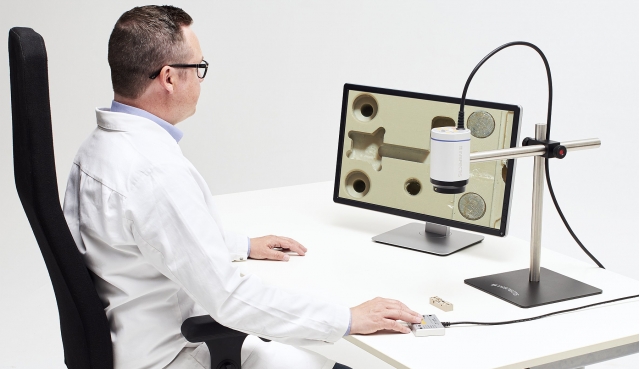

• New Generation FHD Digital Microscope with 40x Motorised Zoom and Superior Optics.
• Excellent Image Quality
• New generation modular digital microscope in Full HD with upgraded image sensor
• new zoom lens producing vibrant video at 60 fps and low latency. 40:1 motorised optical zoom, swift centre-spot auto focus,

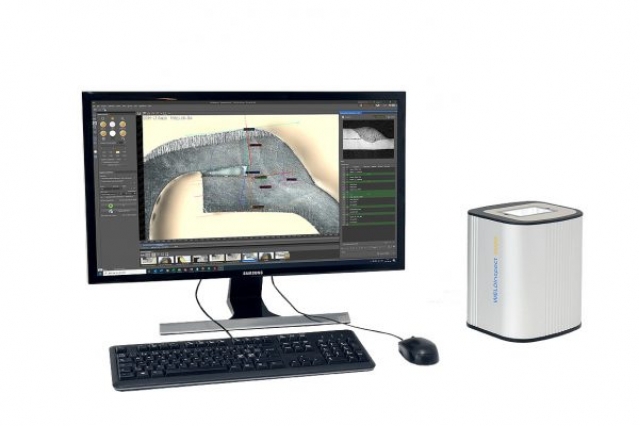

• Inverted Microscope for Weld Analysis and Documentation
• High-resolution, ergonomic inverted 4K optical system
• with x26:1 motorised zoom, and precise auto-focus
• designed for performing accurate weld bead analysis, measurement, and documentation with minimum efforts.

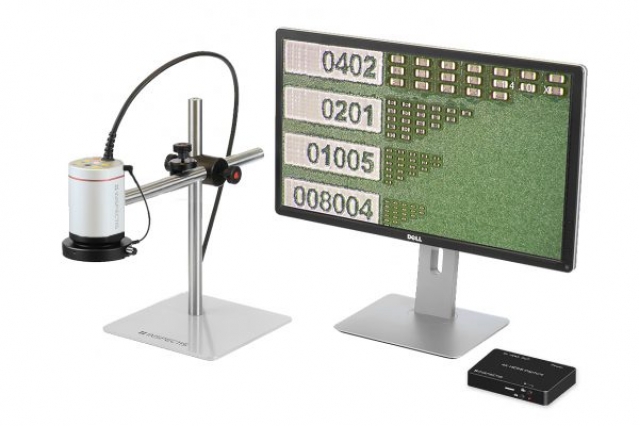

• 4K Digital Inspection System
• Easy to Setup and to Use
• Video Output Ultra HD 2160p/30 fps switchable to FHD 1080p/60 fps
• Imager 8.5 Mpixels. 3840(H)x2160(V) 16:9 format. Progressive scan CMOS image sensor
• Pixel Size (resolution) 1.62 μm x 1.62 μm
• Lens Megapixel motorised 30:1 zoom with auto-focus, iris control and pre-calibrated optics
• Illumination LED RingLight with detachable diffuser and electronic dimmer.

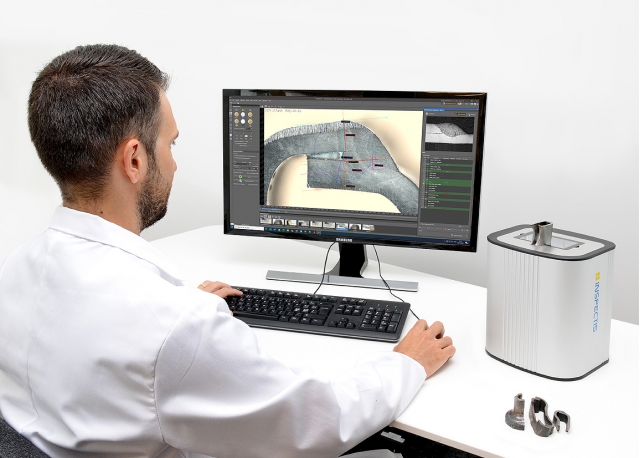

• Inverted Microscope for Weld Analysis and Documentation
• Dedicated digital inverted microscope with Full HD image quality
• Large field of view range, ~ 84 to 3 mm (~3.3” to 0.12”), equivalent to ~2.5x to 71x optical magnification or ~ 7.2 to 205x on screen magnification.
• Developed for Ease-of-Use
• Digital Capillaroscope, Extensive
• Nailfold Capillarocopy system for Professionals
• Extensive digital Capillaroscope system package with Laptop, pre-installed software, 3-pedal foot switch , microscope holder, oil dropper, and medical cart.

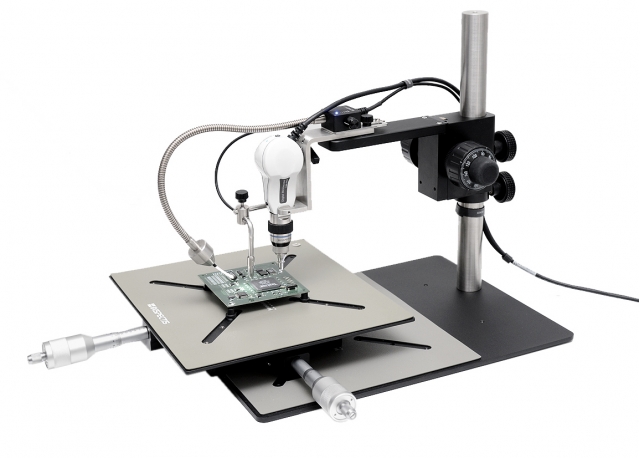

• Advanced systems for side-view optical inspections of BGA, μBGA. FipChip, CSP, CGA solder bumps
