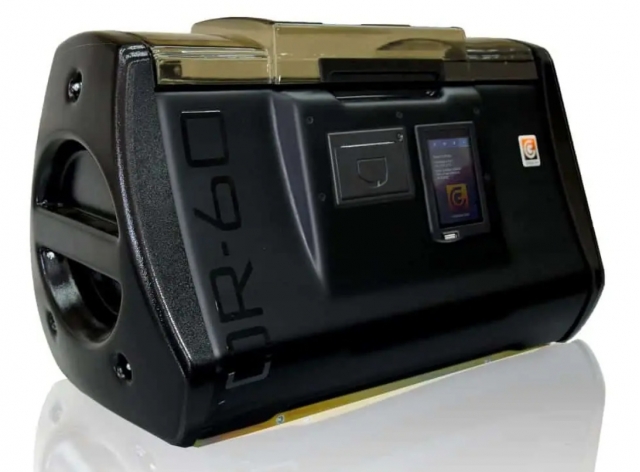

The TOR-60 unit is designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 80"�kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816. It can operate autonomously or in a network, transferring results to a PC to create a local database, generate reports, plot graphs, and print results. The device is fully automatic and supports testing both according to standard procedures and custom user-defined procedures.

The TOR-60 unit is designed to measure the dielectric strength of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, ASTM D1816.

It is a fully automatic device that allows testing according to the procedures defined in these standards, as well as according to the user procedures specified in the appropriate section of the setup menu.

Operating principle

The core of the unit is the high voltage transformer and electronic modules. The unit operates by gradually increasing the voltage on the secondary winding of the high voltage transformer from zero to the maximum voltage, or to the voltage at which an electric breakthrough occurs in the dielectric fluid in the measuring cell installed on the high voltage contacts of the transformer.

The voltage in the secondary winding of the transformer occurs due to gradual increase of voltage in the primary winding supplied with sinusoidal voltage from the control inverter, one of the electronic modules.

Voltage increase is managed by a microcontroller through the control inverter. The control inverter is commanded by the unit control module.

During operation, AC (50-60Hz) voltage is supplied from the secondary winding terminals through the cell electrodes into the dielectric fluid in the measuring cell. The breakthrough occurs between the electrodes in the space filled with the dielectric fluid.

automated and accurate measurement of breakdown voltage up to 80 kV;
instantaneous (4 Î¼s) disconnection of the test voltage upon breakdown;
can work autonomously or in a network with transferring results to a PC, creating a local database, generating reports, plotting graphs and printing results;
there is software for the implementation of standard and custom measurement procedures "" the device can be used for research purposes;
simple and easy to operate and maintain.

Application:

FR3 dielectric fluid
Midel 7131 dielectric fluid
Silicone oil
Transformer oil

noItemValue

1 Operating AC voltage (internal rechargable battery), V85 "" 264

2 Power frequency, Hz48 "" 63

3 Power requirement, VA70 max

3 Max voltage output, kVSinusoidal, up to 80 kV

4 Output voltage measurement accuracy�±1 %

5 Voltage increase rate, kV/sec0,5 to 10 *

6 Resolution of output voltage indication, V100

7 High voltage timeout after breakthrough, Î¼s10 max, 4 typical

8 Measuring cell volume, cm3 (in3)500 (30)

9 Ambient temperature measurement range, °С (°F)-10 "" 50 (14 "" 212)

10 Temperature measurement resolution, °С (°F)0,1 (32,18)

11 Inbuilt printerYes

12 Operating temperature , °С (°F)-10 "" 50 (14 "" 122)

13 Storage temperature, °С (°F)From "" 20 ("" 4) to + 60 (140)

14 Relative humidity, %Up to 90 without condensation

15 Dimensions, mm (in)510 (20) Х 300 (12) Х 334 (13)

16 Weight, kg (lbs), max30 (66)

Video Presentation on Youtube TOR-80

More products GLOBECORE

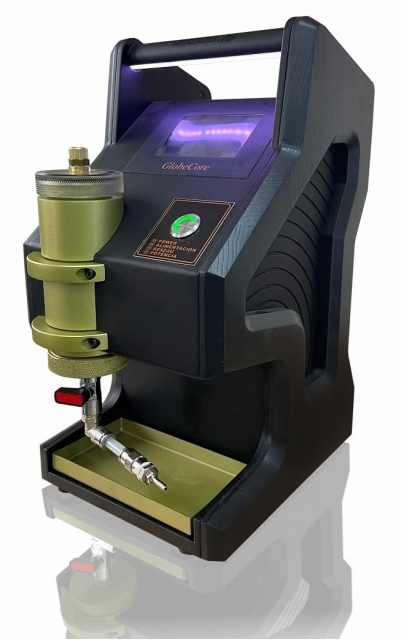

GLOBECORE TOR-2 HYDROGEN AND MOISTURE ANALYZER FOR TRANSFORMER OIL MONITORING

• designed to measure moisture and hydrogen content in mineral and ether-based insulating oils
• detection of moisture and hydrogen even in small quantities
• operation simplicity
• no consumables needed for measurements;
• the presence of other gases in the oil does not affect the reliability of measurements;
• simple calibration;
• maintenance-free

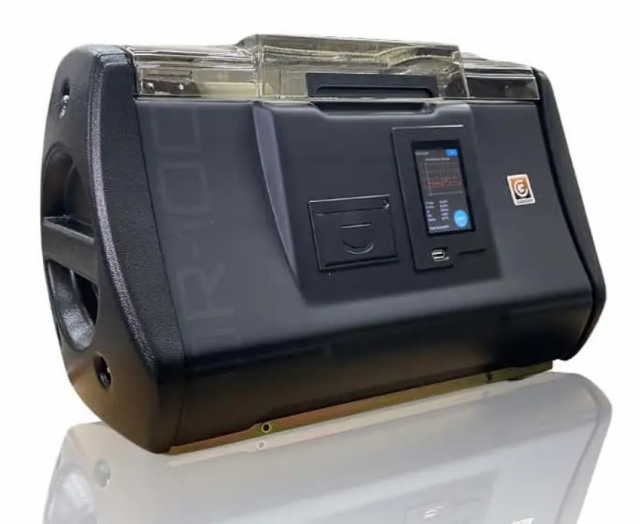

GLOBECORE TOR-100 OIL BREAKDOWN VOLTAGE TESTER 100KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"�kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 Î¼s) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery

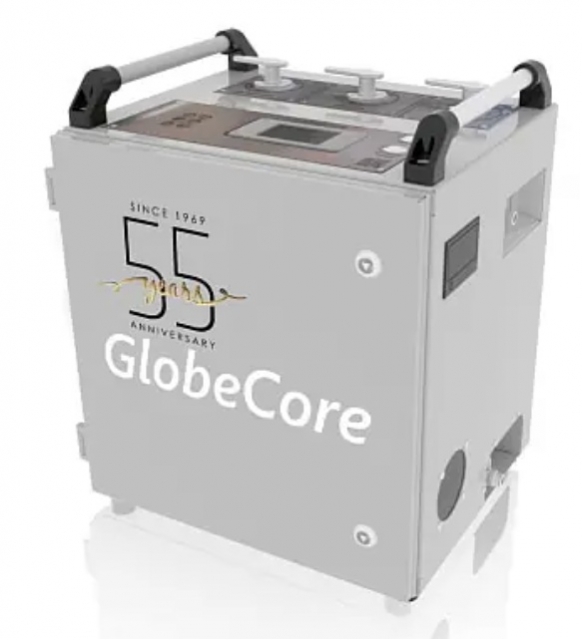

GLOBECORE TOR-8 TESTER FOR RESIDUAL GAS CONTENT OF INSULATING OIL IN TRANSFORMERS

• accurate measurement of residual gas content of transformer oil;
• reliable operation;
• convenient and robust housing;
• the measuring process takes up to 10 minutes;
• the possibility to print the results using an integrated thermal printer

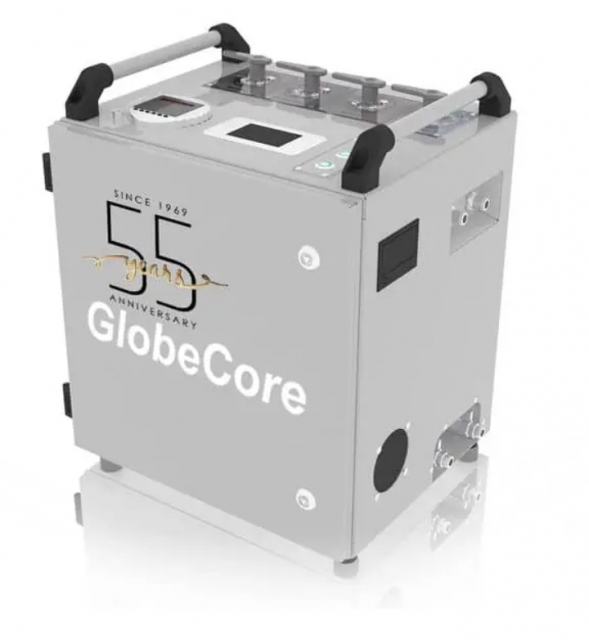

GLOBECORE TOR-7 UNIVERSAL TRANSFORMER OIL TESTER FOR MOISTURE, DISSOLVED GASES, SOLID PARTICLES, HYDROGEN

•

GLOBECORE TOR-3 DIELECTRIC OIL LOSS TANGENT DELTA TESTER

• designed to determine the dielectric loss tangent, specific resistivity, and permittivity of transformer oils and other dielectric fluids
• in accordance with IEC 60247-2004-02 (VDE-0380-2:2005_01), ASTM D924-08, and ASTM D1169-02
• fully automatic device
• equipped with the Tangent Service software

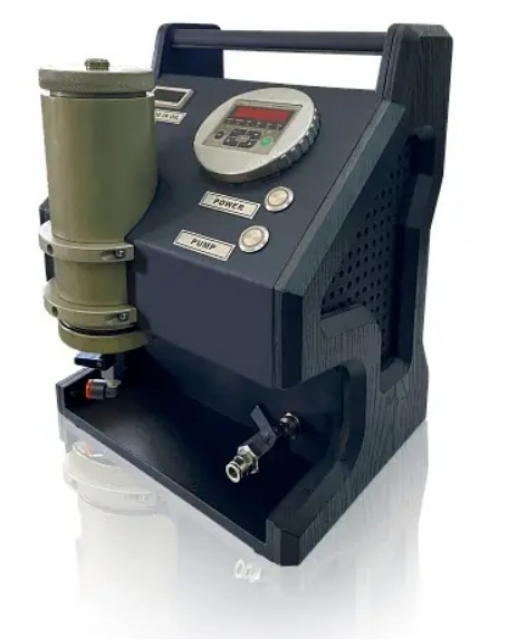

GLOBECORE TOR-6 TRANSFORMER OIL MOISTURE AND PARTICLES TESTER

• erforms high-precision measurements of moisture content and purity (contamination levels) in both mineral and ester-based oils.
• measures water activity (aw) from 0 to 1 with a precision of �±10"�% or �±10"�ppm at 20"�°C and records temperature
• The device assesses oil purity according to ISO 99 (ISO 4406:1999), SAE AS 4059, ISO 87 (ISO 4406:1987), and NAS 1638 standards.

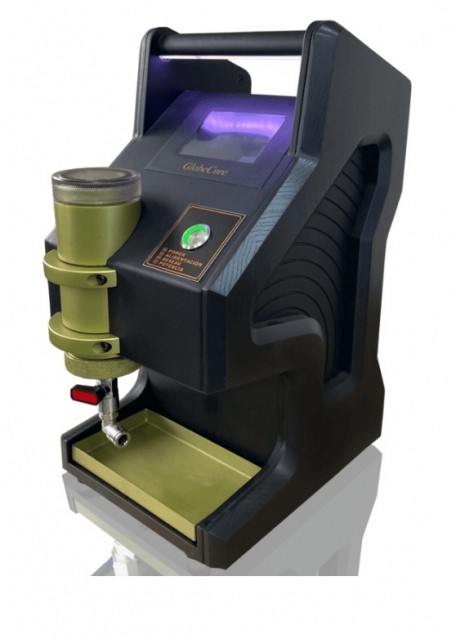

GLOBECORE TOR-1 MOISTURE METER FOR TESTING INSULATING TRANSFORMER OIL
