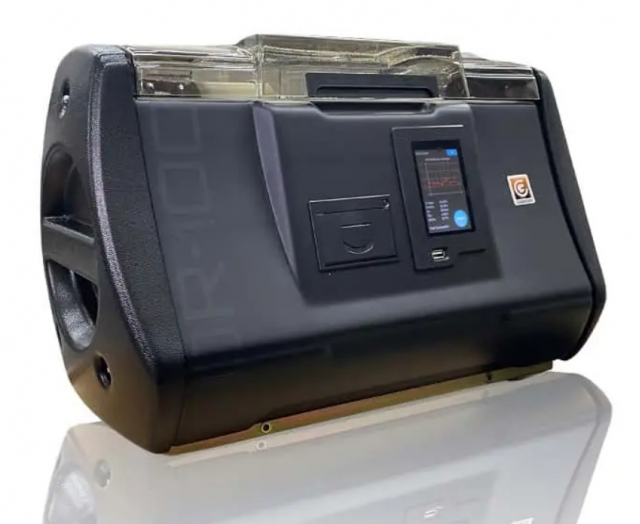

The TOR-100 tester is designed for automated and precise measurement of the electrical breakdown voltage (up to 100"�kV) of transformer oil and other liquid dielectrics. It operates according to IEC 60156, VDE 0370, ASTM D877, ASTM D1816, and IRAM 2341 standards, which can be updated or expanded to meet customer requirements or new standard versions. The tester features an integrated printer for immediate results and a USB port for saving test data to a flash drive, enabling easy transfer and storage of measurements on a computer.

TOR-100 tester is designed to determine the electrical breakdown voltage of transformer oil and other liquid dielectrics in accordance with IEC 60156, VDE 0370, ASTM D877, ASTM D1816, IRAM 2341. This list of standards may be supplemented and modified both with customer preferences taken into consideration and as new versions of standards become available.

Principle of operation

The working core of the tester is a high-voltage transformer and electronic modules. The principle of operation of the device is to gradually increase the voltage on the secondary winding of a high-voltage transformer from zero to maximum value, or to a value at which there will occur a breakdown of a liquid dielectric poured into a measuring cell installed on the high-voltage contacts of the transformer and constituting a part of its output electrodes.

A voltage rise at the high-voltage contacts of the secondary winding of the transformer occurs due to a gradual increase in the voltage on the primary winding when sinusoidal voltage is applied thereto from a controlled master inverter.

automated and accurate measurement of breakdown voltage up to 100 kV;
instantaneous (4 Î¼s) disconnection of the test voltage upon breakdown;
can work autonomously or in a network with transferring results to a PC, creating a local database, generating reports, plotting graphs and printing results;
there is software for the implementation of standard and custom measurement procedures "" the device can be used for research purposes;
simple and easy to operate and maintain.

Application:

FR3 dielectric fluid
Midel 7131 dielectric fluid
Silicone oil
Transformer oil

1 Operating AC voltage (internal rechargable battery), V85 "" 264

2 Power frequency, Hz48 "" 63

3 Power requirement, VA70 max

3 Max voltage output, kVSinusoidal, up to 100 kV

4 Output voltage measurement accuracy�±1 %

5 Voltage increase rate, kV/sec0,5 to 10 *

6 Resolution of output voltage indication, V100

7 High voltage timeout after breakthrough, Î¼s10 max, 4 typical

8 Measuring cell volume, cm3 (in3)500 (30)

9 Ambient temperature measurement range, °С (°F)-10 "" 50 (14 "" 212)

10 Temperature measurement resolution, °С (°F)0,1 (32,18)

11 Inbuilt printerYes

12 Operating temperature , °С (°F)-10 "" 50 (14 "" 122)

13 Storage temperature, °С (°F)From "" 20 ("" 4) to + 60 (140)

14 Relative humidity, %Up to 90 without condensation

15 Dimensions, mm (in)510 (20) Х 300 (12) Х 334 (13)

16 Weight, kg (lbs), max30 (66)

Youtube Video Presentation TOR-100

More products GLOBECORE

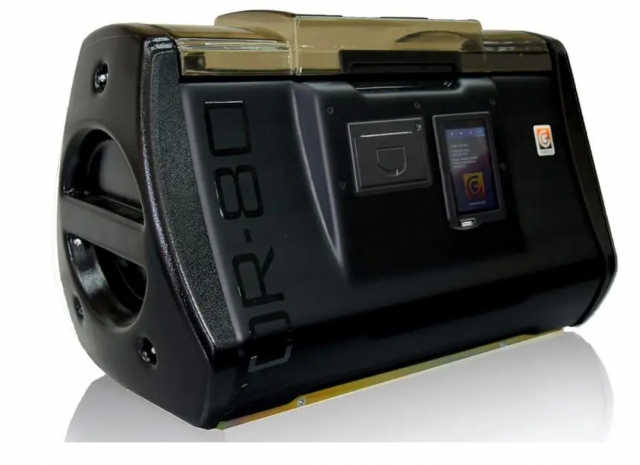

GLOBECORE TOR-80 OIL BREAKDOWN VOLTAGE TESTER 80KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"�kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 Î¼s) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results;

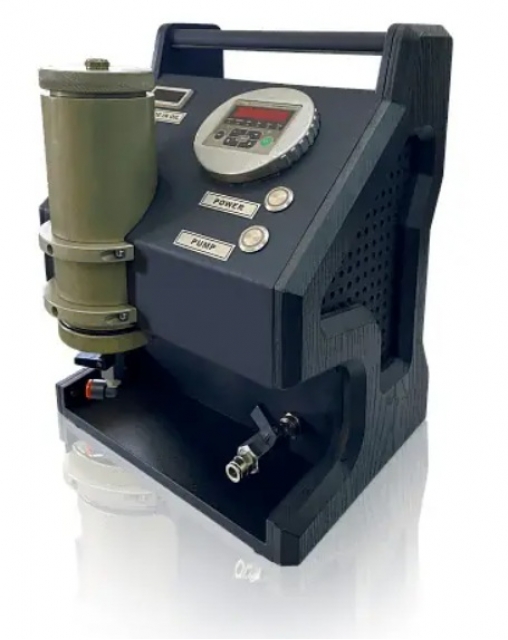

GLOBECORE TOR-6 TRANSFORMER OIL MOISTURE AND PARTICLES TESTER

• erforms high-precision measurements of moisture content and purity (contamination levels) in both mineral and ester-based oils.
• measures water activity (aw) from 0 to 1 with a precision of �±10"�% or �±10"�ppm at 20"�°C and records temperature
• The device assesses oil purity according to ISO 99 (ISO 4406:1999), SAE AS 4059, ISO 87 (ISO 4406:1987), and NAS 1638 standards.

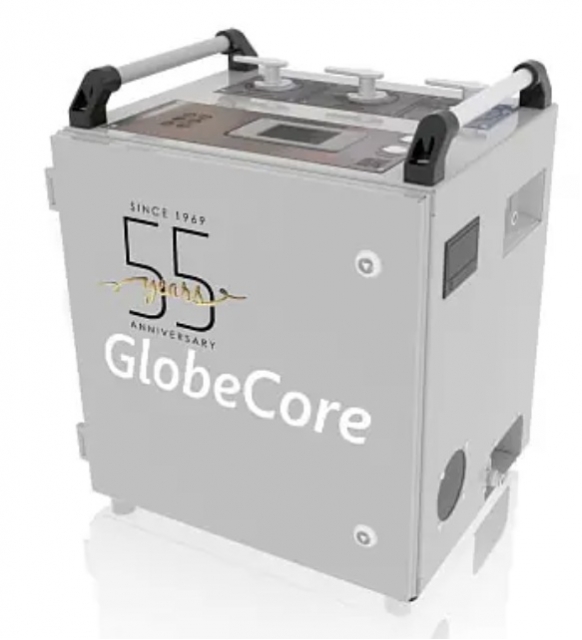

GLOBECORE TOR-8 TESTER FOR RESIDUAL GAS CONTENT OF INSULATING OIL IN TRANSFORMERS

• accurate measurement of residual gas content of transformer oil;
• reliable operation;
• convenient and robust housing;
• the measuring process takes up to 10 minutes;
• the possibility to print the results using an integrated thermal printer

GLOBECORE TOR-100 OIL BREAKDOWN VOLTAGE TESTER 100KV

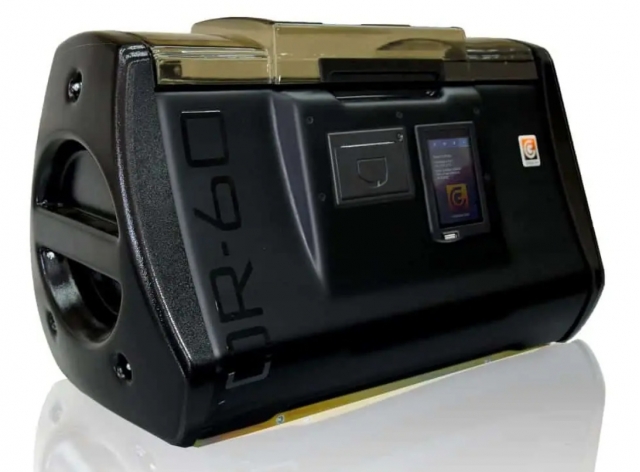

GLOBECORE TOR-60 OIL BREAKDOWN VOLTAGE TESTER 60KV

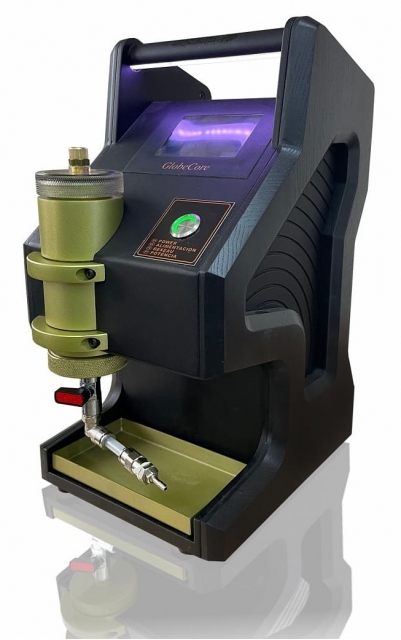

GLOBECORE TOR-2 HYDROGEN AND MOISTURE ANALYZER FOR TRANSFORMER OIL MONITORING

• designed to measure moisture and hydrogen content in mineral and ether-based insulating oils
• detection of moisture and hydrogen even in small quantities
• operation simplicity
• no consumables needed for measurements;
• the presence of other gases in the oil does not affect the reliability of measurements;
• simple calibration;
• maintenance-free

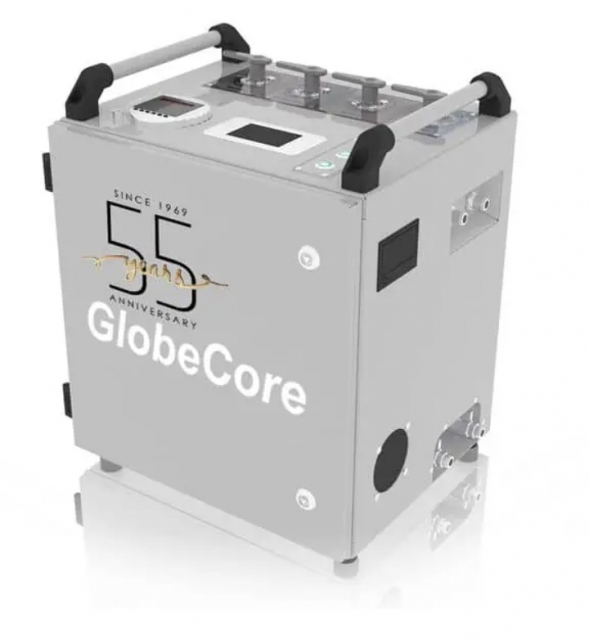

GLOBECORE TOR-7 UNIVERSAL TRANSFORMER OIL TESTER FOR MOISTURE, DISSOLVED GASES, SOLID PARTICLES, HYDROGEN

•

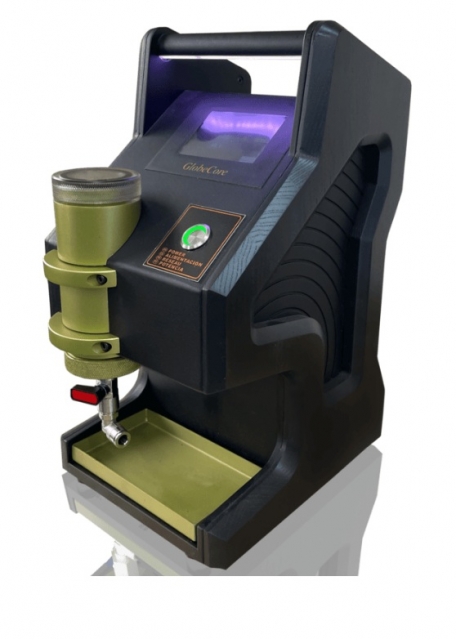

GLOBECORE TOR-1 MOISTURE METER FOR TESTING INSULATING TRANSFORMER OIL

• esigned for rapid and precise determination of the mass fraction of water in insulating oils, even at very low levels
• high measurement speed and accuracy make the TOR-1 an ideal solution for regular on-site monitoring of moisture content in transformer oils

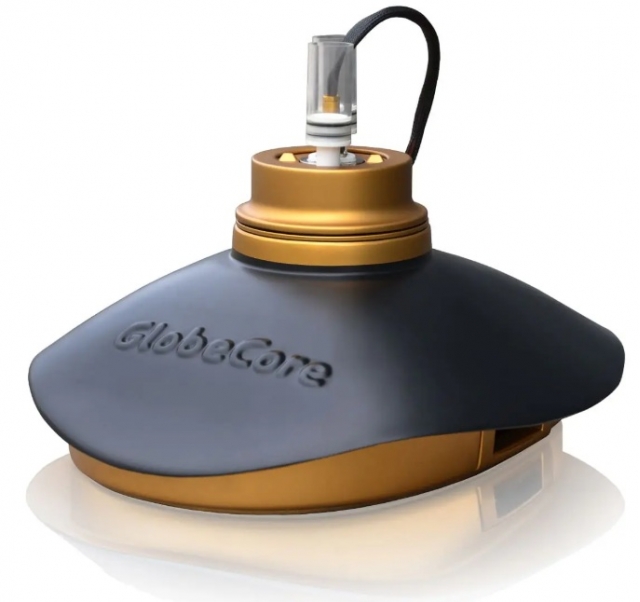

GLOBECORE TOR-3 DIELECTRIC OIL LOSS TANGENT DELTA TESTER
