GLOBECORE TOR-3 Dielectric Oil Loss Tangent Delta Tester

Code: TOR-3 TOR3 TANGENT DELTA DISIPATIE



Datasheet PDF, 6.02 Mb

Description

TOR-3 (TOR-3 SL) Oil Tan Delta Tester
The TOR-3 is designed to determine the dielectric loss tangent, specific resistivity, and permittivity of transformer oils and other dielectric fluids, in accordance with IEC 60247-2004-02 (VDE-0380-2:2005_01), ASTM D924-08, and ASTM D1169-02. It is a fully automatic device, allowing testing according to the specified standards or user-defined procedures. The measurement process is computer-controlled, with the ability to save and print results. The unit can also be equipped with the Tangent Service software, enabling online result viewing and access to archived measurements in graphical or numerical form.

The unit is designed for determining the dielectric loss tangent, specific resistivity, and permittivity of transformer oils and other dielectric fluids according to IEC 60247-2004-02 (VDE-0380-2:2005_01), ASTM D924-08, and ASTM D1169-02.

It is a fully automatic device that allows testing according to the procedures defined in these standards, as well as according to the user procedures specified in the appropriate section of the setup menu.

Operating principle
The principle of operation is based on measuring the difference in amplitudes and phases of signals obtained when a test sinusoidal voltage with an effective value of up to 2 kV is applied simultaneously to the reference capacitor and the object of measurement, which is the measuring cell of the unit.

The difference between the amplitudes of the signals taken from the reference capacitor and the internal electrode of the measuring cell is proportional to the dielectric constant of the liquid under study. The phase difference between the signals taken from the reference capacitor and the internal electrode of the measuring cell characterizes the value of the dielectric loss tangent.

Features:
  • fast measurements whith maintaining accuracy;
  • the measurement process is automated, controlled by a computer, you can save the results and print them on a printer;
  • can be completed with engineering software "Tangent Service", thanks to which it is possible to view the results online, as well as an archive of measurements in graphic or digital form;
  • variability of settings "" can be used for research purposes;
  • light weight, compact size, easy to use.

Application:
  • FR3 dielectric fluid
  • Midel 7131 dielectric fluid
  • Silicone oil
  • Transformer oil

Technical Specs:
no Item Value

1 Operating AC voltage, V 100 "" 260
2 Power frequency, Hz48 "" 63
3 Power requirement, VA Below 250
4 Applied measuring voltage АС, kV Sinusoidal, 500 "" 2000 V actual
5 Tan Î measurement range0,00001 "" 4
6 Tan Î measurement resolution1х10-6
7 Tan Î measurement accuracy+/- 1% of measurement + 0,00008
8 Measurement range of relative dielectric constant ε 1.0 "" 15.0
9 Accuracy of ε measurement+/- 1%
10 Electrical capacitance C measurement range, pF 20 "" 1000
11 Accuracy of С measurement, pF+/- 1% + 1
12 Oil temperature measurement range, ¼С (oF)20 "" 110 (68 "" 230)
13 Measuring cell volume, cm³ (in³)42 (2,6)
14 Electric capacity of an empty cell, pF65 "" 85
15 One measurement duration, minutes, not more than5
16 AC frequency setting range, Hz45 "" 65
17 Temperature measurement resolution, oС (oF)0.5 (33)
18 Inbuilt printerNone
19 Process temperature, oС (oF)0 "" 50 (32 "" 122)
20 Storage temperature, oС (oF)"" 20 (- 4) to +60 (+140)
21 Relative humidity, %Up to 90 without condensation
22 Dimensions, mm (in)400 (16) Х 450 (18) Х 300 (12)*
23 Weight, kg (lbs), not more than5.3 (12)*

* "" with installed and connected cell

Youtube Video Presentation of TOR-3





More products GLOBECORE

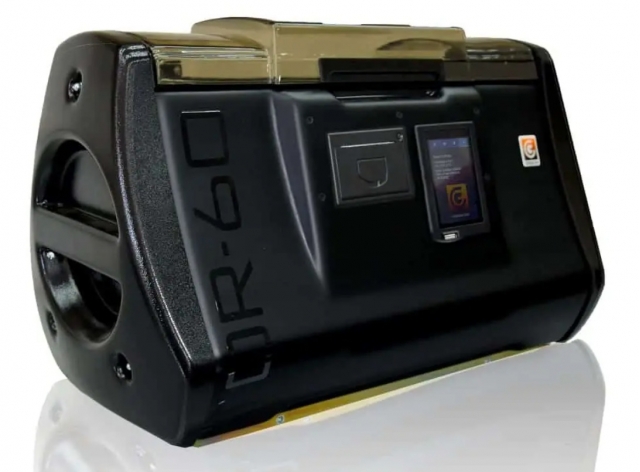

GLOBECORE TOR-60 OIL BREAKDOWN VOLTAGE TESTER 60KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery

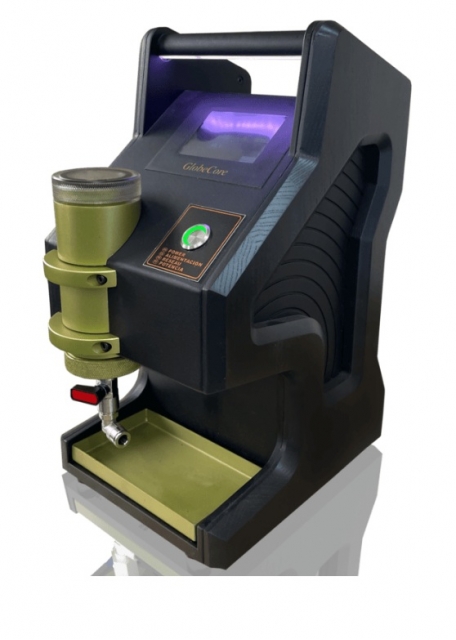

GLOBECORE TOR-1 MOISTURE METER FOR TESTING INSULATING TRANSFORMER OIL

• esigned for rapid and precise determination of the mass fraction of water in insulating oils, even at very low levels
• high measurement speed and accuracy make the TOR-1 an ideal solution for regular on-site monitoring of moisture content in transformer oils

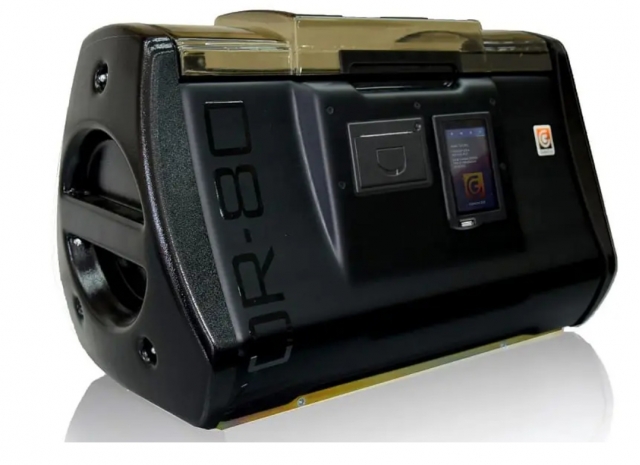

GLOBECORE TOR-80 OIL BREAKDOWN VOLTAGE TESTER 80KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results;

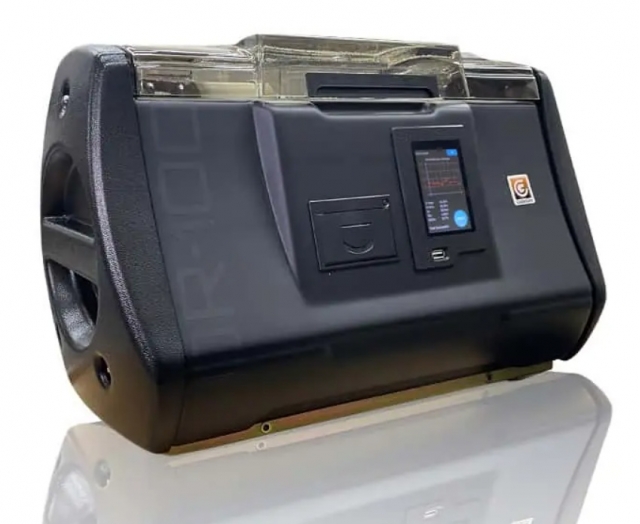

GLOBECORE TOR-100 OIL BREAKDOWN VOLTAGE TESTER 100KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery

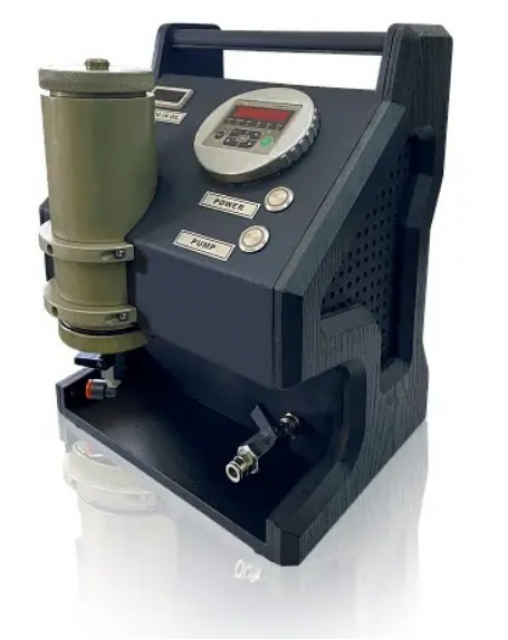

GLOBECORE TOR-6 TRANSFORMER OIL MOISTURE AND PARTICLES TESTER

• erforms high-precision measurements of moisture content and purity (contamination levels) in both mineral and ester-based oils.
• measures water activity (aw) from 0 to 1 with a precision of ±10"% or ±10"ppm at 20"°C and records temperature
• The device assesses oil purity according to ISO 99 (ISO 4406:1999), SAE AS 4059, ISO 87 (ISO 4406:1987), and NAS 1638 standards.

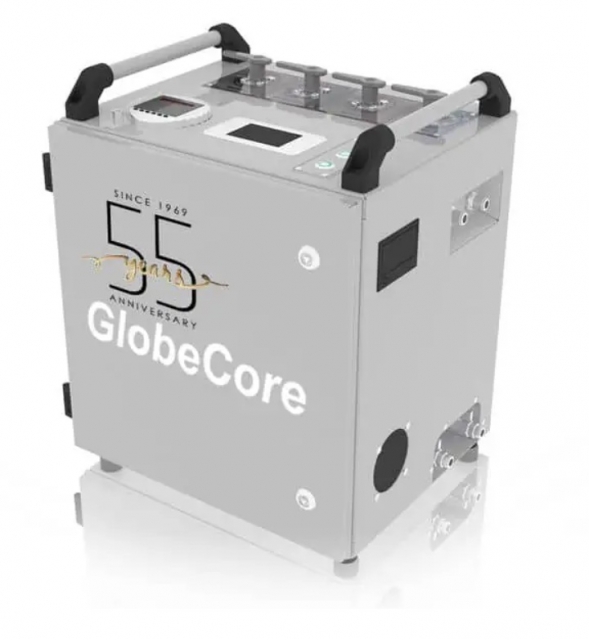

GLOBECORE TOR-2 HYDROGEN AND MOISTURE ANALYZER FOR TRANSFORMER OIL MONITORING

• designed to measure moisture and hydrogen content in mineral and ether-based insulating oils
• detection of moisture and hydrogen even in small quantities
• operation simplicity
• no consumables needed for measurements;
• the presence of other gases in the oil does not affect the reliability of measurements;
• simple calibration;
• maintenance-free

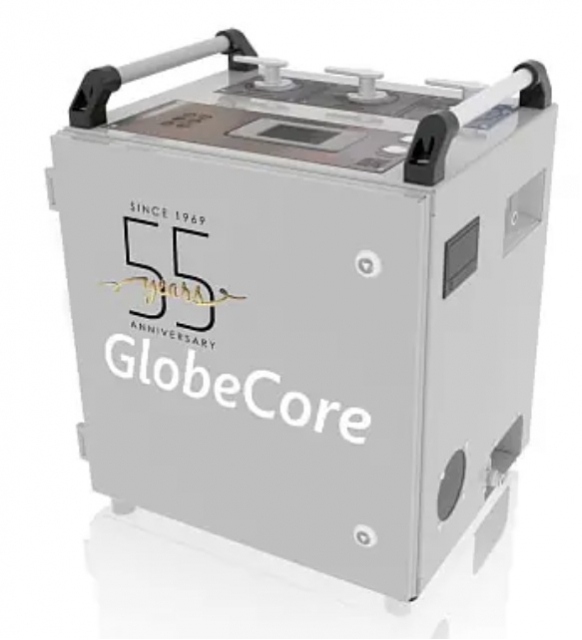

GLOBECORE TOR-8 TESTER FOR RESIDUAL GAS CONTENT OF INSULATING OIL IN TRANSFORMERS

• accurate measurement of residual gas content of transformer oil;
• reliable operation;
• convenient and robust housing;
• the measuring process takes up to 10 minutes;
• the possibility to print the results using an integrated thermal printer

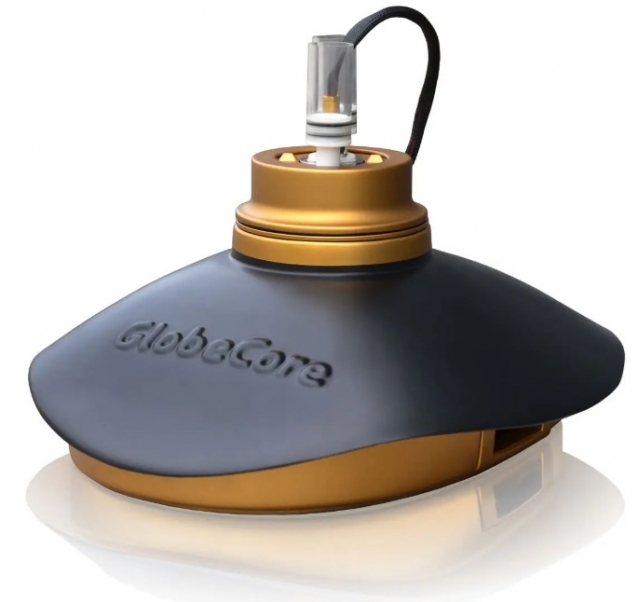

GLOBECORE TOR-3 DIELECTRIC OIL LOSS TANGENT DELTA TESTER
