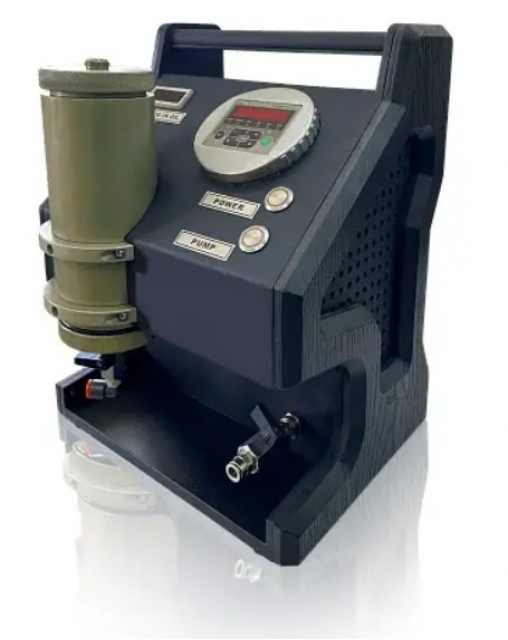

GLOBECORE TOR-6 Transformer Oil Moisture and Particles Tester

Code: TOR-6 TOR6



Datasheet PDF, 6.02 Mb

Description

TOR-6 Transformer Oil Moisture and Particles Tester
The TOR-6 transformer oil express tester performs high-precision measurements of moisture content and purity (contamination levels) in both mineral and ester-based oils. It measures water activity (aw) from 0 to 1 with a precision of ±10"¯% or ±10"¯ppm at 20"¯Â°C and also records temperature. The device assesses oil purity according to ISO 99 (ISO 4406:1999), SAE AS 4059, ISO 87 (ISO 4406:1987), and NAS 1638 standards.


compact size;
 versatility.

Application:
  • Diesel fuel
  • Hydraulic oil
  • Industrial oil
  • Transformer oil


No.ParameterValue
Moisture measurement characteristics

1 Operating range, aw (active water)0"¦1
2 Precision at 20 °C ±10 % or ±10 ppm
3 Temperature measurementYes

Purity or contamination level characteristics
4 Permissible viscosity range, mm²/sec1 to 1,000
5 Standards maintained in determining the purity class
ISO 99 (ISO 4406:1999)
SAE (SAE AS 4059) or
ISO 87 (ISO 4406:1987)
NAS (NAS 1638)

6 Measuring range Measuring from ISO 9/8/7 (min) to ISO 25/24/23 (max)

Calibrated within the ISO range from 13/11/10 to 23/21/18

7 Precision ISO class ± 1/2 in calibrated range

8 Required power, W 3

9 Single phase 50 Hz AC power supply voltage, V
220

10 Dimensions, mm, not more than
"" length
"" width
"" height
235
275
370
11Weight, kg, not more than10


More products GLOBECORE

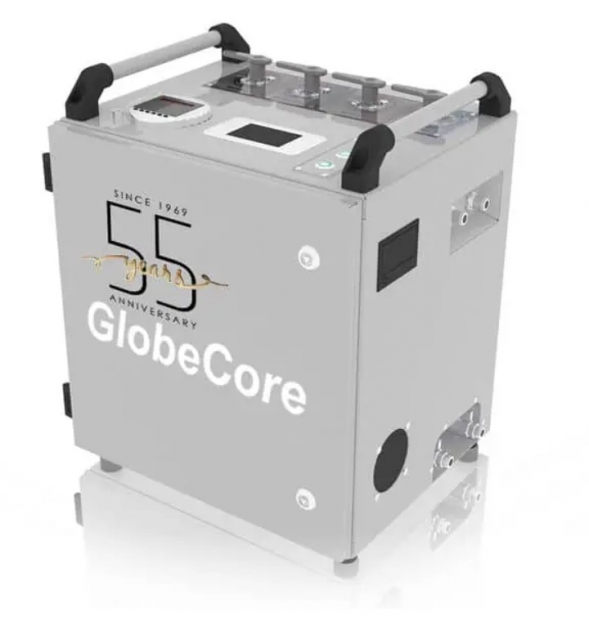

GLOBECORE TOR-7 UNIVERSAL TRANSFORMER OIL TESTER FOR MOISTURE, DISSOLVED GASES, SOLID PARTICLES, HYDROGEN

•

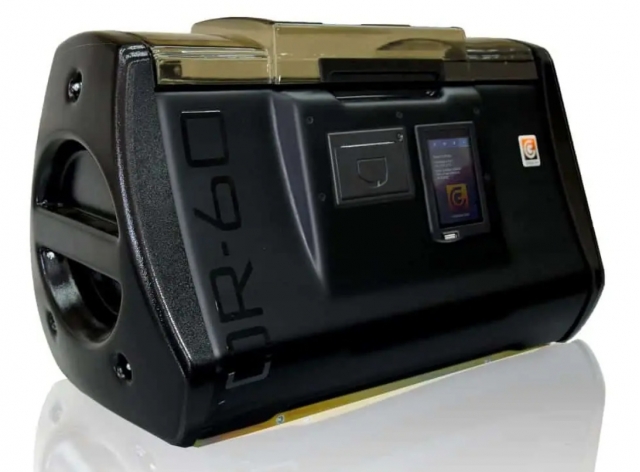

GLOBECORE TOR-60 OIL BREAKDOWN VOLTAGE TESTER 60KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"¯kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery

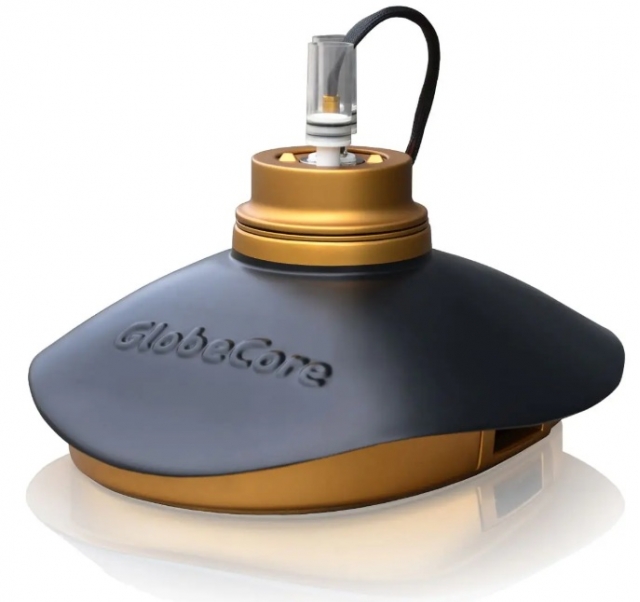

GLOBECORE TOR-3 DIELECTRIC OIL LOSS TANGENT DELTA TESTER

• designed to determine the dielectric loss tangent, specific resistivity, and permittivity of transformer oils and other dielectric fluids
• in accordance with IEC 60247-2004-02 (VDE-0380-2:2005_01), ASTM D924-08, and ASTM D1169-02
• fully automatic device
• equipped with the Tangent Service software

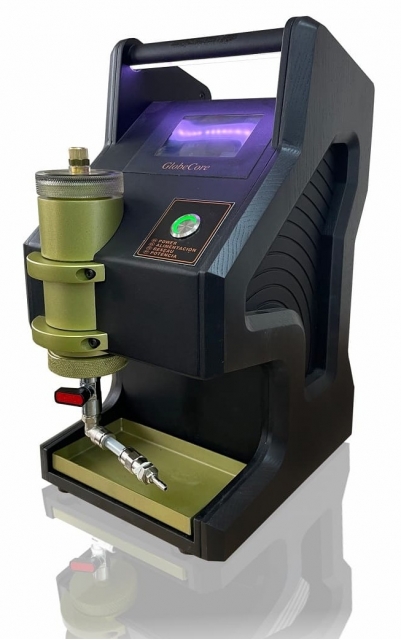

GLOBECORE TOR-2 HYDROGEN AND MOISTURE ANALYZER FOR TRANSFORMER OIL MONITORING

• designed to measure moisture and hydrogen content in mineral and ether-based insulating oils
• detection of moisture and hydrogen even in small quantities
• operation simplicity
• no consumables needed for measurements;
• the presence of other gases in the oil does not affect the reliability of measurements;
• simple calibration;
• maintenance-free

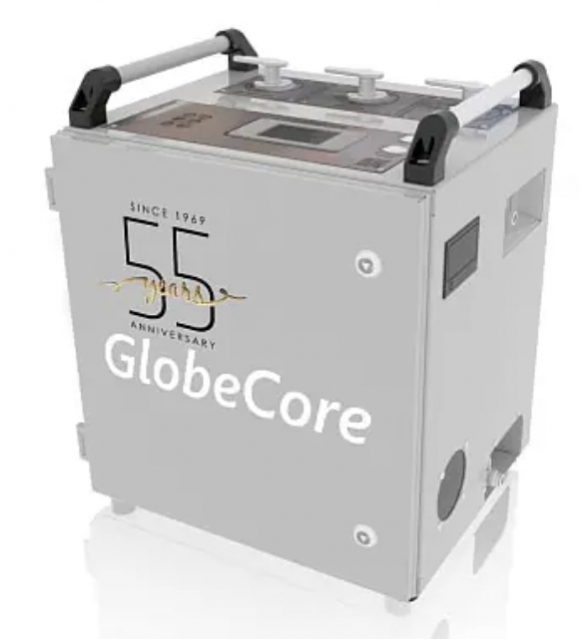

GLOBECORE TOR-8 TESTER FOR RESIDUAL GAS CONTENT OF INSULATING OIL IN TRANSFORMERS

• accurate measurement of residual gas content of transformer oil;
• reliable operation;
• convenient and robust housing;
• the measuring process takes up to 10 minutes;
• the possibility to print the results using an integrated thermal printer

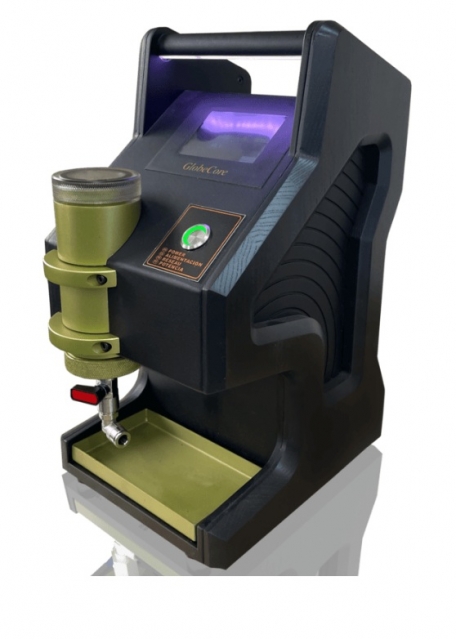

GLOBECORE TOR-1 MOISTURE METER FOR TESTING INSULATING TRANSFORMER OIL

• esigned for rapid and precise determination of the mass fraction of water in insulating oils, even at very low levels
• high measurement speed and accuracy make the TOR-1 an ideal solution for regular on-site monitoring of moisture content in transformer oils

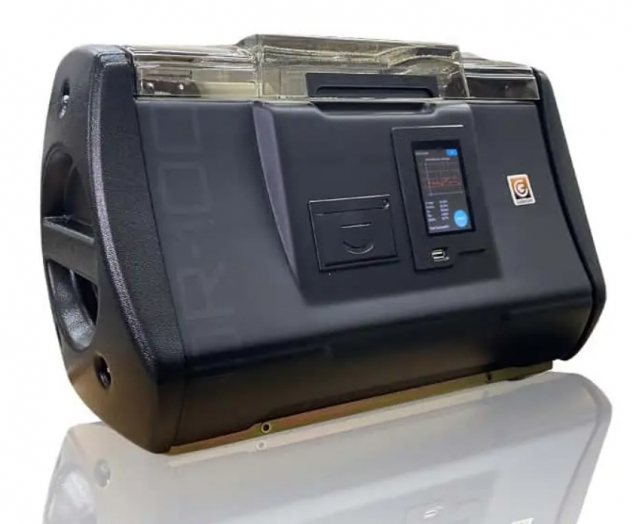

GLOBECORE TOR-100 OIL BREAKDOWN VOLTAGE TESTER 100KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"¯kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery


GLOBECORE TOR-6 TRANSFORMER OIL MOISTURE AND PARTICLES TESTER

• erforms high-precision measurements of moisture content and purity (contamination levels) in both mineral and ester-based oils.
• measures water activity (aw) from 0 to 1 with a precision of ±10"¯% or ±10"¯ppm at 20"¯Â°C and records temperature
• The device assesses oil purity according to ISO 99 (ISO 4406:1999), SAE AS 4059, ISO 87 (ISO 4406:1987), and NAS 1638 standards.

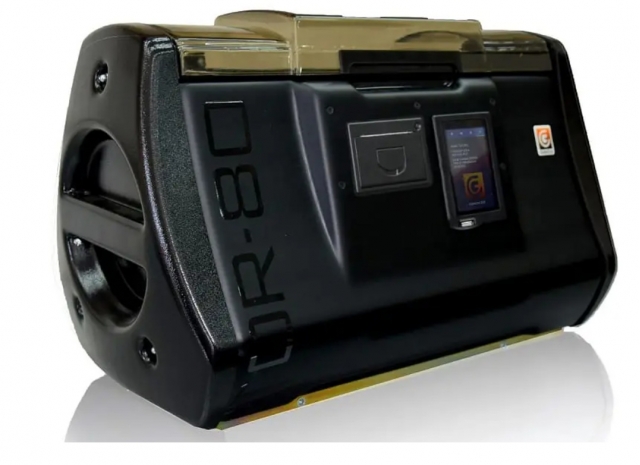

GLOBECORE TOR-80 OIL BREAKDOWN VOLTAGE TESTER 80KV
