GLOBECORE TOR-2 Hydrogen and Moisture Analyzer for Transformer Oil Monitoring

Code: TOR-2 TOR2 ULEI HIDROGEN



Datasheet PDF, 6.02 Mb


Description

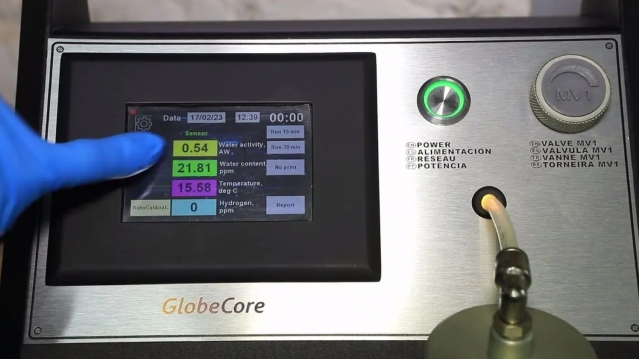

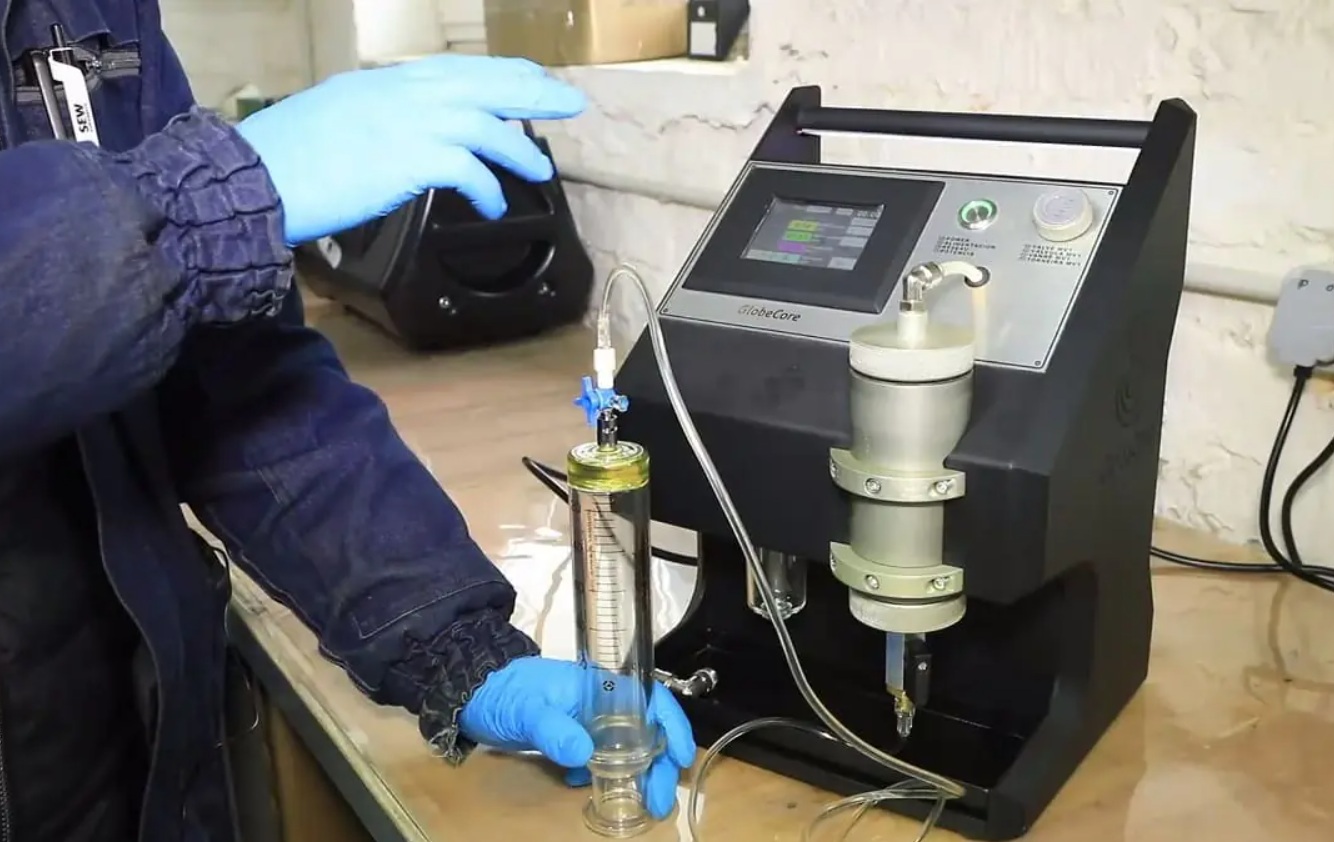

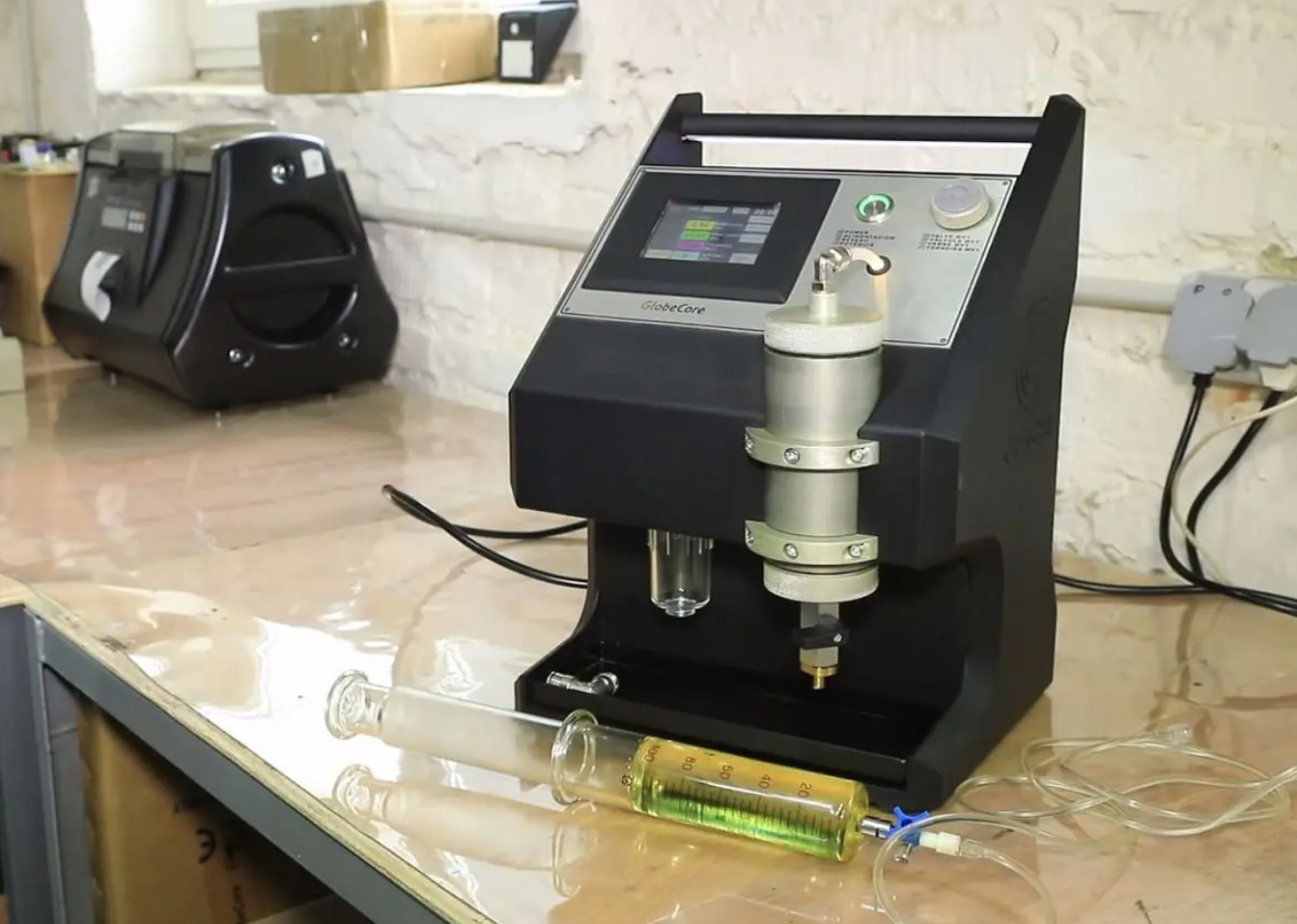

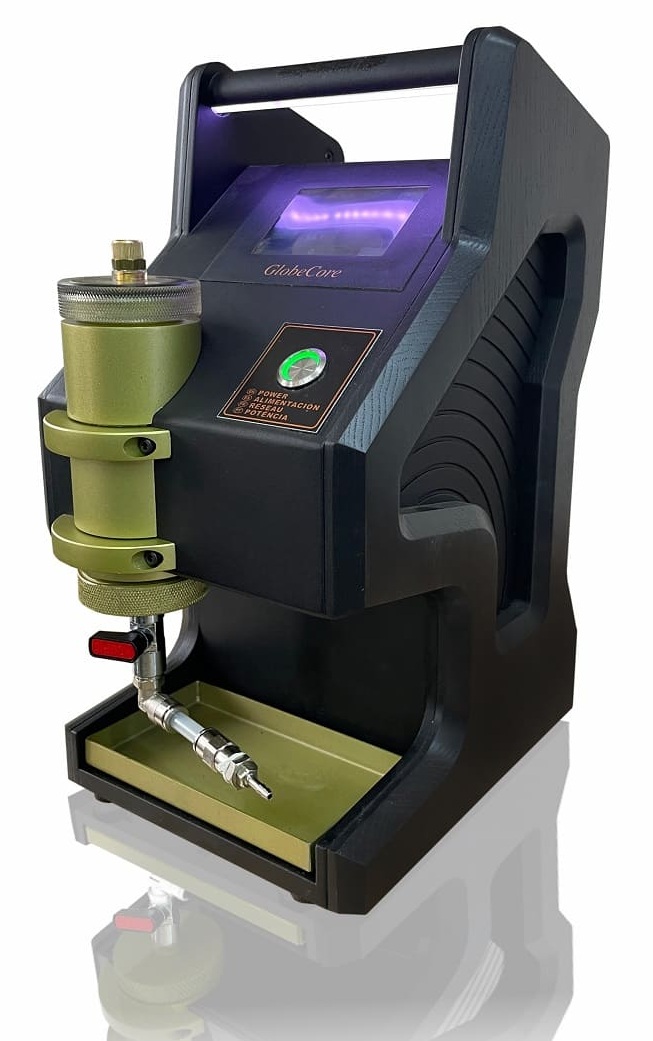

TOR-2 Hydrogen and Moisture Analyzer for Transformer Oil Monitoring
The TOR-2 transformer oil express-tester is designed to measure moisture and hydrogen content in mineral and ether-based insulating oils. Continuous monitoring of hydrogen provides early detection of potential transformer damage, helping prevent failures. Moisture and hydrogen are measured in parts per million (ppm), and the presence of other gases in the oil does not affect measurement accuracy. Its high measurement speed makes the TOR-2 an ideal solution for regular on-site monitoring of moisture content in transformer oils.

The TOR-2 transformer oil express-tester is designed to determine the moisture and hydrogen content in mineral insulating oils and ether based insulating oils. Moisture and hydrogen content is measured in parts per million (ppm).

Knowing the content of hydrogen and moisture in the oil, as well as the rate of parameter change, it is possible to detect problems developing in the transformer in advance and to take timely measures to prevent damage to the transformer.

Moisture measurement
The device measures the activity of the water using a capacitance sensor, which ensures stability over time and contamination resistance. The oil temperature is also measured. The moisture content is calculated from these measurements.

Hydrogen measurement
A highly selective solid state sensor immersed directly in oil is used to measure hydrogen content. The sensor ensures accuracy and reliability of direct measurements. Low solubility of hydrogen in oil and its high diffusion capacity make it easier to detect at low concentrations, so a problem in the transformer can be identified early.

  • detection of moisture and hydrogen even in small quantities;
  • continuous monitoring of hydrogen content provides reliable information on incipient damage that can lead to transformer failure;
  • small size;

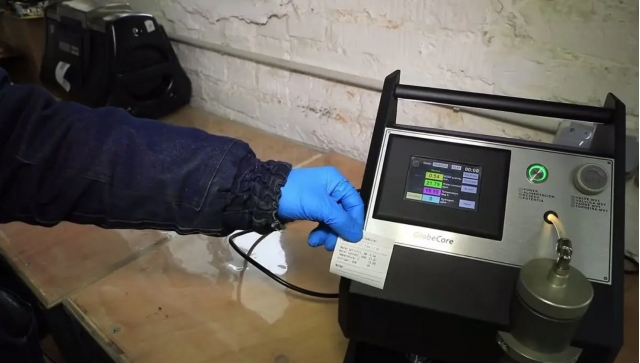

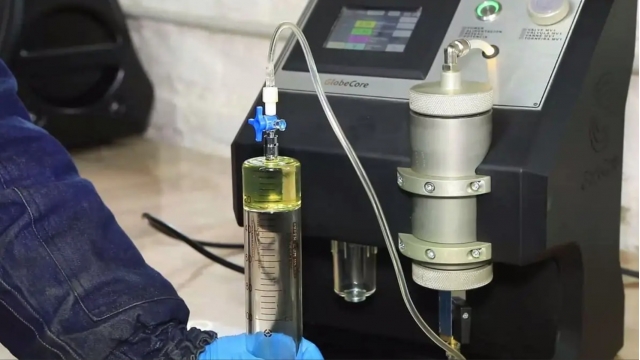

  • operation simplicity (to change the sample, just change the removable beaker and press the "Start" button to start the measurement);
  • no consumables needed for measurements;
  • the presence of other gases in the oil does not affect the reliability of measurements;
  • simple calibration;
  • maintenance-free

Application:
  • Diesel fuel
  • Hydraulic oil
  • Industrial oil
  • Transformer oil

â-Parameter Value
Moisture measurement
1Range, aw (active water (aw)) 0"1
2Accuracy at 20 °C (68 °F)±0.02 aw (0"0.9 aw) ±0.03 aw (0.9"1 aw)
3Temperature measurement Yes
4Oil temperature, °С (°F)0"55 (32" 131)

Hydrogen measurement
6Range, ppm25-5000
7Accuracy 20% of reading or 25 ppm
8Repeatability10% of reading or 15 ppm
9Response time <60 min (90% step change)
10Cross-sensitivity:Below 2% cross-sensitivity to other gases (CO, CO2, hydrocarbons)
11Oil temperature, °С (°F)0"55 (32" 131)
13Power, W60
1450 Hz AC power supply voltage, V220
15Dimensions, mm (in)
"" length
"" width
"" height
 190 (7)
255 (10)
365 (14)
16Weight, kg (lbs) max 5.5 (12)


Video Presentation on Youtube for TOR-2







More products GLOBECORE

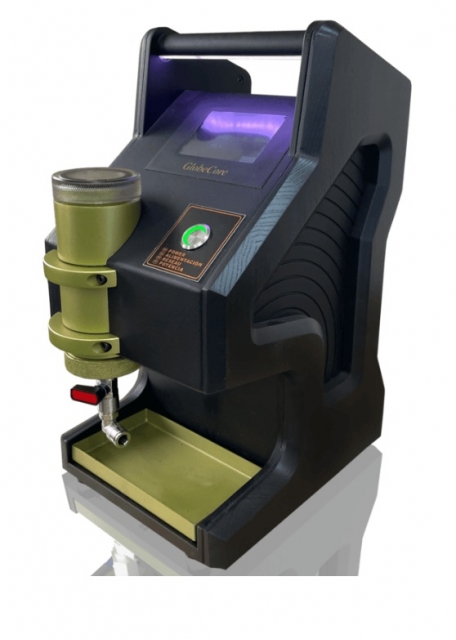

GLOBECORE TOR-1 MOISTURE METER FOR TESTING INSULATING TRANSFORMER OIL

• esigned for rapid and precise determination of the mass fraction of water in insulating oils, even at very low levels
• high measurement speed and accuracy make the TOR-1 an ideal solution for regular on-site monitoring of moisture content in transformer oils


GLOBECORE TOR-2 HYDROGEN AND MOISTURE ANALYZER FOR TRANSFORMER OIL MONITORING

• designed to measure moisture and hydrogen content in mineral and ether-based insulating oils
• detection of moisture and hydrogen even in small quantities
• operation simplicity
• no consumables needed for measurements;
• the presence of other gases in the oil does not affect the reliability of measurements;
• simple calibration;
• maintenance-free

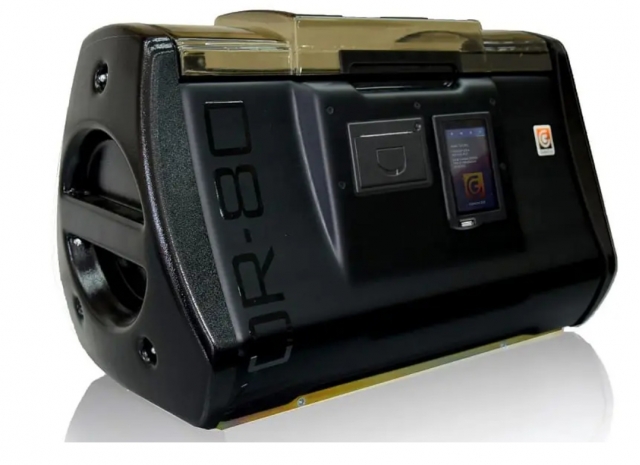

GLOBECORE TOR-80 OIL BREAKDOWN VOLTAGE TESTER 80KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results;

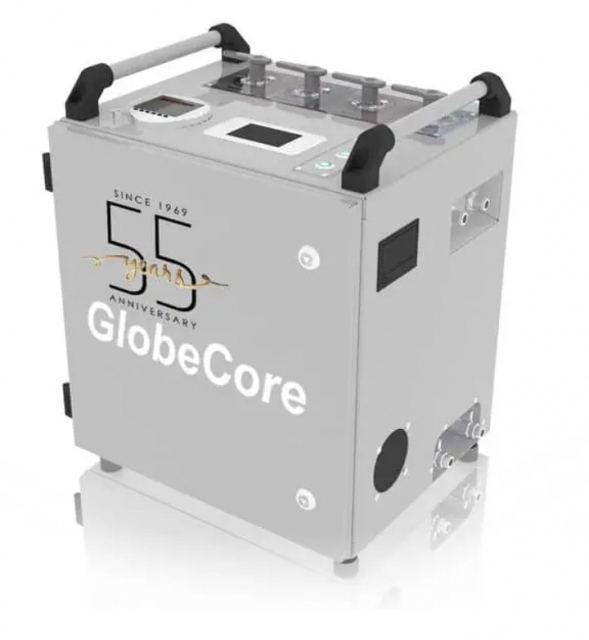

GLOBECORE TOR-7 UNIVERSAL TRANSFORMER OIL TESTER FOR MOISTURE, DISSOLVED GASES, SOLID PARTICLES, HYDROGEN

•

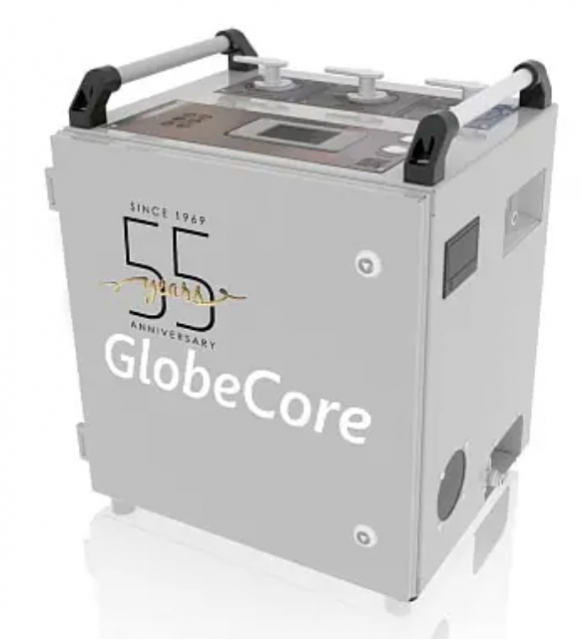

GLOBECORE TOR-8 TESTER FOR RESIDUAL GAS CONTENT OF INSULATING OIL IN TRANSFORMERS

• accurate measurement of residual gas content of transformer oil;
• reliable operation;
• convenient and robust housing;
• the measuring process takes up to 10 minutes;
• the possibility to print the results using an integrated thermal printer

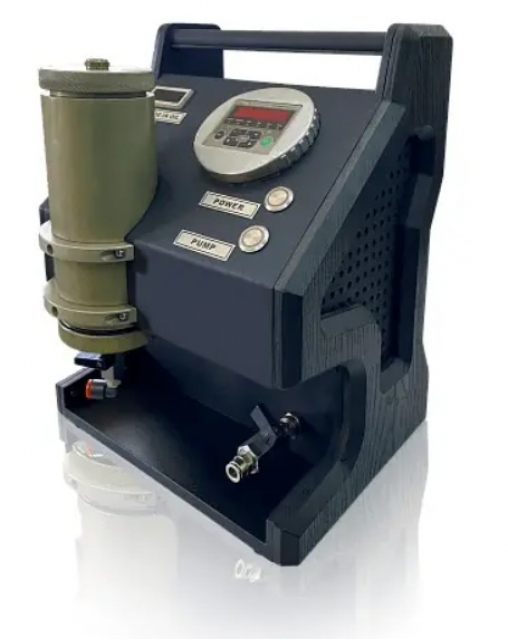

GLOBECORE TOR-6 TRANSFORMER OIL MOISTURE AND PARTICLES TESTER

• erforms high-precision measurements of moisture content and purity (contamination levels) in both mineral and ester-based oils.
• measures water activity (aw) from 0 to 1 with a precision of ±10"% or ±10"ppm at 20"°C and records temperature
• The device assesses oil purity according to ISO 99 (ISO 4406:1999), SAE AS 4059, ISO 87 (ISO 4406:1987), and NAS 1638 standards.

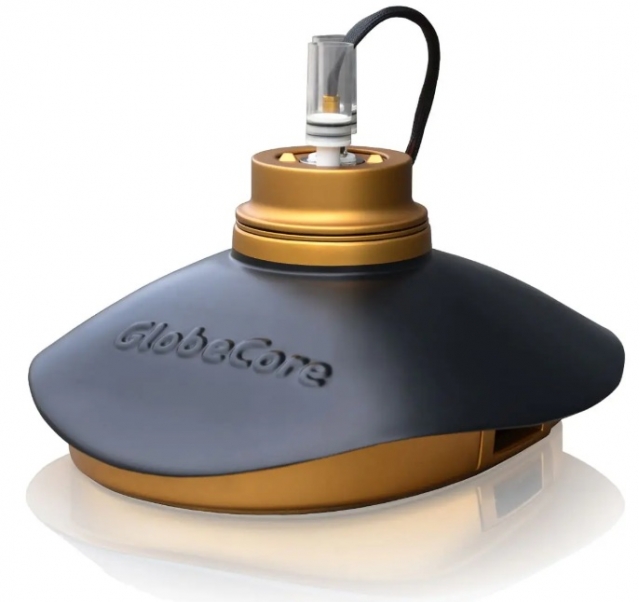

GLOBECORE TOR-3 DIELECTRIC OIL LOSS TANGENT DELTA TESTER

• designed to determine the dielectric loss tangent, specific resistivity, and permittivity of transformer oils and other dielectric fluids
• in accordance with IEC 60247-2004-02 (VDE-0380-2:2005_01), ASTM D924-08, and ASTM D1169-02
• fully automatic device
• equipped with the Tangent Service software

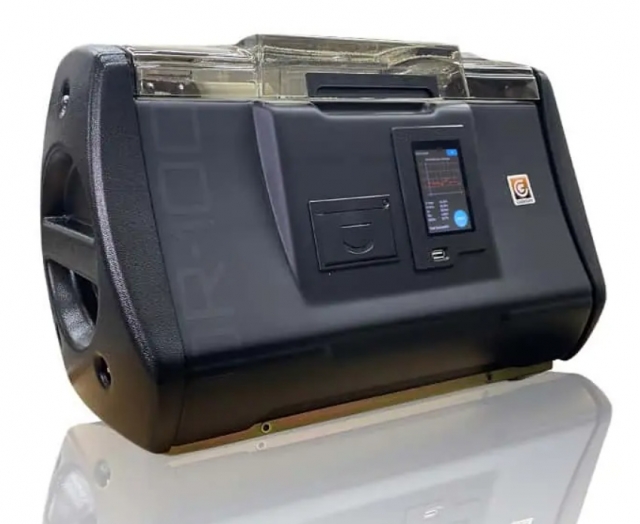

GLOBECORE TOR-100 OIL BREAKDOWN VOLTAGE TESTER 100KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery

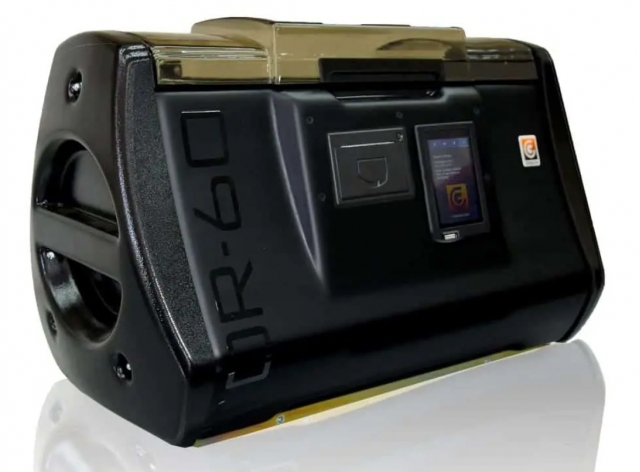

GLOBECORE TOR-60 OIL BREAKDOWN VOLTAGE TESTER 60KV
