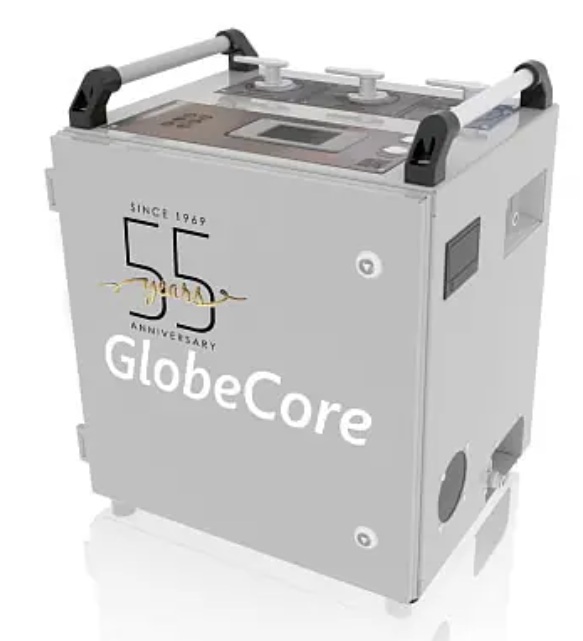

The TOR-8 tester is used to measure dissolved gases in insulating oils during the degassing process in degassing machines. Its main purpose is to accurately evaluate the efficiency of gas removal from transformer oil, allowing professionals to monitor the degassing rate and ensure proper oil treatment. The measurement process takes up to 10 minutes, and the device includes an integrated thermal printer for printing results. The TOR-8 is widely used by companies involved in the installation, repair, and operation of transformer oil systems, making it an essential tool for maintaining and servicing transformer equipment.

Transformer oil degassing is necessary for the removal of dissolved gases which improves the insulating properties of oil, as well as prevents corrosion and wear of power-generating equipment. TOR-8 instrument is used in the processes of removing dissolved gases from insulating oils (oil degassing) in degassing machines. Its main purpose is to facilitate measuring the efficiency of the degassing procedures performed by these machines. The use of this instrument makes it possible to accurately evaluate the gas removal rate for oil.

The instrument is widely used at installation, repair, and operation entities dealing with transformer oil processing. Owing to this instrument, professionals can easily and efficiently monitor the degassing process, which makes up an important part in the maintenance and operation of transformer equipment.

Principle of operation

The principle of the instrument's operation is based on recording a change in gas pressure inside a cylinder under vacuum when it is filled with a portion of oil. Knowing the volumes of the cylinder and the oil filled, the pressure values "�"�inside the cylinder before and after filling, it is possible to determine the volumetric gas content.

The residual gas content is measured during operation of the degassing machine.

Features

accurate measurement of residual gas content of transformer oil;
reliable operation;
convenient and robust housing;
the measuring process takes up to 10 minutes;
the possibility to print the results using an integrated thermal printer.

Applications:

FR3 dielectric fluid
Midel 7131 dielectric fluid
Silicone oil
Transformer oil

No. Parameter Value

1 Measuring cell volume, L 1.2

2 Oil sample volume, L 0.5 "" 0.7

3 Maximum pressure inside the instrument, Pa 0.3

4 Maximum leakage inside the instrument, Pa 26

5 Input pressure of oil, bar 0.3 "" 10

6 Temperature of tested oil, ºС 20 "" 90

7 Maximum power requirement, kW, not more than 1

8 Power supply parameters

(in standard form; otherwise "" upon request):

â-� voltage, V

â-� AC frequency, Hz

230

9 Overall dimensions, mm, not more than

"" length

"" height

"" width

330

300

275

10 Weight, kg, not more than 25

More products GLOBECORE

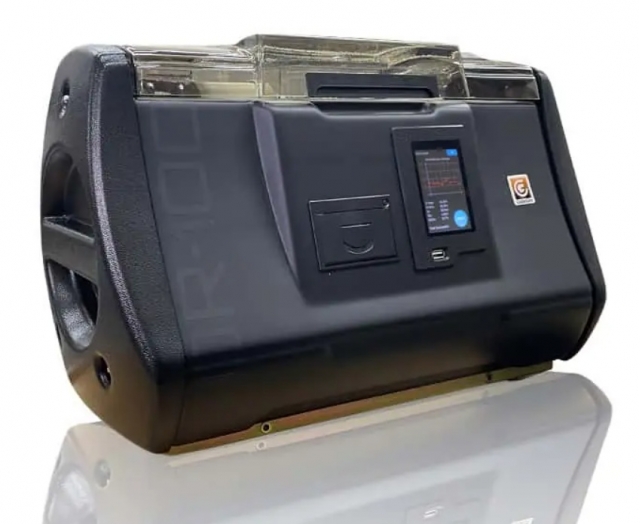

GLOBECORE TOR-100 OIL BREAKDOWN VOLTAGE TESTER 100KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"�kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 Î¼s) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery

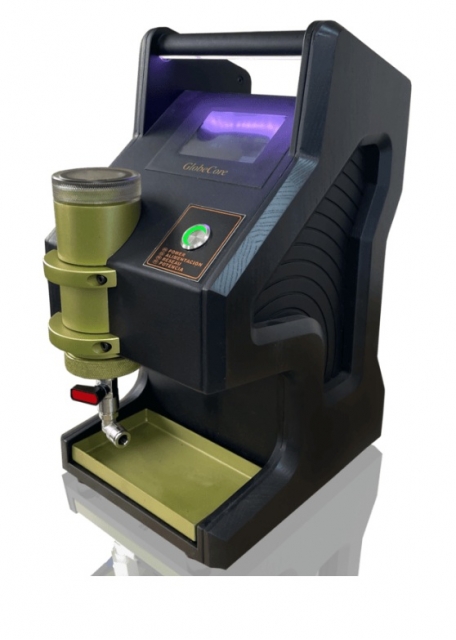

GLOBECORE TOR-1 MOISTURE METER FOR TESTING INSULATING TRANSFORMER OIL

• esigned for rapid and precise determination of the mass fraction of water in insulating oils, even at very low levels
• high measurement speed and accuracy make the TOR-1 an ideal solution for regular on-site monitoring of moisture content in transformer oils

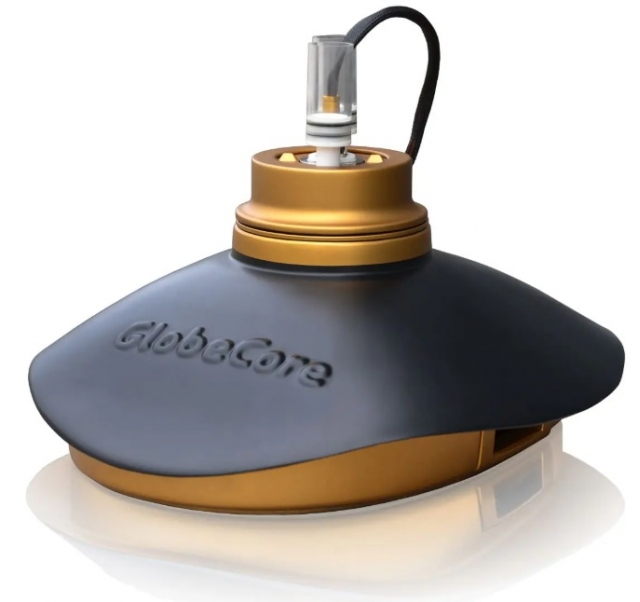

GLOBECORE TOR-3 DIELECTRIC OIL LOSS TANGENT DELTA TESTER

• designed to determine the dielectric loss tangent, specific resistivity, and permittivity of transformer oils and other dielectric fluids
• in accordance with IEC 60247-2004-02 (VDE-0380-2:2005_01), ASTM D924-08, and ASTM D1169-02
• fully automatic device
• equipped with the Tangent Service software

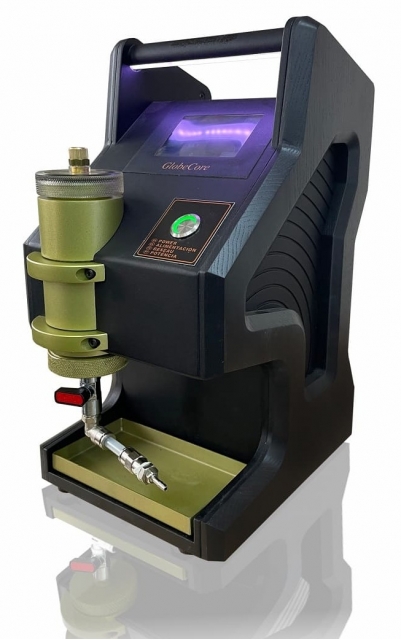

GLOBECORE TOR-2 HYDROGEN AND MOISTURE ANALYZER FOR TRANSFORMER OIL MONITORING

• designed to measure moisture and hydrogen content in mineral and ether-based insulating oils
• detection of moisture and hydrogen even in small quantities
• operation simplicity
• no consumables needed for measurements;
• the presence of other gases in the oil does not affect the reliability of measurements;
• simple calibration;
• maintenance-free

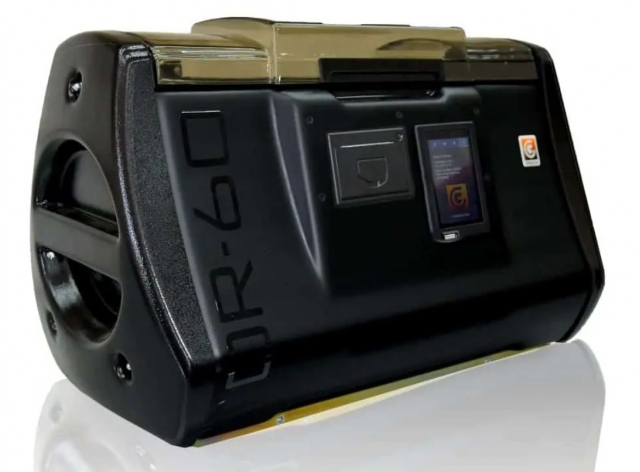

GLOBECORE TOR-60 OIL BREAKDOWN VOLTAGE TESTER 60KV

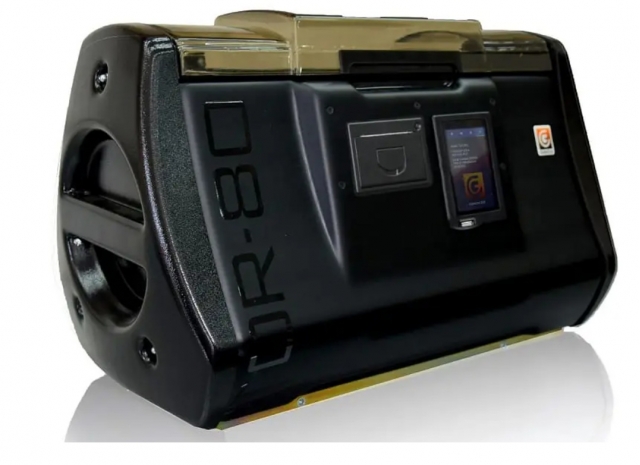

GLOBECORE TOR-80 OIL BREAKDOWN VOLTAGE TESTER 80KV

GLOBECORE TOR-8 TESTER FOR RESIDUAL GAS CONTENT OF INSULATING OIL IN TRANSFORMERS

• accurate measurement of residual gas content of transformer oil;
• reliable operation;
• convenient and robust housing;
• the measuring process takes up to 10 minutes;
• the possibility to print the results using an integrated thermal printer

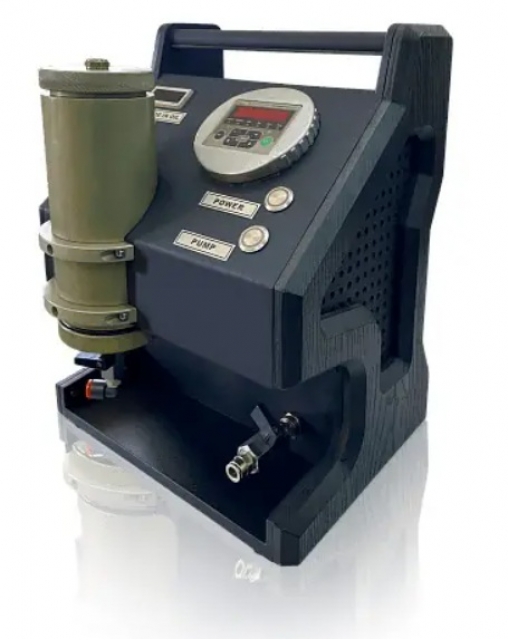

GLOBECORE TOR-6 TRANSFORMER OIL MOISTURE AND PARTICLES TESTER

• erforms high-precision measurements of moisture content and purity (contamination levels) in both mineral and ester-based oils.
• measures water activity (aw) from 0 to 1 with a precision of �±10"�% or �±10"�ppm at 20"�°C and records temperature
• The device assesses oil purity according to ISO 99 (ISO 4406:1999), SAE AS 4059, ISO 87 (ISO 4406:1987), and NAS 1638 standards.

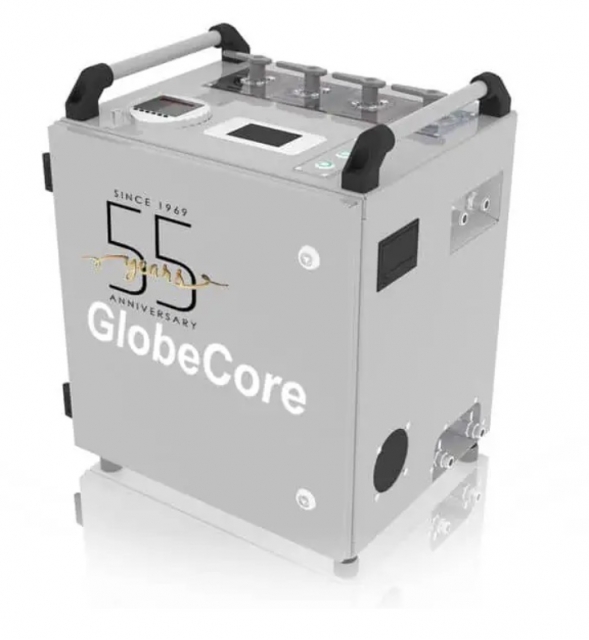

GLOBECORE TOR-7 UNIVERSAL TRANSFORMER OIL TESTER FOR MOISTURE, DISSOLVED GASES, SOLID PARTICLES, HYDROGEN

•
