GLOBECORE TOR-1 Moisture Meter for testing Insulating Transformer Oil

Code: TOR-1 TOR1 ULEI



Datasheet PDF, 6.02 Mb


Description

TOR-1 Oil Moisture Meter
The TOR-1 is a device designed for rapid and precise determination of the mass fraction of water in insulating oils, even at very low levels. Its high measurement speed and accuracy make the TOR-1 an ideal solution for regular on-site monitoring of moisture content in transformer oils, ensuring reliable control during operation. The device measures water activity and temperature, and calculates the absolute water content in ppm.

TOR-1 transformer oil tester is designed to detect the mass fraction of dissolved water in insulating mineral oils the viscosity of which does not exceed 70 cSt at the temperature of 50°C.

When operating this device, it is necessary to take into consideration that the tester is only a reference point for fast detection of moisture content; a final analysis requires contacting a certified laboratory.

In the best-case scenario, standard laboratory analyses take a day and require a great input of human and financial resources. The use of TOR-1 allows diagnosing the transformer oil as soon as possible and making a quick decision in the field near the transformer.

Components of TOR-1 instrument
The device combines all the devices necessary for simple and convenient operation:

  • LCD-panel to display the moisture content of tested oil;
  • intake container for tested oil;
  • moisture sensor to detect the mass fraction of moisture in lubricating and insulating oils;
  • printer for paper output of test results.


Principle of operation
The measurement of moisture in oil is similar to that of moisture in air. The water content in oil can be described as an absolute value in ppm or a relative value of aw:

ppm means the ratio between the weight of water and the weight of oil;
aw means the actual moisture content as a percentage of the oil fully saturated with moisture.
The value aw = 0 stands for moisture-free oil, while aw = 1 stands for the oil fully saturated with moisture.

The instrument measures aw using a capacitance sensor that ensures a long-term stability and an excellent resistance to contamination. The measured physical quantities include active water (aw) and temperature (T). Using these quantities, the express tester calculates the moisture content (ppm) in mineral transformer oil. The water content in non-mineral transformer oils and lubricating oils can be calculated by entering specific parameters of these oils. Measured and calculated values are available on two freely scalable and configurable analog outputs.

Features
  • compactness;
  • ease of operation: in order to change the sample, it is enough to change the removable container and to press the Start button for starting the measurement;
  • multifunctionality;
  • it operates without a personal computer;
  • it can be used for oil testing in the field near the transformer due to a sufficient degree of protection (metal vandal-resistant buttons, sensitive element protection, integrated protection of electrical equipment) and a stabilized power supply;
  • the measurement results can be printed out using an integrated printer.

Application:
  • Diesel fuel
  • Hydraulic oil
  • Industrial oil
  • Transformer oil

Technical Specs
â„-Parameter Value

1Operating range, aw (active water (aw))0"¦1

2Operating range of dissolved water content measurement, ppm
0"¦.500

3Precision at 20 °C Â±0.02 aw (0"¦0.9 aw) ±0.03 aw (0.9"¦1 aw)

4Temperature measurementyes

5Operating medium temperature, °С0"¦55

6Required power, W 10

7Single phase 50Hz AC power supply voltage, V 220

8Dimensions, mm, not more than
"" length

"" width

"" height


190

255

365

9Weight, kg, not more than6

Video Presentation of TOR-1 on Youtube











More products GLOBECORE

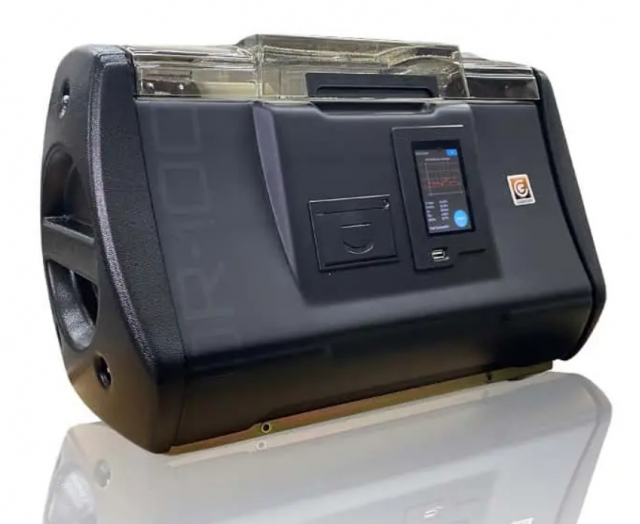

GLOBECORE TOR-100 OIL BREAKDOWN VOLTAGE TESTER 100KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"¯kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery

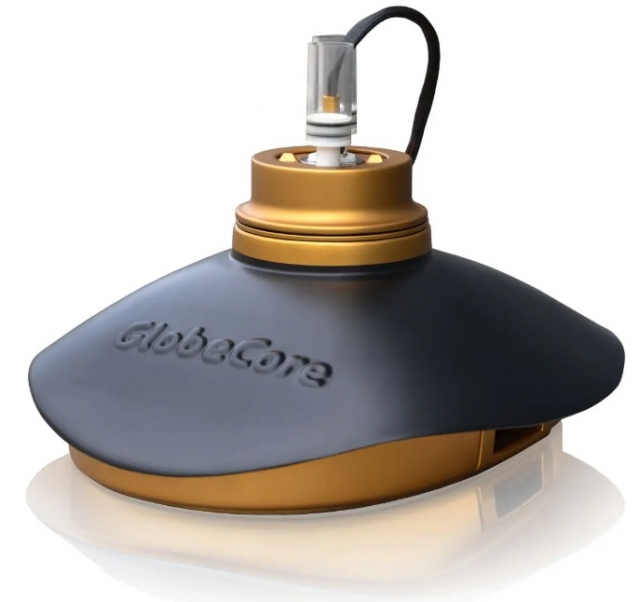

GLOBECORE TOR-3 DIELECTRIC OIL LOSS TANGENT DELTA TESTER

• designed to determine the dielectric loss tangent, specific resistivity, and permittivity of transformer oils and other dielectric fluids
• in accordance with IEC 60247-2004-02 (VDE-0380-2:2005_01), ASTM D924-08, and ASTM D1169-02
• fully automatic device
• equipped with the Tangent Service software

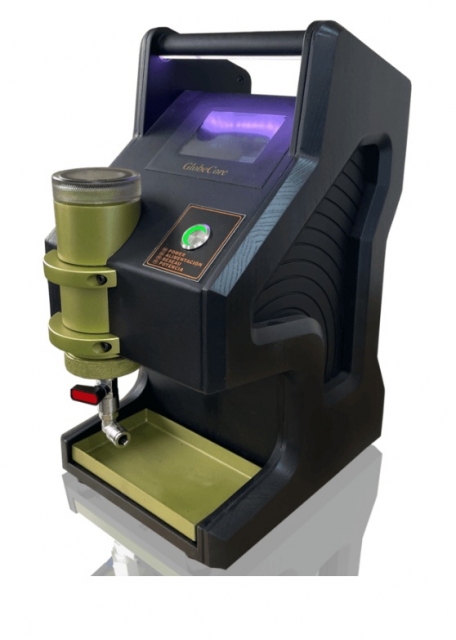

GLOBECORE TOR-1 MOISTURE METER FOR TESTING INSULATING TRANSFORMER OIL

• esigned for rapid and precise determination of the mass fraction of water in insulating oils, even at very low levels
• high measurement speed and accuracy make the TOR-1 an ideal solution for regular on-site monitoring of moisture content in transformer oils

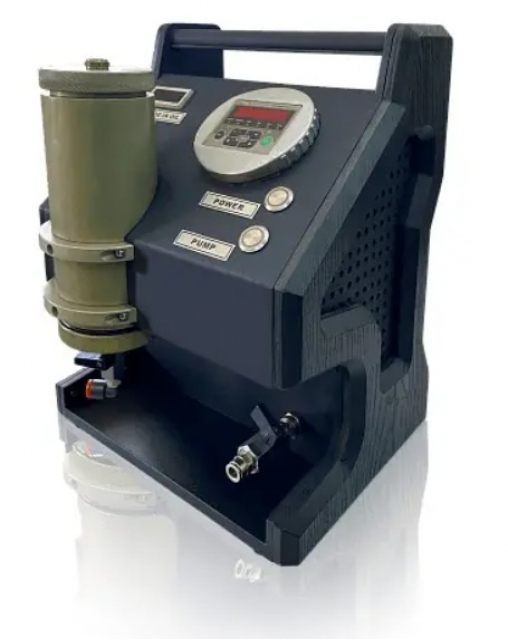

GLOBECORE TOR-6 TRANSFORMER OIL MOISTURE AND PARTICLES TESTER

• erforms high-precision measurements of moisture content and purity (contamination levels) in both mineral and ester-based oils.
• measures water activity (aw) from 0 to 1 with a precision of ±10"¯% or ±10"¯ppm at 20"¯Â°C and records temperature
• The device assesses oil purity according to ISO 99 (ISO 4406:1999), SAE AS 4059, ISO 87 (ISO 4406:1987), and NAS 1638 standards.

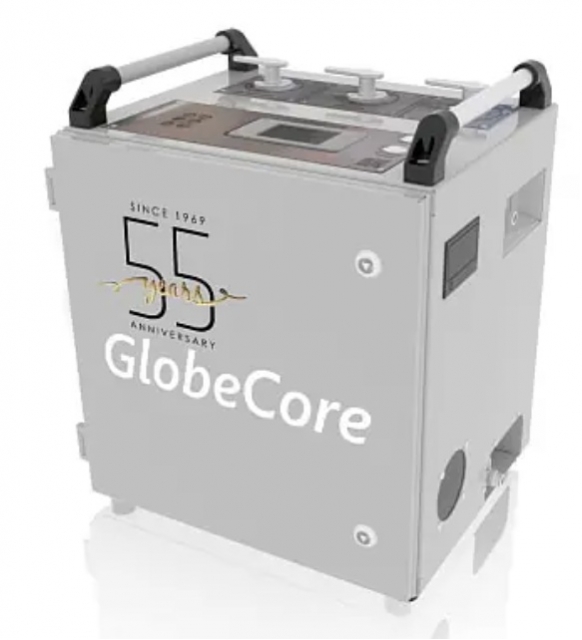

GLOBECORE TOR-8 TESTER FOR RESIDUAL GAS CONTENT OF INSULATING OIL IN TRANSFORMERS

• accurate measurement of residual gas content of transformer oil;
• reliable operation;
• convenient and robust housing;
• the measuring process takes up to 10 minutes;
• the possibility to print the results using an integrated thermal printer


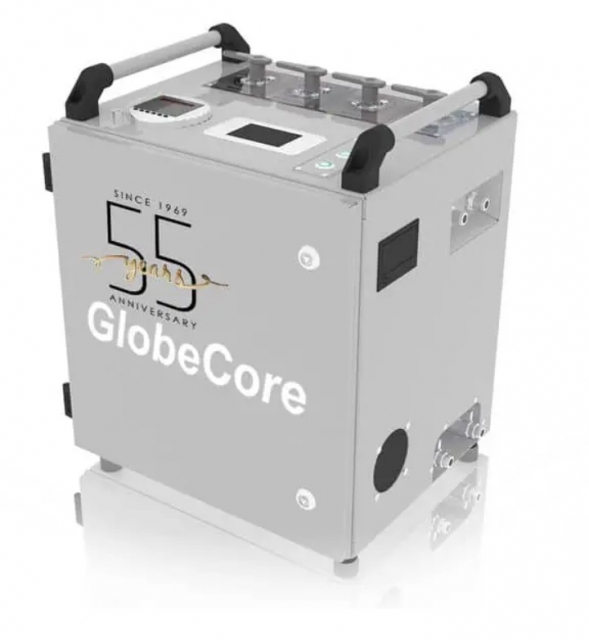

GLOBECORE TOR-7 UNIVERSAL TRANSFORMER OIL TESTER FOR MOISTURE, DISSOLVED GASES, SOLID PARTICLES, HYDROGEN

•

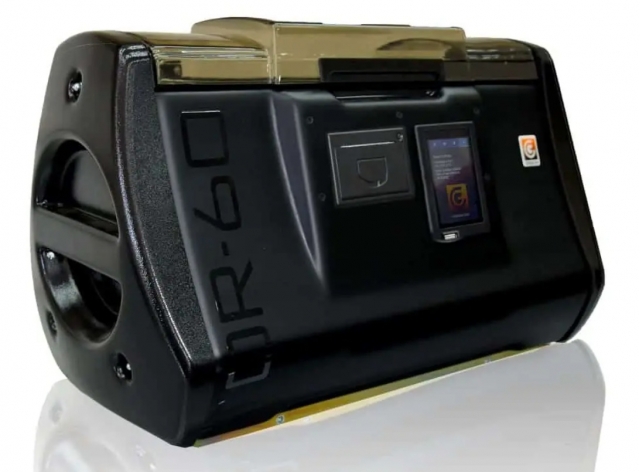

GLOBECORE TOR-60 OIL BREAKDOWN VOLTAGE TESTER 60KV

• designed for automated, accurate measurement of the dielectric strength (breakdown voltage up to 60"¯kV) of transformer oil and other dielectric fluids according to IEC 60156, ASTM D877, and ASTM D1816
• automated and accurate measurement of breakdown voltage up to 60 kV;
• instantaneous (4 μs) disconnection of the test voltage upon breakdown;
• can work autonomously or in a network with transferring results to a PC
• generating reports, plotting graphs and printing results
• Optional Battery

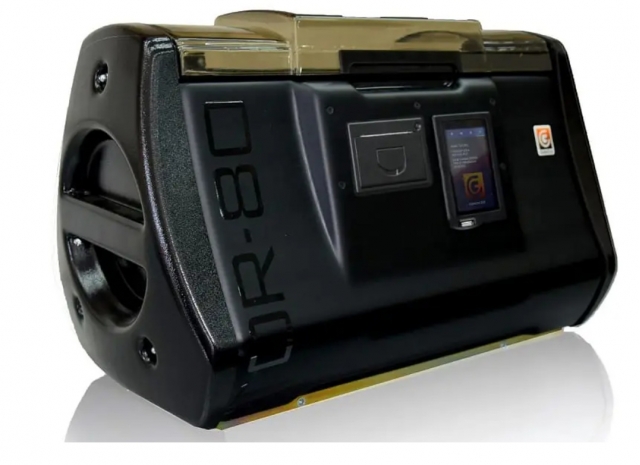

GLOBECORE TOR-80 OIL BREAKDOWN VOLTAGE TESTER 80KV
