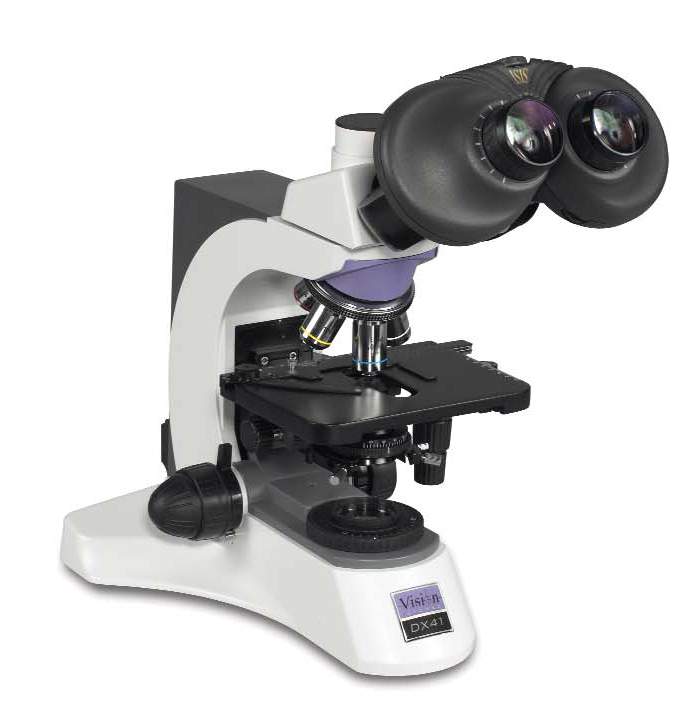

Microscop binocular optic de laborator Vision DX41

Cod: Vision DX41



Brosura produs PDF, 0.24 Mb


Descriere

Routine Laboratory Microscope

X40 - x1000 magnification range

Brightfield, polarized light, phase contrast, darkfield and fluorescence

Patented eyepieceless optics reduce operator fatigue (optional)

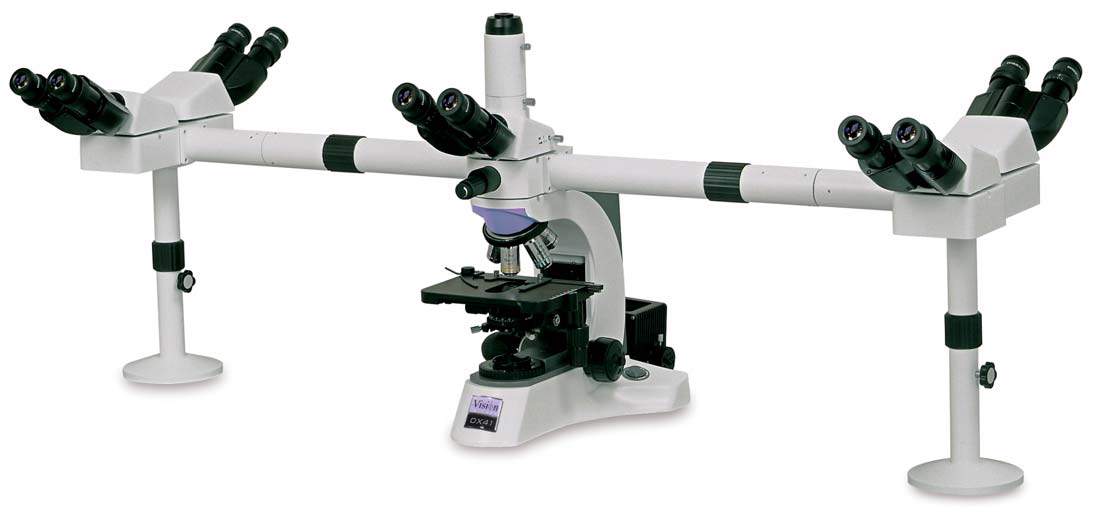

Multi-viewing attachment for training (optional)

Outstanding optical performance through infinity corrected objectives

Range of illumination options, including phase contrast, darkfield and fluorescence

System versatility, with a large range of options and accessories

Compact, stable design maximises available bench space

Optional patented optical technology provides increased eye relief, significantly reducing operator fatigue





Overview

Designed for all routine laboratory applications, the DX41 is a versatile companion offering performance and flexibility for all routine laboratory applications with the option of Vision Biomed's patented Expanded-Pupil eyepieces for superior ergonomic performance.

As a system microscope, Vision Biomed's DX41 is particularly well suited to clinical and research microscopy applications. Infinity corrected optics provide outstanding image contrast and resolution, whilst a modular design allows for the easy addition of options and accessories with a range of illumination techniques, including fluorescence.







Features and Benefits

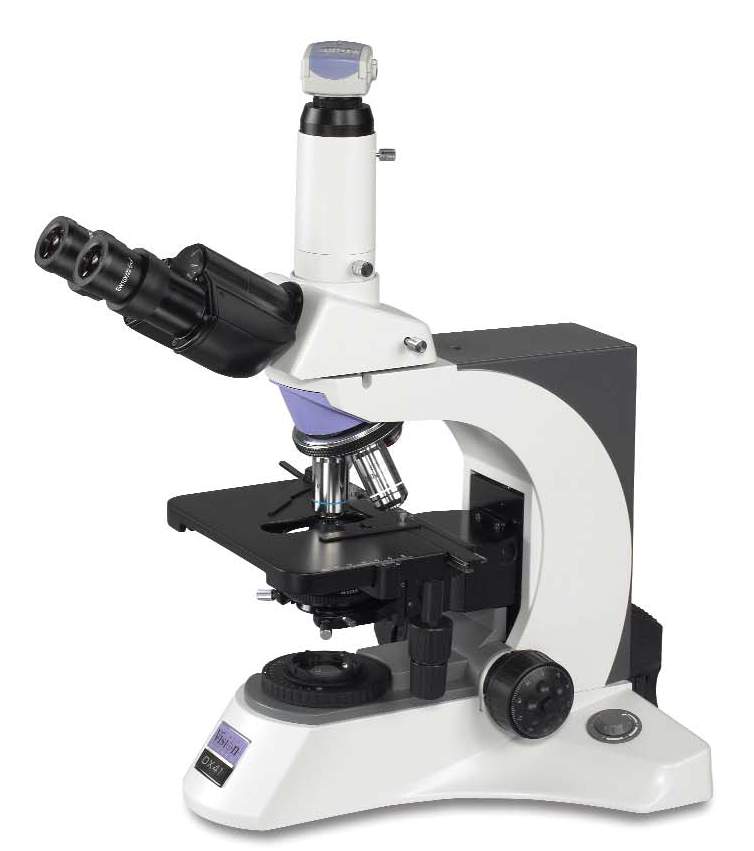

  • Observation tube includes an interpupillary adjustment of 48 - 75mm with an inclination of 30º and a compensation free trinocular head.
  • Köhler Illumination provides bright even illumination of the object field. Standard with a 50W pre-centred Halogen lamp for transmitted light.
  • Easily configured with a variety of optics and contrast techniques for the clinical laboratory, including fluorescence.
  • A wide variety of condensers, including a phase turret and choice of darkfield condensers in available, each providing optimum contrast.
