Sistem microscopic digital masura doua axe fara contact Vision Kestrel Elite

• Exceptionally large field of view, up to 205mm wide
• 36:1 optical zoom permits detailed investigation of features (maximum magnification 60x*)
• Manual or automatic focus
• Full array of annotation tools, including text, arrows, markers and measurements
• Perform simple 2D measurements (point-to-point, circles, angles, projections, areas and circumferences)
• Save captured images in JPEG, BMP or TIFF format
• CAD file import option, allowing inspection with CAD overlay



• Routine Microscope
• x40 - x1000 magnification range
• Brightfield, polarized light, phase contrast and darkfield
• Excellent ergonomics for optimum operator comfort
• Outstanding optical performance
• Range of illumination options, including phase contrast, darkfield and simple polarized light
• Compact, stable design with infinity optical system



• Non-Contact Measuring Systems
• For inspection and measurement of 3-dimensional parts
• High repeatable accuracy 3-axis non-contact measurements
• Patented optical image clearly defines edges, offering superb resolution and contrast
• Powerful and intuitive microprocessors deliver simple, fast results
• Optional video edge detection for higher throughput measurements
• Wide range of system configurations and options, including fully automated CNC control

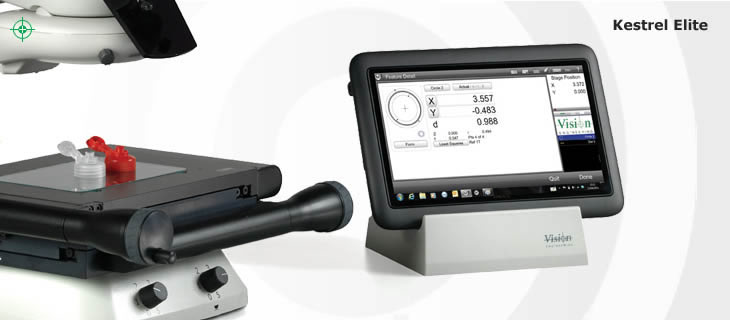

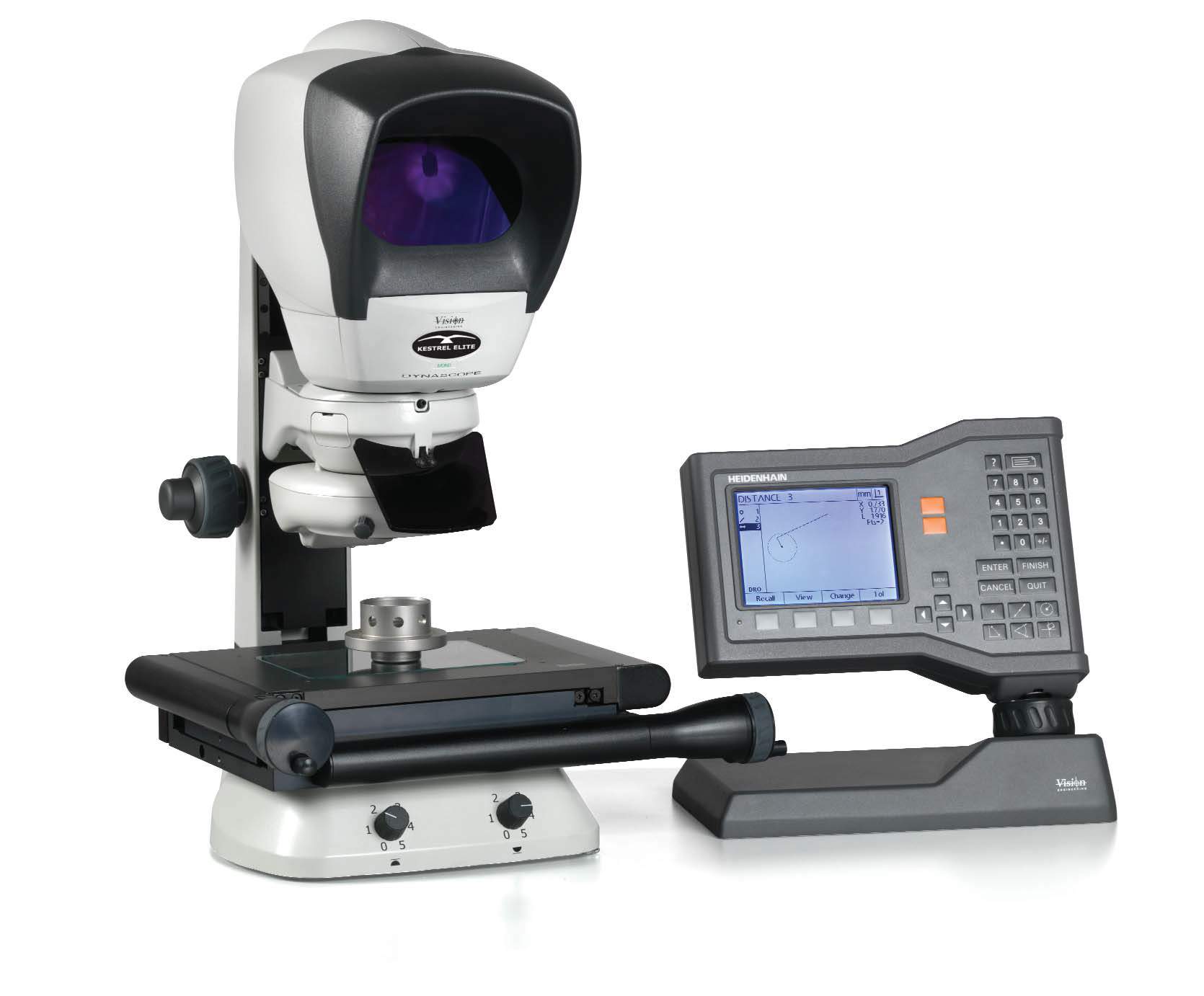

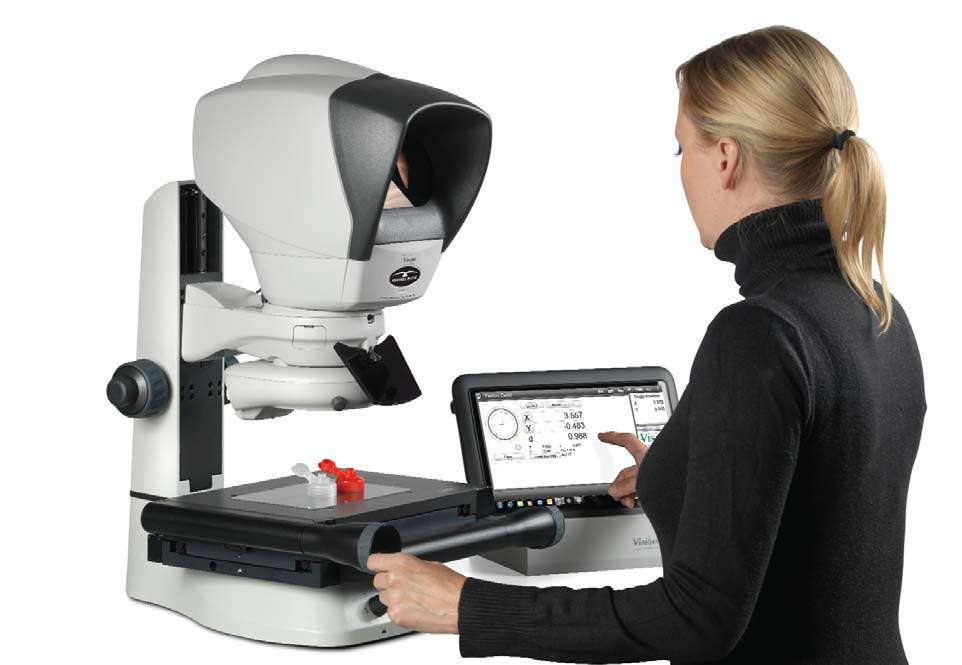

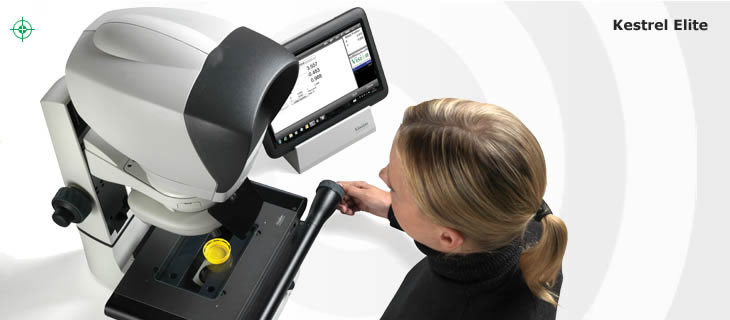

• Non-Contact Measuring Microscope for precision measurement & inspection
• 2-axis non-contact measurement, ideal for measuring
• 2-D features of small, intricate parts
• Patented optical image clearly defines edges, offering superb resolution and contrast
• High accuracy, low investment system
• Choice of rugged and intuitive microprocessor, or state-of-the-art touch-screen tablet PC



• Simple, compact, accurate
• With space at a premium, Swift doesn't take up much room, yet can make a big difference to your production quality.
• Rugged in construction, the unit has been designed to cope with the demands of a busy production environment.
• 2-axis video measuring system, ideal for measuring 2-D features of small, intricate parts
• Low capital investment, high accuracy measurement system
• Next generation 'touch-to-measure' measurement software
• Modular construction allows future upgrade option of combined video and microscope measurement technologies



• Wide range of magnification x2.1 - x120
• Patented stereo eyepieceless optical technology provides superb resolution and contrast
• Easy hand-to-eye coordination resulting in increased throughput, accuracy and reduced scrap
• Long-life, true color LED illumination for shadow-free viewing of
• complex surfaces



• Precision optics deliver high resolution, flat field and high contrast images with long working distances and large depth of field
• 22mm Field Number (standard) eyepieces with eyepiece dioptre setting
• Interpupillary distance adjustment (52 to 75mm)
• Affordable stereo zoom microscope with first-class performance
• x8 - x50* (6.3:1 zoom ratio) click-stop stereo zoom magnification (x200 max.)
• Wide range of options and configurations
• Extra long working distance (115mm*)



• Comprised of a Mantis Elite optical head, with factory integrated and sealed high resolution† USB2.0 camera
• Permanently engaged digital camera permits simultaneous optical and digital viewing
• Image projection capability ideal for training purposes
• USB2.0 connectivity with easy-to-use PC-based software
• Simple image capture software allows for storage, reference and electronic communication
• Variety of image capture formats including: .bmp, .jpg and .png



• Two measurement systems in one
• 2-axis dual video and optical measuring system, ideal for measuring 2-D features of small, intricate parts
• Combined video and microscope measurement technologies
• Seamlessly switch between video and microscope measurement
• Patented optical ergonomic microscope offers high resolution surface inspection
• Next generation 'touch-to-measure' measurement software
• Low capital investment, high accuracy measurement systems



• Low cost without sacrificing quality
• Robust and easy to use
• High quality, entry-level stereo zoom microscope
• x10 - x45* stereo zoom magnification (x180 max.)
• Wide range of stand options and configurations
• Quality optical performance, without compromise
