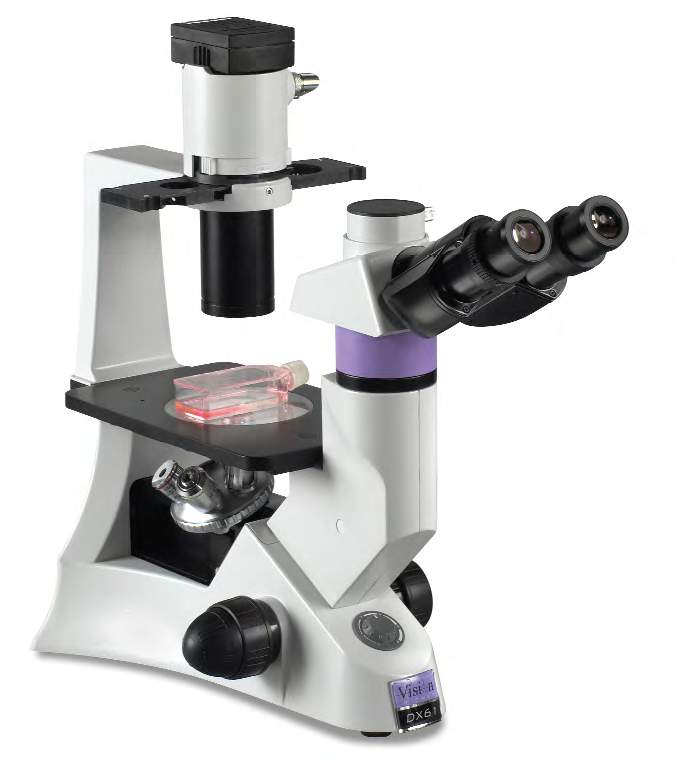

Microscop optic inversat de laborator Vision DX61

Cod: Vision DX61




Brosura produs PDF, 0.11 Mb


Descriere

  • Routine Laboratory Inverted Microscope
  • X40 - x400 magnification range
  • Brightfield, phase contrast and fluorescence
  • Patented eyepieceless optics reduce operator fatigue (optional)
  • Outstanding optical performance
  • Infinity optical system
  • Ergonomically optimised and compact design
  • Optional ISIS Expanded-Pupil eyepieces increase eye-relief



Overview

Vision Biomed has developed the DX61 with the operator and working environment in mind. The compact, stable design is equipped to accept a wide range of accessories, including the option of Vision Biomed's patented Expanded-Pupil eyepieces.



Designed for routine laboratory use, the DX61 is a simple to use microscope and is particularly suited to tissue culture applications, with infinity corrected optics and the option of a wide range of accessories. Observation modes include brightfield, fluorescence and phase contrast, with a pre-centred phase contrast slider making operation straightforward.



Versatility

  • The stage is designed to accept a wide range of containers. Stage adapters are also available to accept a variety of vessels and well plates.



Ergonomics

  • Low positioned stage and focussing controls promote fatigue-free operation.
  • A glass insert in the stage increases the visibility of the objectives.



Patented Expanded-Pupil Eyepieces

  • Vision Biomed's optional patented Expanded-Pupil eyepieces offer users advanced ergonomics by providing significant eye relief compared to conventional binocular microscopes.
