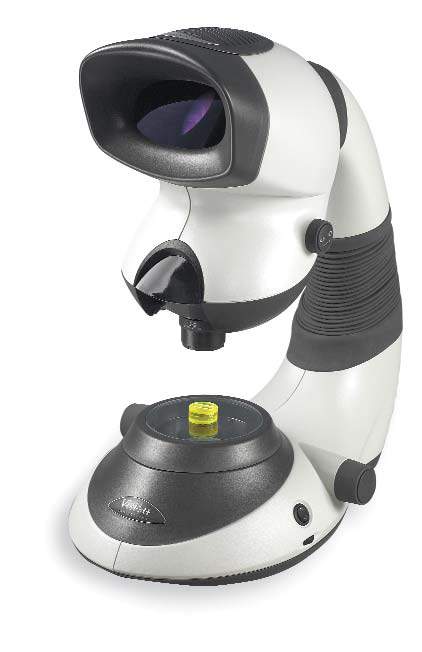

Mantis Elite is a high performance stereo microscope, offering superb optical performance with magnification options up to x20, making it a perfect alternative to more traditional stereo microscopes.

Large fields of view and generous working distances permit a wide range of inspection, preparation and manipulation tasks, all with exceptional hand-eye coordination.

High value, high specification patented design with superb optical performance
x2 - x20 magnification options with quick change turret allows users to switch between low magnification inspection and high magnification fine detail tasks
Patented eyepieceless optics maximize head freedom providing superb ergonomics and minimal eye fatigue
Superior ergonomics for improved productivity and increased output
Superb hand-eye coordination for inspection and manipulation tasks
Bright white, true color, LED illumination providing up to 10,000 hours of shadow-free viewing
Long working distance and large field of view for easy sample manipulation and rework

Accesorii standard

Lens protection caps
Dust cover
Replacement LED array

Optiuni recomandate

Universal Stand

Mantis Compact, with counter-balanced universal stand, for flexibility and ease of use.

Articulated Arm

Designed specifically for applications requiring

extended reach, without compromising stability.

Bench Stand

High stability bench stand with integral focus, dimmable substage illumination.

Floating Stage

Provides smooth and sensitive control allowing for samples to be accurately inspected. For use with bench stand only.

UV Lighting

For UV inspection applications and fast and accurate fault detection.

Floor Stand

Ideal for inspection where subjects are immobile or require a standing position. For use in conjunction with articulated arm. Lift, swing, tilt and rotate

capabilities.

Secondary Link Arm

A secondary link increases total reach of articulated arm to 33.3" (847.5mm) and provides added flexibility and maneuverability

Episcopic Illuminator

Through-the-lens illumination for the inspection of bore holes and complex internal/external features. Iris control for precise light positioning.
