Sistem microscopic video masura bidimensional Vision Swift

• Routine Laboratory Inverted Microscope
• X40 - x400 magnification range
• Brightfield, phase contrast and fluorescence
• Patented eyepieceless optics reduce operator fatigue (optional)
• Outstanding optical performance
• Infinity optical system
• Ergonomically optimised and compact design
• Optional ISIS Expanded-Pupil eyepieces increase eye-relief



• Non-Contact Measuring Systems
• For inspection and measurement of 3-dimensional parts
• High repeatable accuracy 3-axis non-contact measurements
• Patented optical image clearly defines edges, offering superb resolution and contrast
• Powerful and intuitive microprocessors deliver simple, fast results
• Optional video edge detection for higher throughput measurements
• Wide range of system configurations and options, including fully automated CNC control

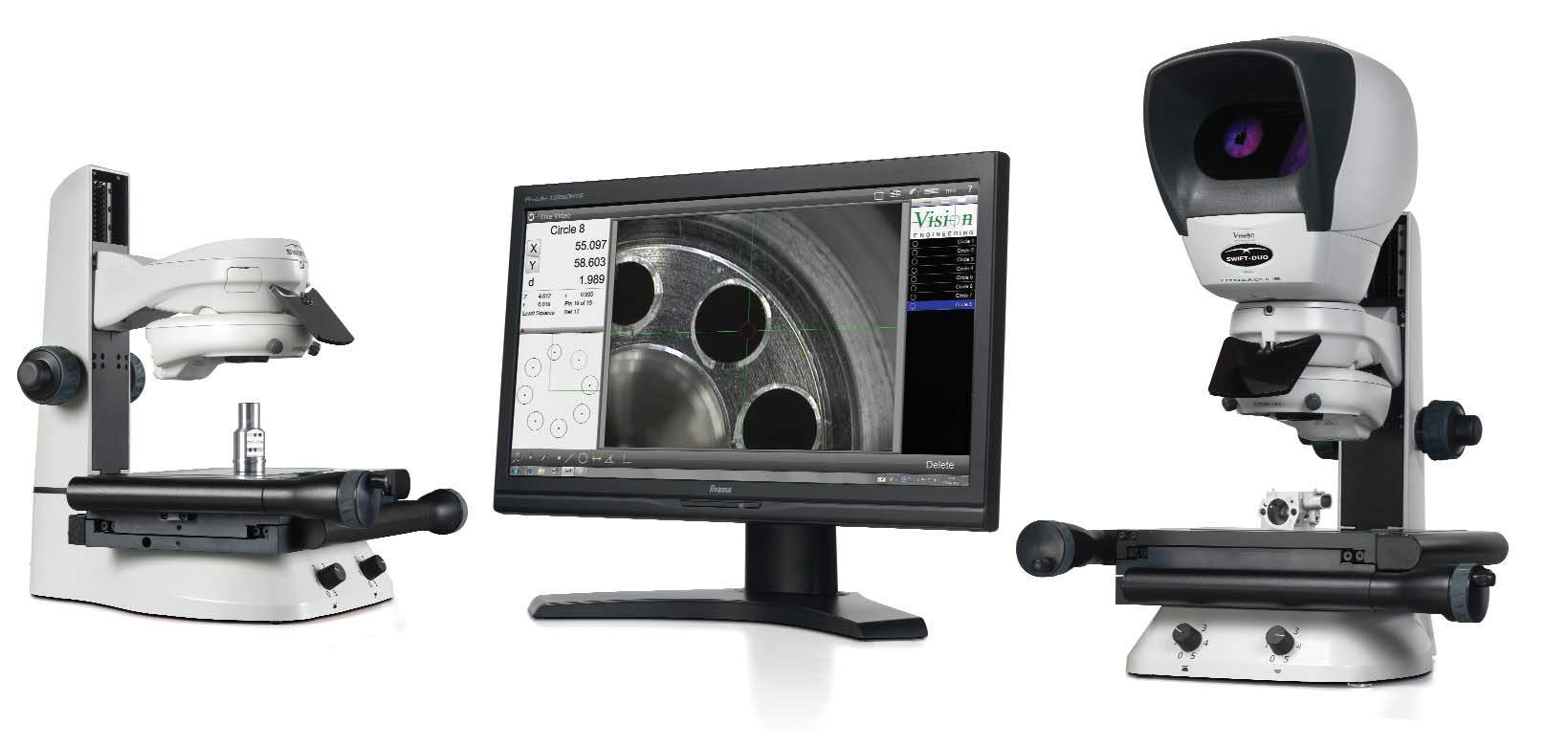

• Two measurement systems in one
• 2-axis dual video and optical measuring system, ideal for measuring 2-D features of small, intricate parts
• Combined video and microscope measurement technologies
• Seamlessly switch between video and microscope measurement
• Patented optical ergonomic microscope offers high resolution surface inspection
• Next generation 'touch-to-measure' measurement software
• Low capital investment, high accuracy measurement systems



• Routine Microscope
• x40 - x1000 magnification range
• Brightfield, polarized light, phase contrast and darkfield
• Excellent ergonomics for optimum operator comfort
• Outstanding optical performance
• Range of illumination options, including phase contrast, darkfield and simple polarized light
• Compact, stable design with infinity optical system



• Simple, compact, accurate
• With space at a premium, Swift doesn't take up much room, yet can make a big difference to your production quality.
• Rugged in construction, the unit has been designed to cope with the demands of a busy production environment.

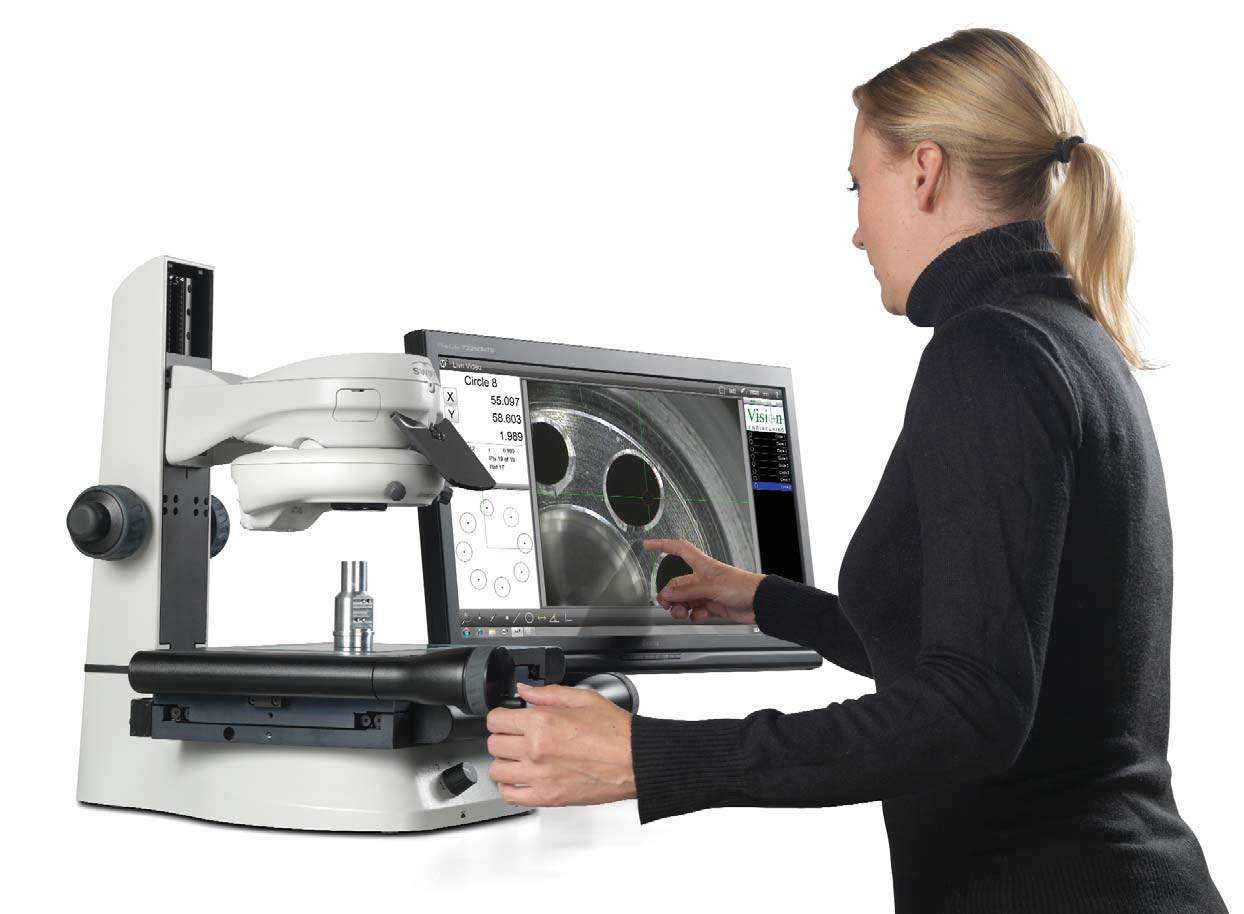

• 2-axis video measuring system, ideal for measuring 2-D features of small, intricate parts
• Low capital investment, high accuracy measurement system

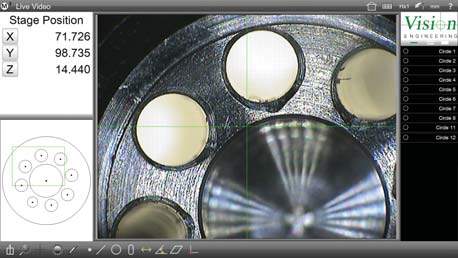

• Next generation 'touch-to-measure' measurement software
• Modular construction allows future upgrade option of combined video and microscope measurement technologies



• Precision optics deliver high resolution, flat field and high contrast images with long working distances and large depth of field
• 22mm Field Number (standard) eyepieces with eyepiece dioptre setting
• Interpupillary distance adjustment (52 to 75mm)
• Affordable stereo zoom microscope with first-class performance
• x8 - x50* (6.3:1 zoom ratio) click-stop stereo zoom magnification (x200 max.)
• Wide range of options and configurations
• Extra long working distance (115mm*)



• Low cost without sacrificing quality
• Robust and easy to use
• High quality, entry-level stereo zoom microscope
• x10 - x45* stereo zoom magnification (x180 max.)
• Wide range of stand options and configurations
• Quality optical performance, without compromise



• CMO (Common Main Objective) stereo microscopes
• High optical quality CMO stereo microscope
• Precision optics deliver high resolution, flat field and high contrast images with long working distances and large depth of field
• SX80: x8 - x64 standard magnification range (x256 max.)
• SX100: x8 - x80 standard magnification range (x320 max.)
• Modular systems for specific applications



• Routine Metallurgical Microscope
• x40 - x400 magnification range
• Brightfield and polarized light
• Optics offer superb image contrast and resolution
• Brightfield and polarized light illumination techniques
• Range of image capture options for documentation, analysis and reporting
• Compact stable design with infinity optical system



• Non-Contact Measuring Microscope for precision measurement & inspection
• 2-axis non-contact measurement, ideal for measuring
• 2-D features of small, intricate parts
• Patented optical image clearly defines edges, offering superb resolution and contrast
• High accuracy, low investment system
• Choice of rugged and intuitive microprocessor, or state-of-the-art touch-screen tablet PC
